Heating and Air Conditioning

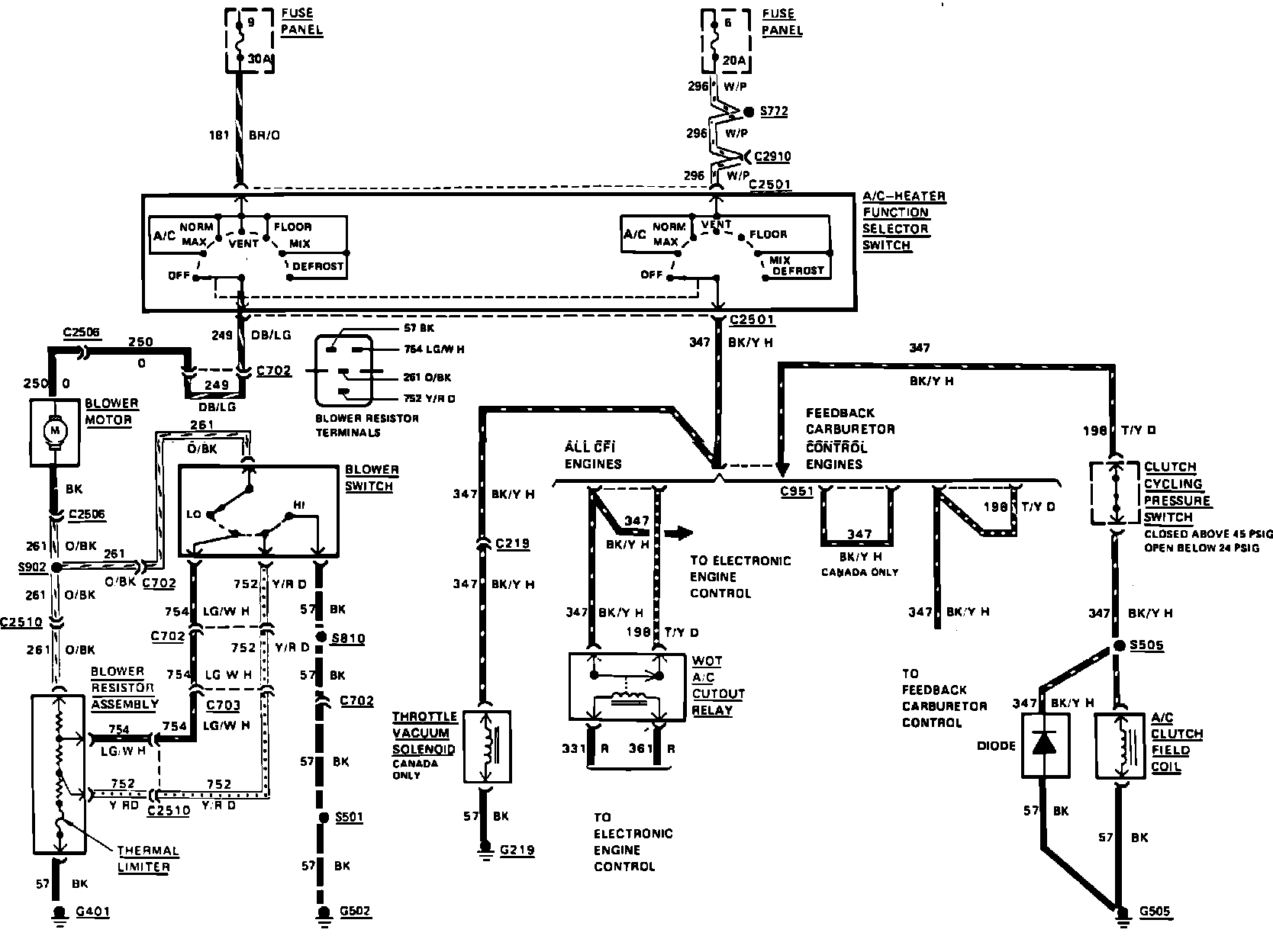

Fig. 8 Air Conditioning & Heater Wiring Circuit. 1984 Crown Victoria & Grand Marquis (Less Automatic Temperature Control):
