Home >> Mercury >> 1984 >> Colony Park V8-302 5.0L VIN F TBI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> With Conventional Stereo Radio

With Conventional Stereo Radio

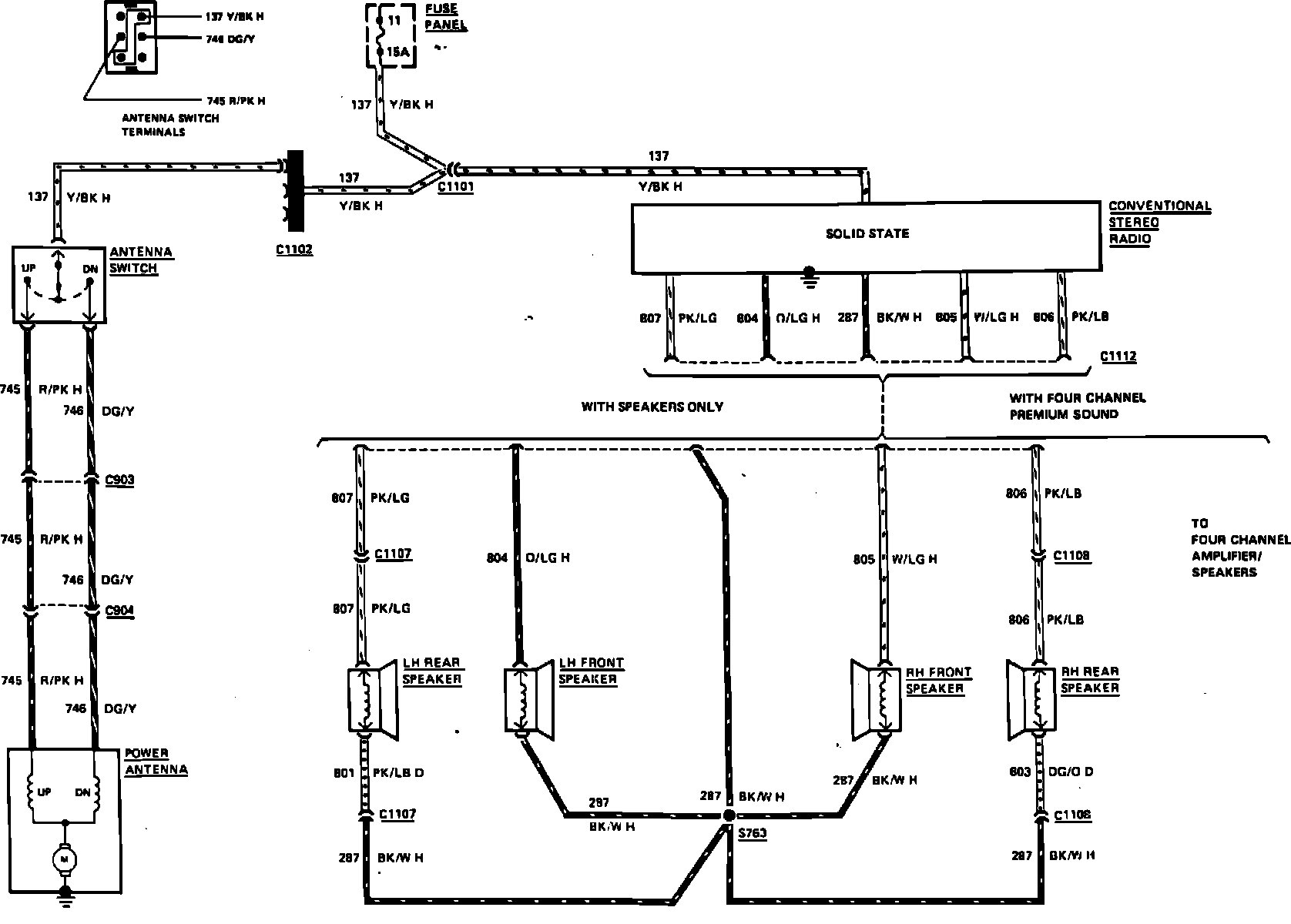

Fig. 56 Radio & Speaker Wiring Circuit. 1984 Crown Victoria & Grand Marquis With Conventional Stereo Radio:
