Reading Diagnostic Trouble Codes
>>
Quick Tests
>>

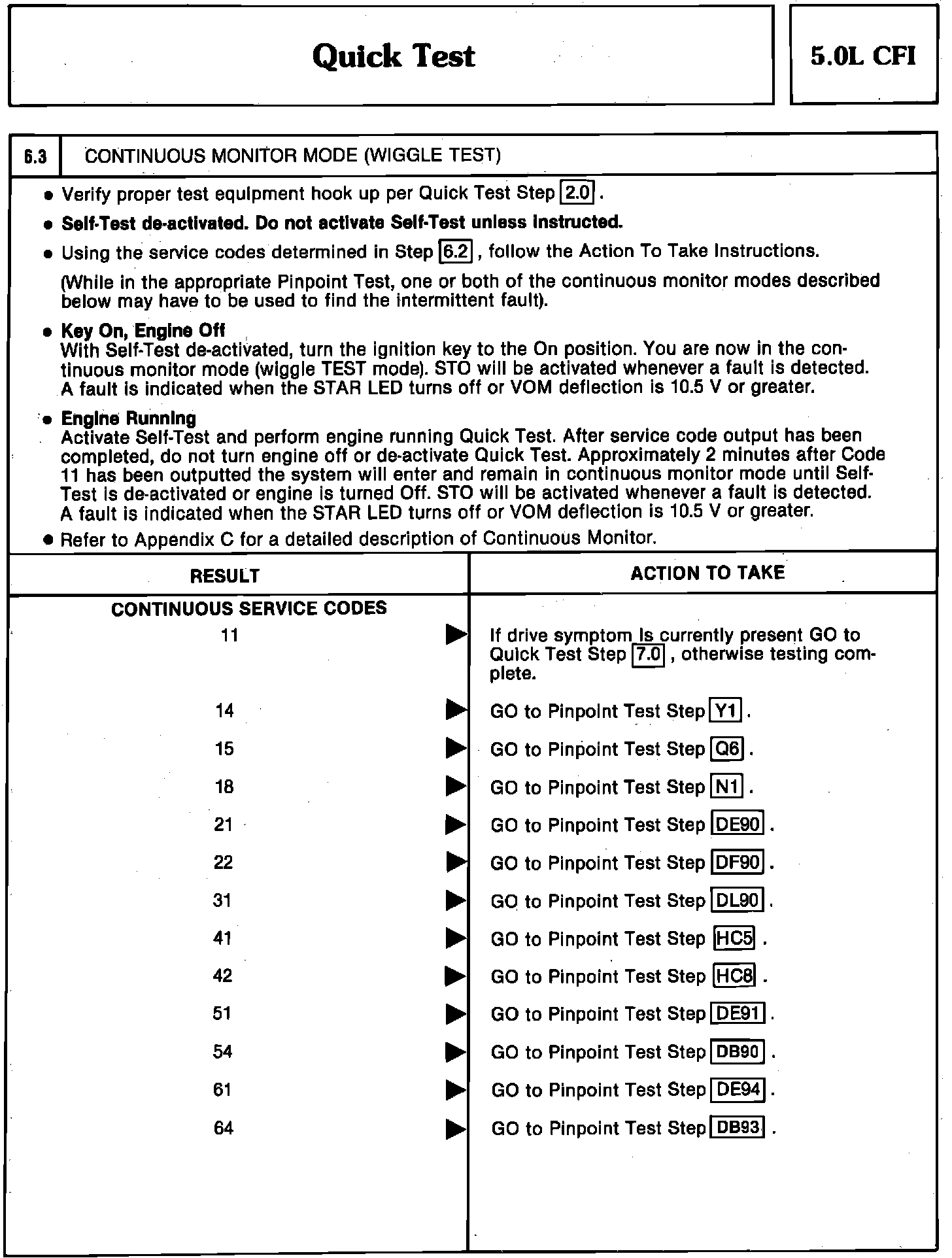

6.3 - Continuous Monitor Mode (Wiggle Test) (Codes)
6.3 - Continuous Monitor Mode (Wiggle Test) (Codes)
Continuous Monitor Mode And Service Codes 11 - 64 (5.0L CFI):
*** UPDATED BY TSB #84-2-14
