Home >> Mercury >> 1984 >> Capri V8-302 5.0L CFI HO >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> System Diagram

System Diagram

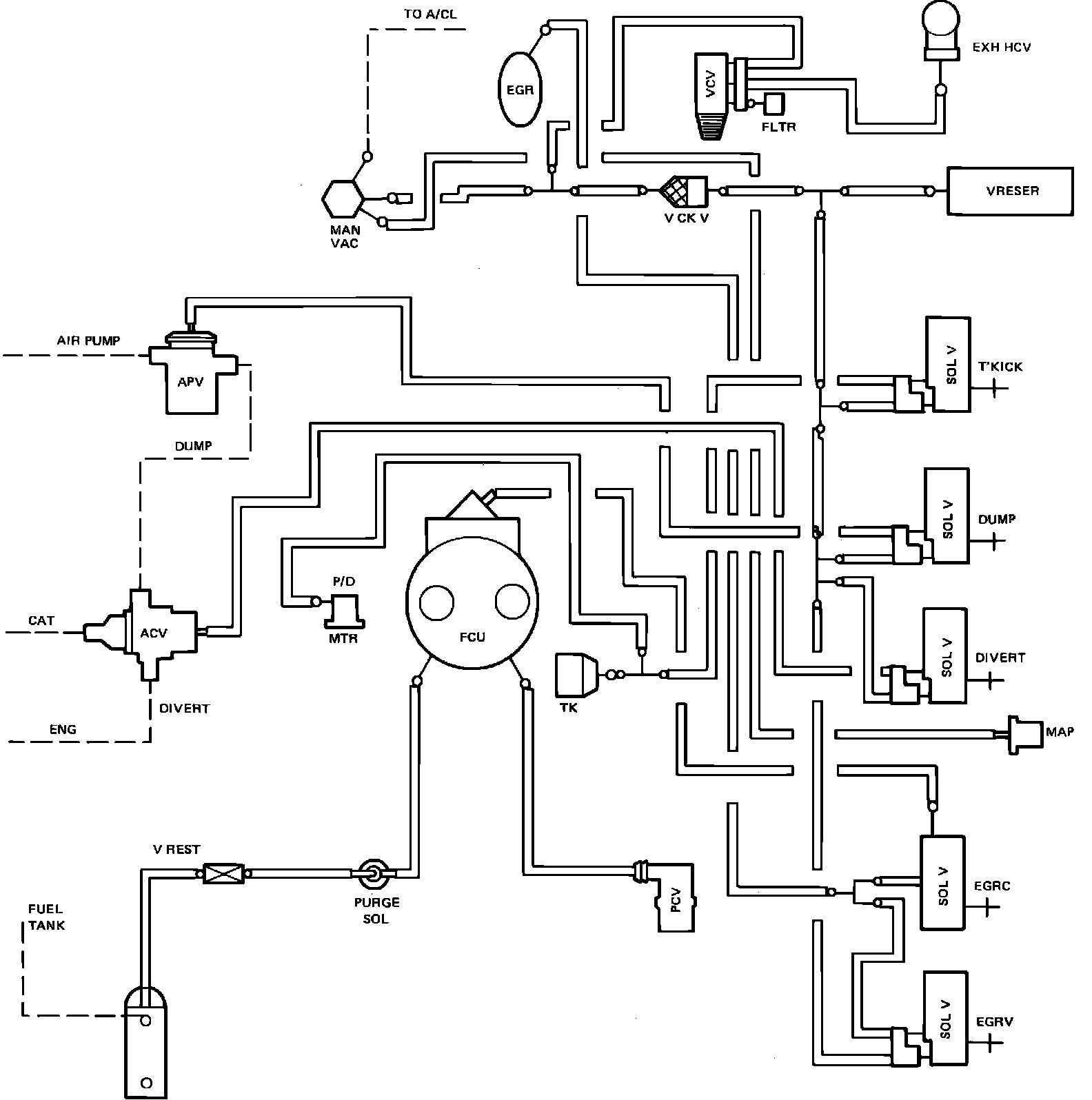

Fig. 49 EEC-IV vacuum Hose Routing. W/CFI:
