Gauges and Indicator Wiring Circuit

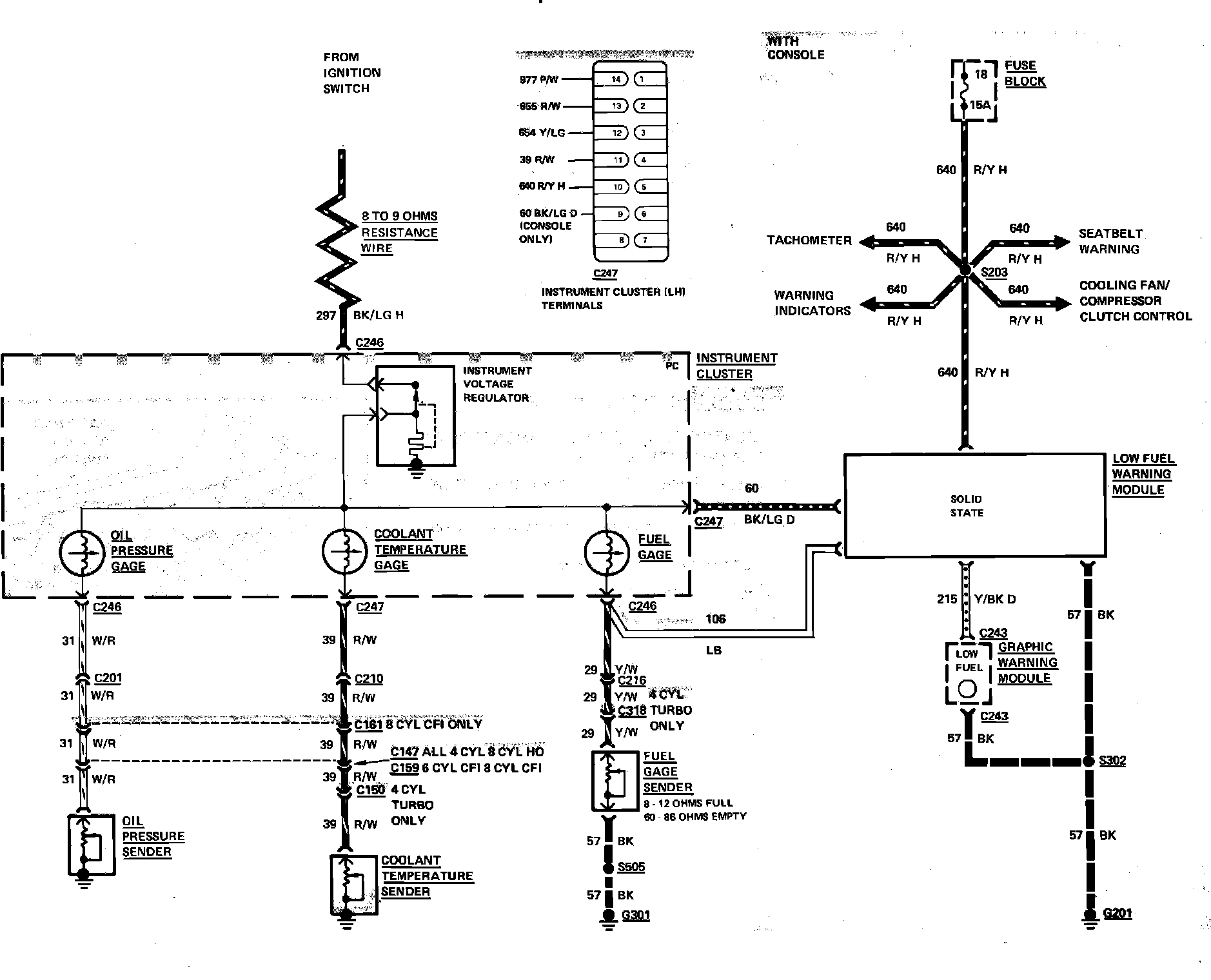

Fig. 34 Gauges & low fuel warning wiring circuit. 1984 Capri & Mustang:
