Instrument Panel and Warning Indicators

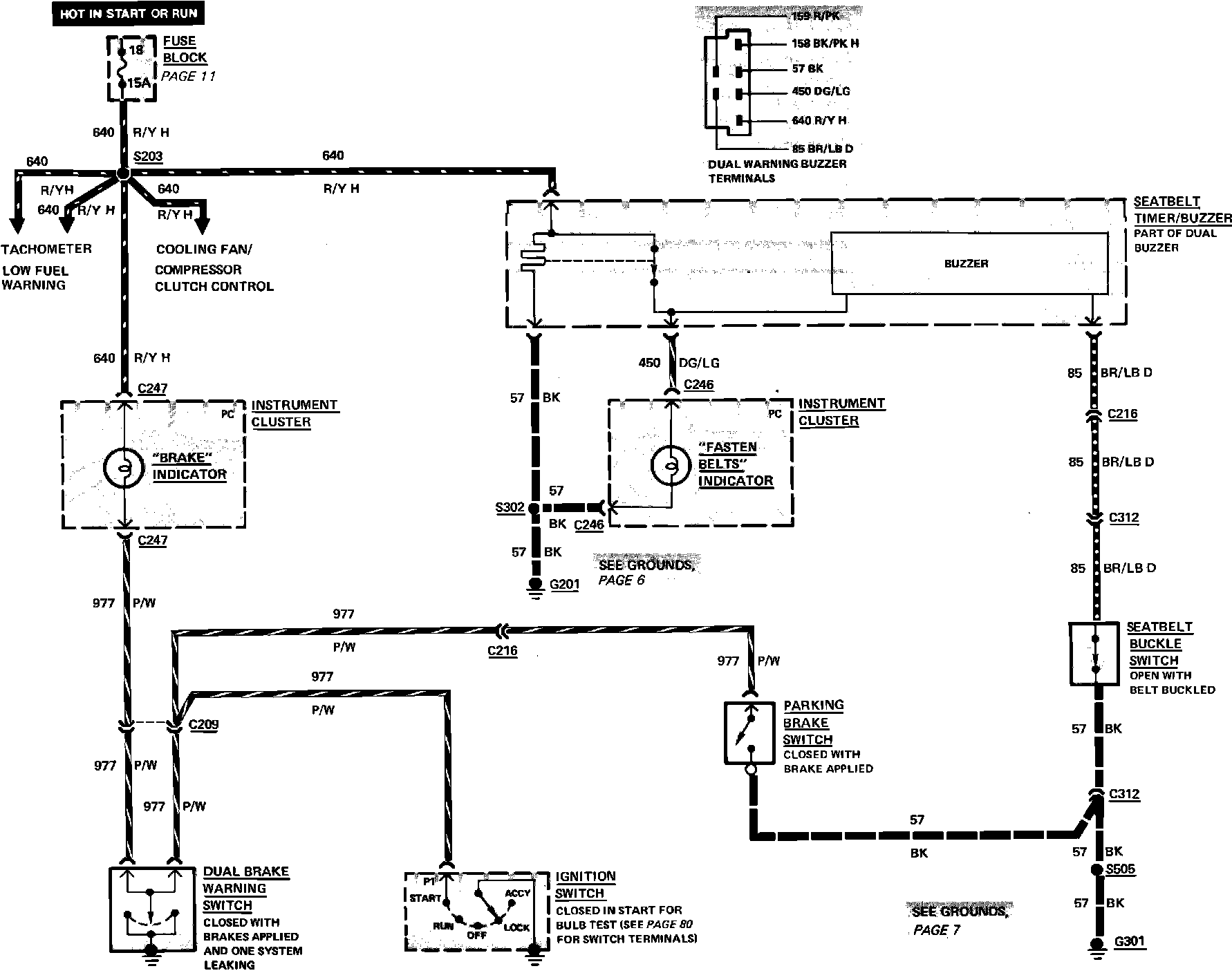

Fig. 53 Instrument panel warning indicator wiring circuit. 1984 Capri & Mustang:
