System Diagram
System Diagram

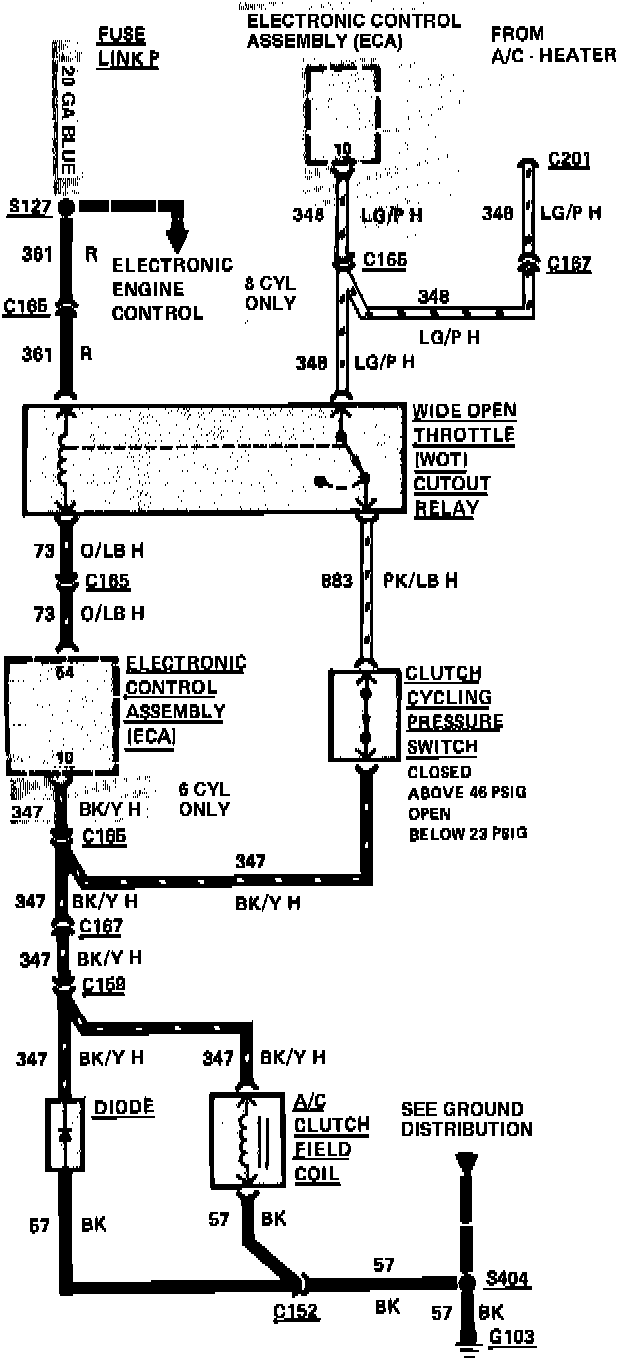

Fig. 12 Air conditioning compressor clutch & cooling fan wiring circuit. 1984 Capri & Mustang with 6 & 8 cyl engine less high output option:
