With Intermittent Wipers

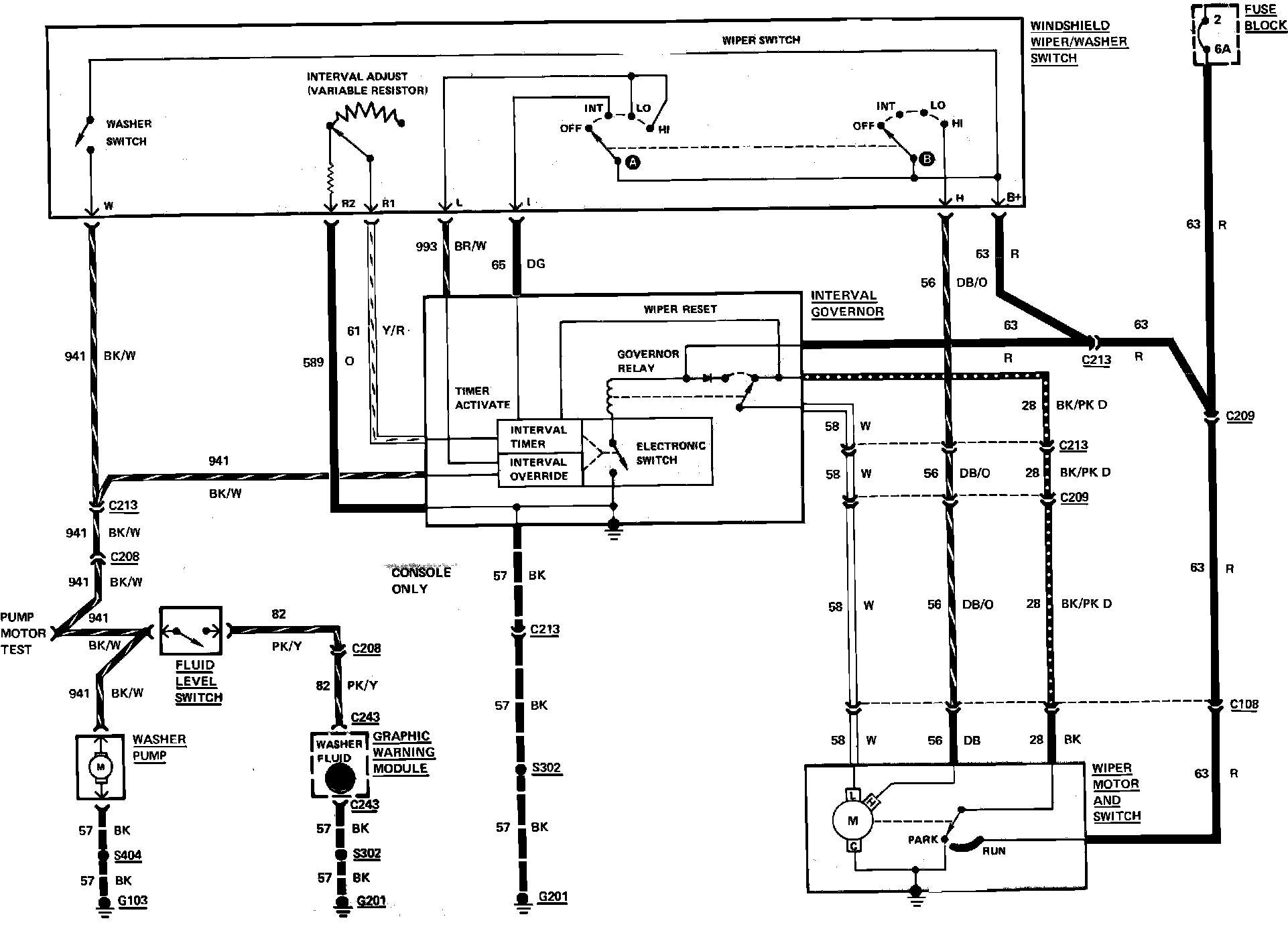

Fig. 79 Windshield wiper & washer wiring circuit. 1984 Capri & Mustang with intermittent wiper:
