Wiring Diagrams

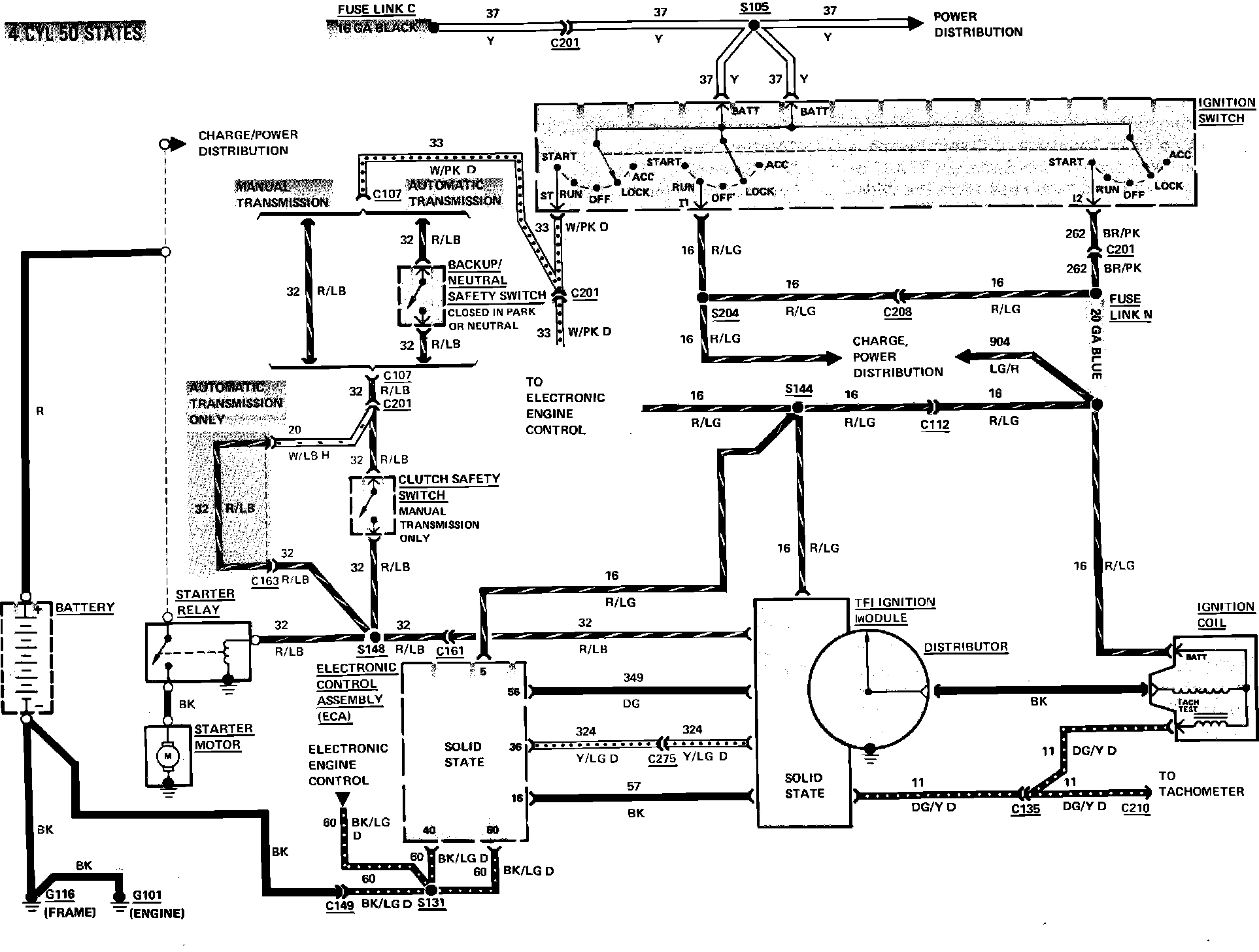

Fig. 45 Ignition & starting system wiring circuit. 1984 Capri & Mustang with 4 cyl engine less turbocharger:
