Radiator Cooling Fan Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

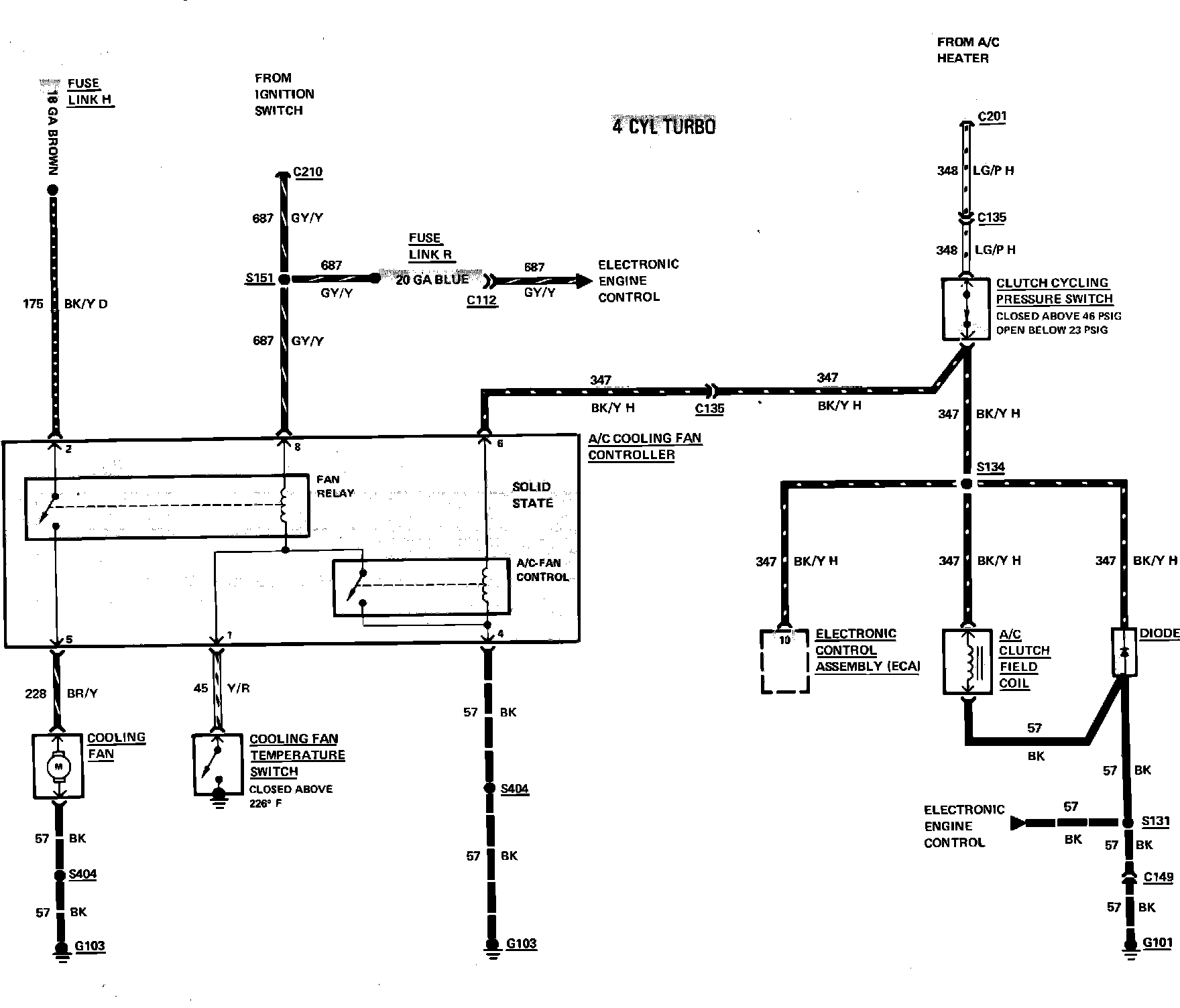

Fig. 11 Air conditioning compressor clutch & cooling fan wiring circuit. 1984 Capri & Mustang with 4 cyl engine with turbocharger:
