FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1984
>>
Capri L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Reading Diagnostic Trouble Codes
>>
Quick Tests
>>

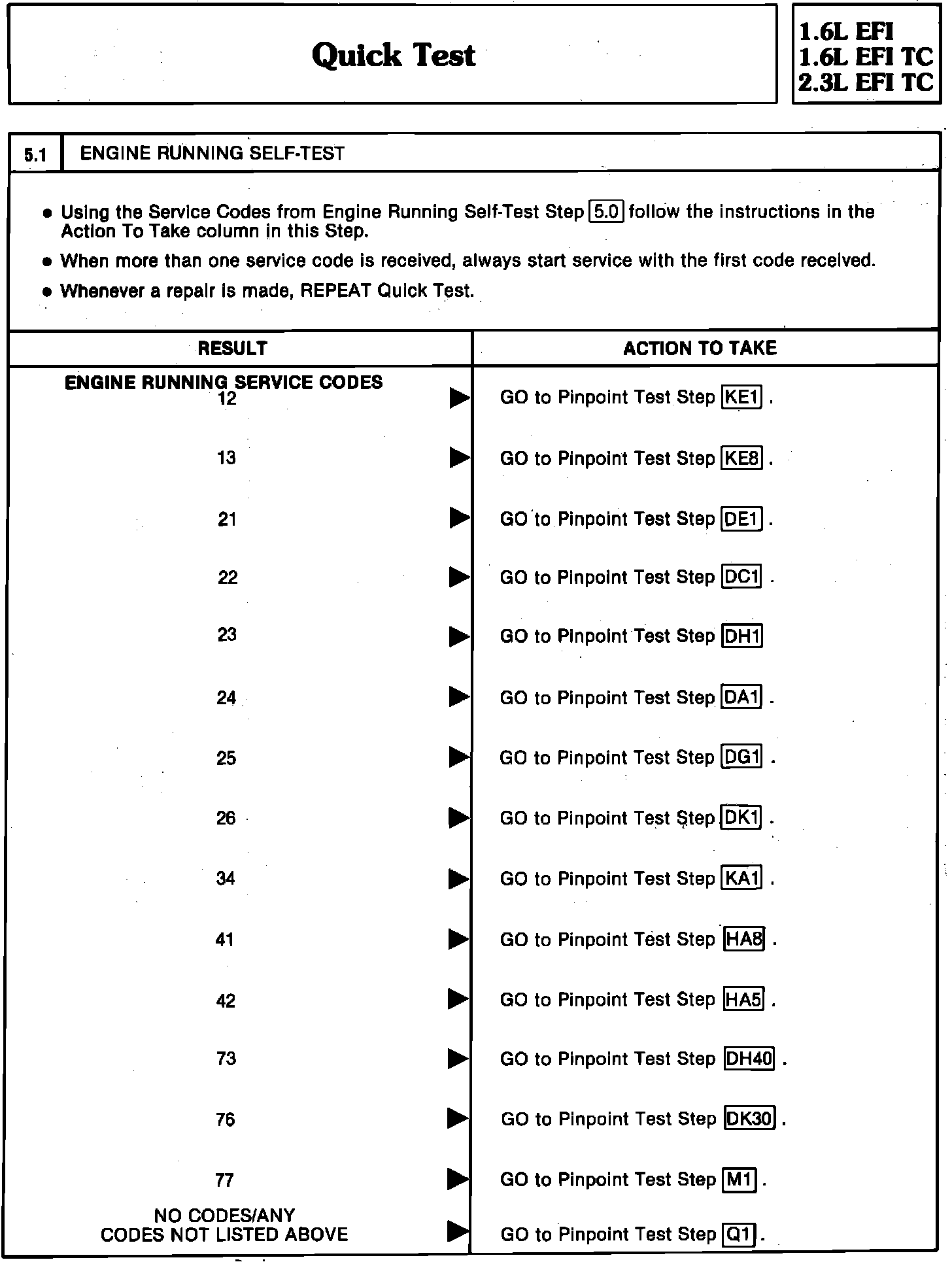

5.1 - Engine Running Self-Test
5.1 - Engine Running Self-Test
Engine Running Self Test And Service Codes 12 - 77 (1.6L EFI, 1.6L EFI TC, 2.3L EFI TC):
