Home >> Mercury >> 1984 >> Capri L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> System Diagram

System Diagram

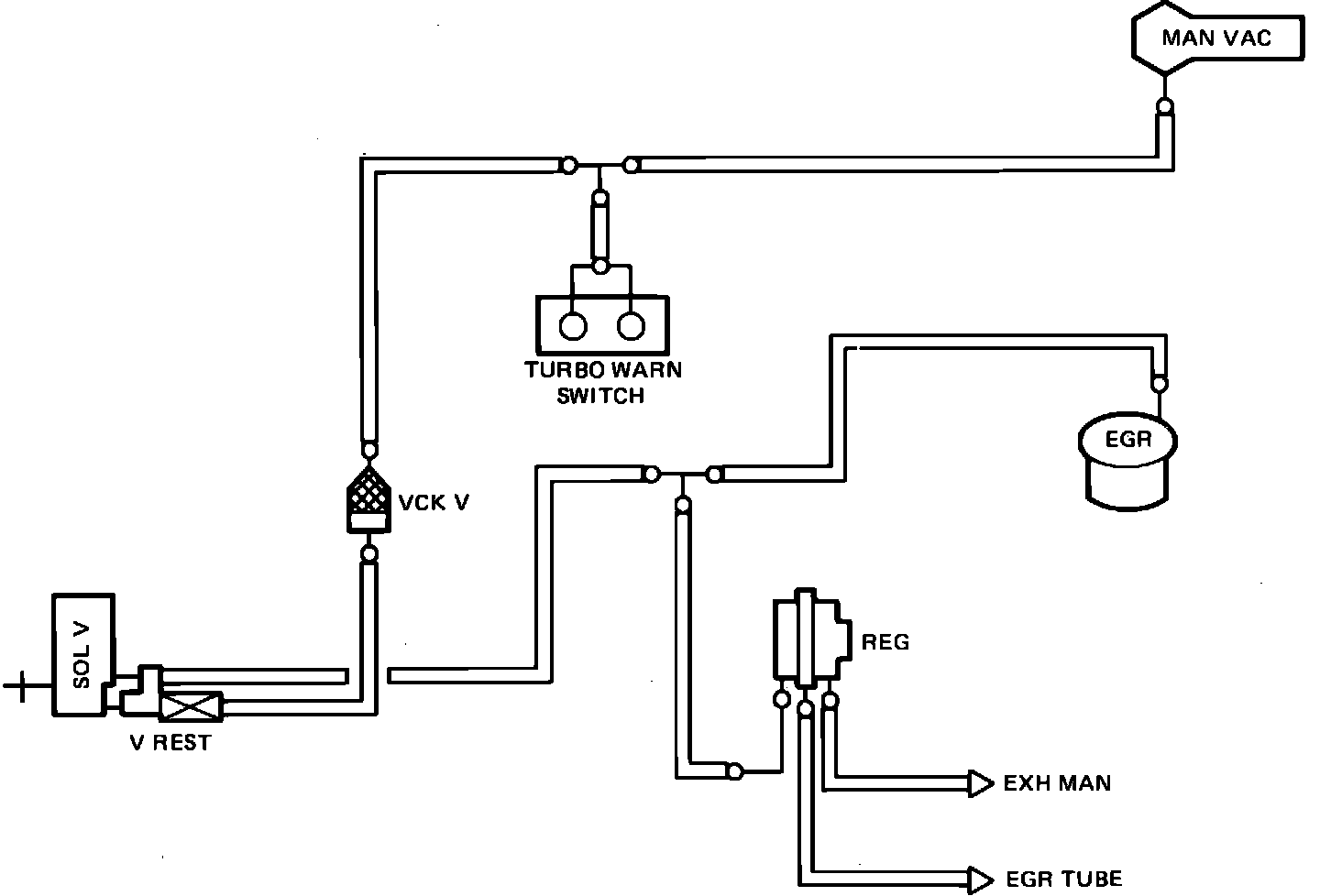

Fig. 41 EEC-IV Vacuum Hose Routing. 1984 4-140 Turbocharged EFI Engine, Exc. Mustang SVO:
