Home >> Mercury >> 1983 >> Zephyr L6-200 3.3L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Spring ( Coil / Leaf ) >> Technical Service Bulletins >> Front/rear Springs - Applications >> 1983 T-Bird/Cougar Front and Rear Spring Charts

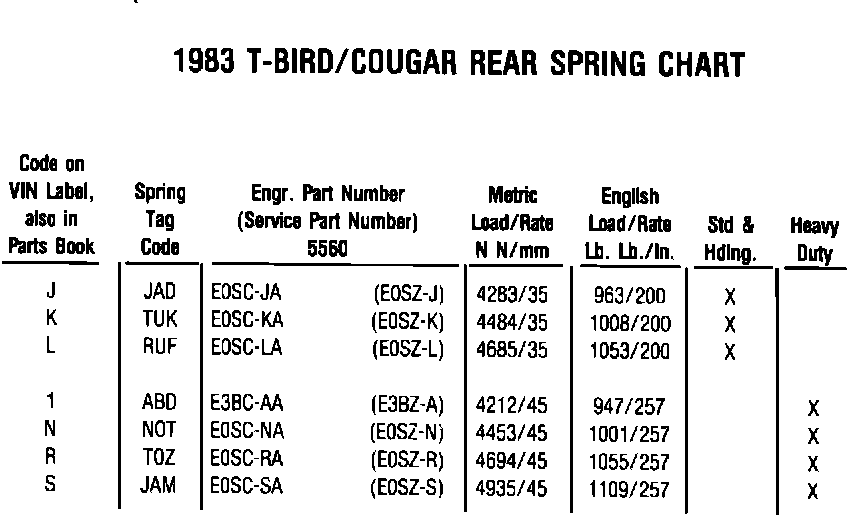

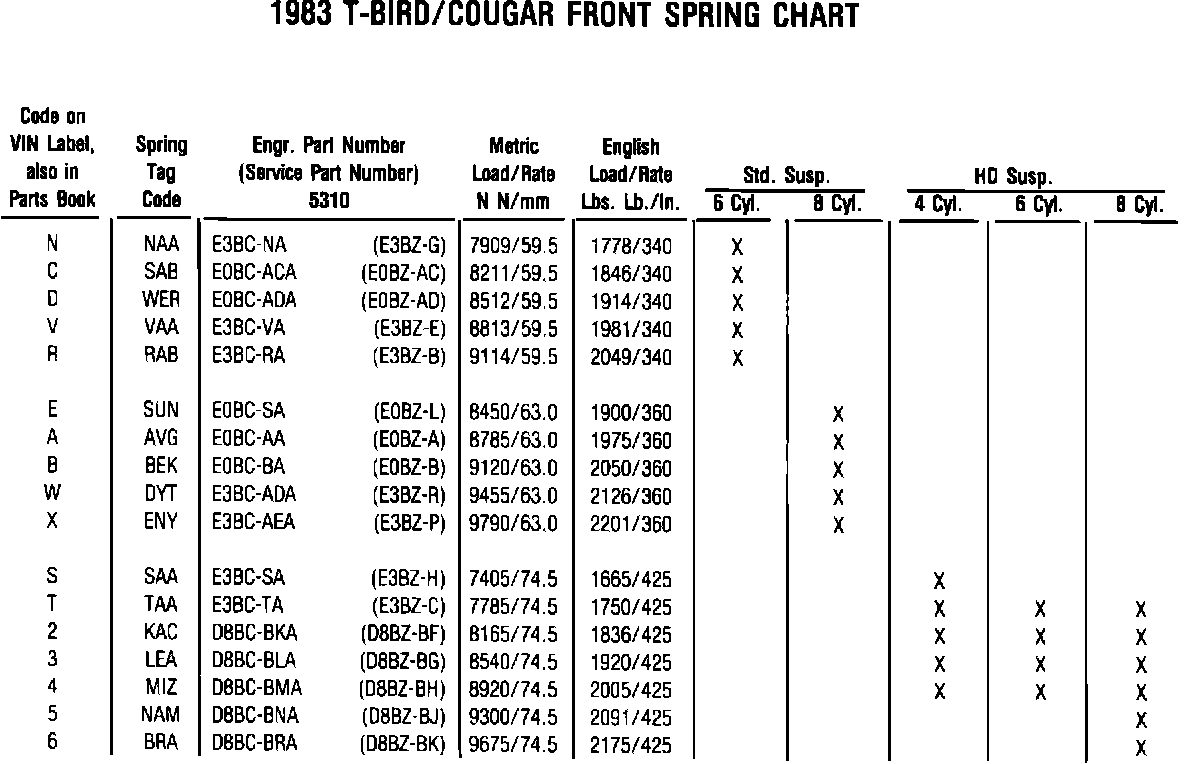

1983 T-Bird/Cougar Front and Rear Spring Charts







OTHER APPLICABLE ARTICLES: 82-8A
WARRANTY STATUS: "INFORMATION ONLY"
