Home >> Mercury >> 1983 >> Zephyr L6-200 3.3L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Diagrams >> Electrical Diagrams

Electrical Diagrams

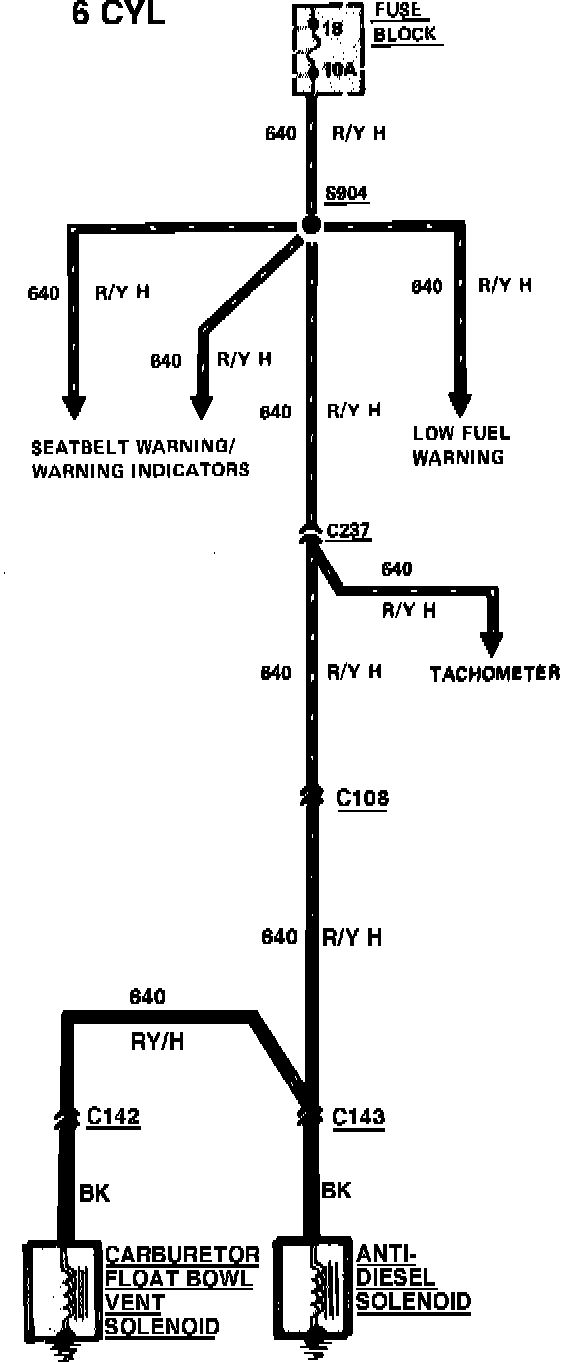

Fig. 11 Carburetor Wiring Circuit. 1983 Fairmont & Zephyr With 6 Cyl Engine:
