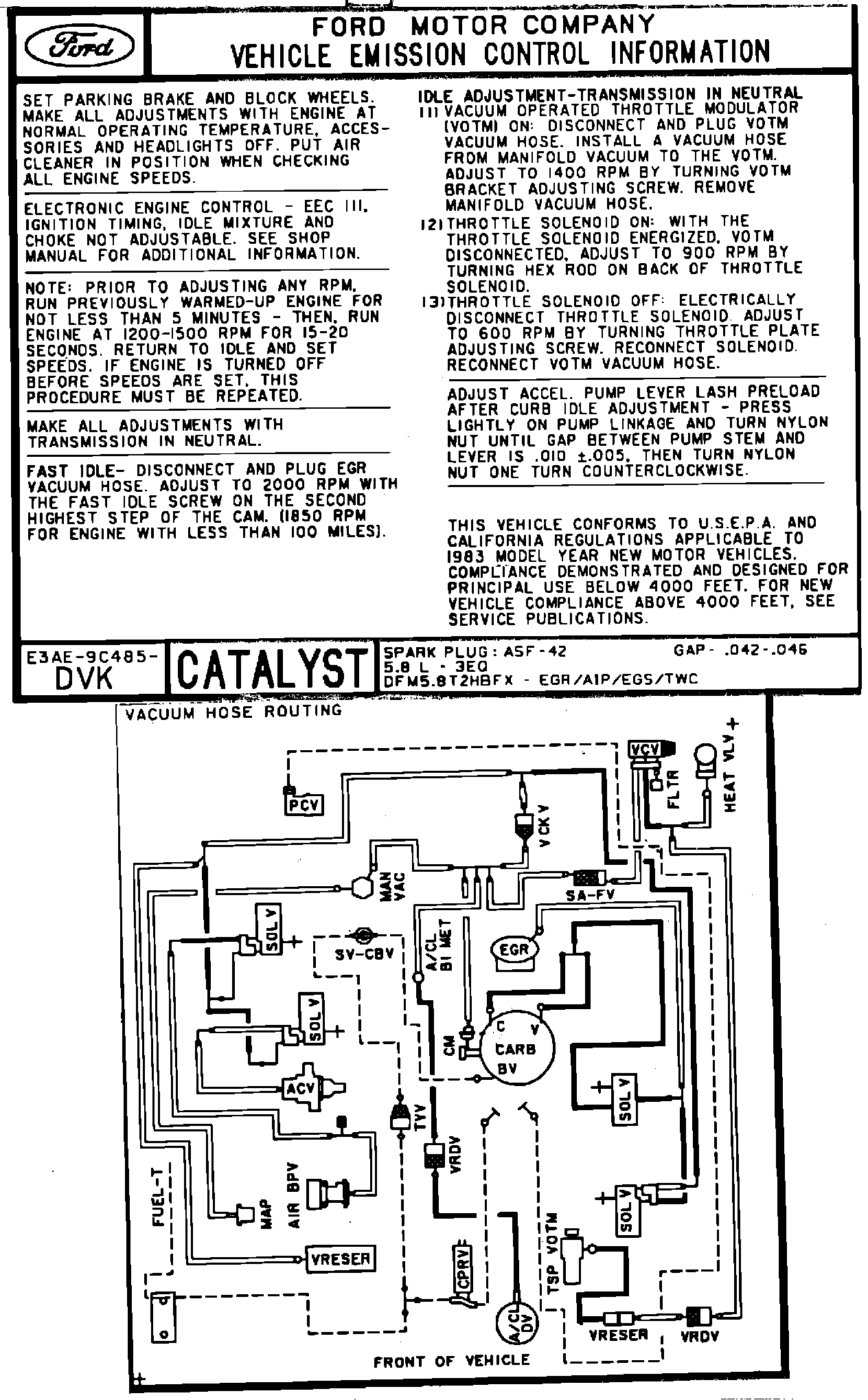

Calibration:1-64T-R15B

MODEL YEAR: 1983 - ENGINE: 5.8L
CARBURETOR SPECIFICATIONS

Model: Motorcraft 7200
Part Number: E3TE-9510-BVA

CHOKE/FUEL ENRICHMENT SYSTEM
Pulldown Setting: 2-5 sec.
Bi-Metal Identification: 7120KD400
Fast Idle Cam Setting: .355-.365 2nd Highest Step
Fast Idle Cam Identification: #5
Choke Cap Setting: Index
Control Vacuum Reg. Setting: .245-.255

COLD ENRICHMENT ROD
75~F CER Start (75~F Diaphragm): .430-.460
75~ CER Run (CER Position): .115-.135
0~F CER Start (0~ Crank Pos): .485-.495
0~ CER Run (0~ Diaphragm): .345-.355

FUEL INLET SYSTEM
Float Setting (Dry): 1.070-1.010
Float Drop: 1.490-1.430

PUMP SYSTEM
Accelerator Pump Lever Lash: .010 plus 1 turn CCW

MAIN METERING SYSTEM
Metering Rod Identification: #198

VENTURI VALVE ADJUSTMENT
Maximum Opening: .99-1.01
Wide Open On Throttle: .48-.52
