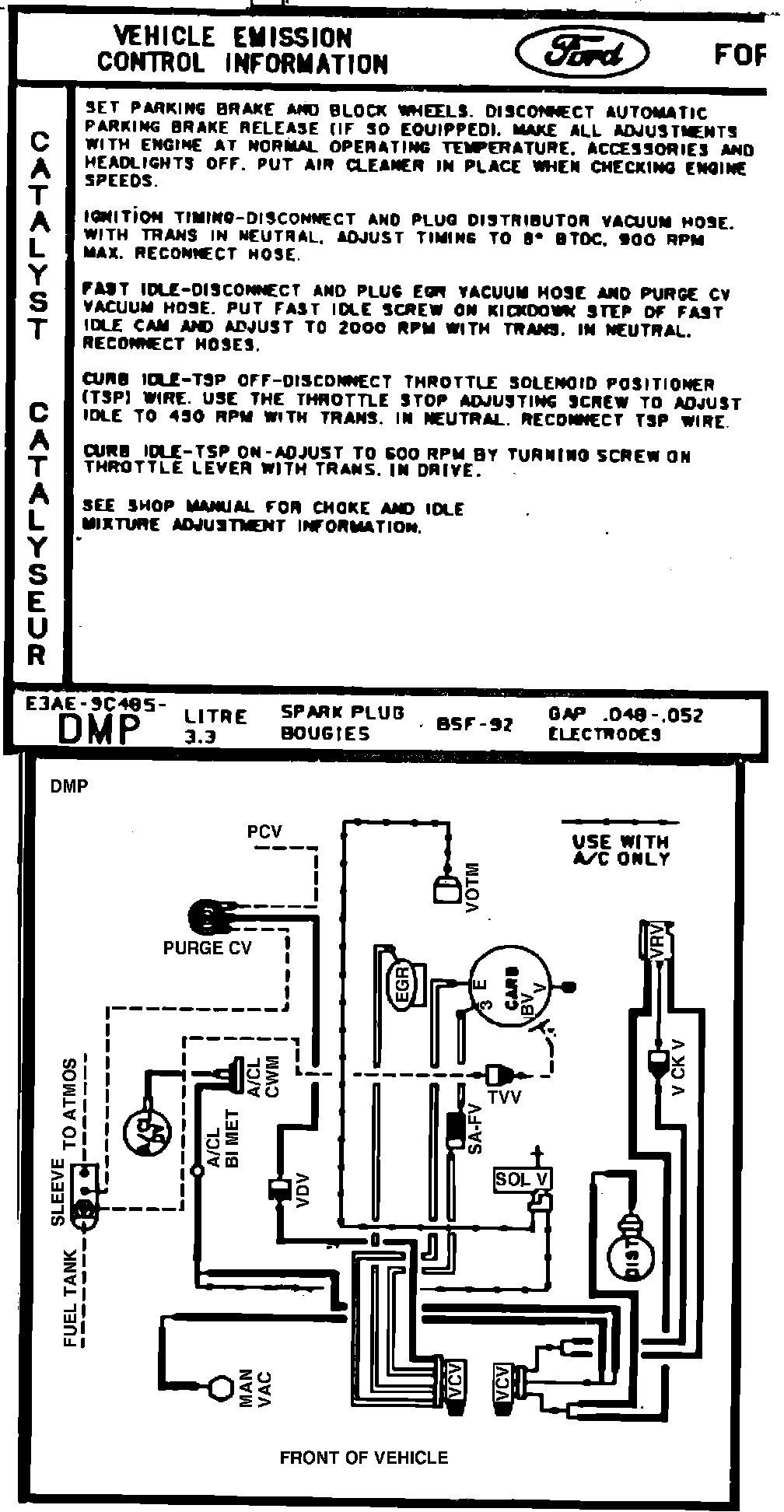

Calibration:3-12J-R10

MODEL YEAR: 1983 - ENGINE: 3.3L
CARBURETOR SPECIFICATIONS

Model: Holley 1946
Part Number: E3BE-9510-CA (A/C) E3BE-9510-DA (Non A/C)

CHOKE/FUEL ENRICHMENT SYSTEM
Pulldown Setting: .100" w/Modulator Spring Compressed
Bi-Metal Identification: JLX-3
Fast Idle Cam Index Setting: .078"
Fast Idle Cam Identification: 4 Step Black
De-Choke: .150" Minimum
Come-Off Time: 4 min. Maximum
Choke Cap Setting: 2 NR

FUEL INLET SYSTEM
Fuel Level (Wet): .69"

PUMP SYSTEM
Pump Lever Location: #2
DISTRIBUTOR SPECIFICATIONS Total Advance @ 2500 RPM Includes Initial Timing

Distributor Part No: E1BE-12127-EA
Initial Timing (~BTDC): 8
Vac Advance Connected: 32-42
Vac Advance Disconnected: 15-19

PROPANE SPECIFICATIONS (Set in Neutral)

Gain RPM: 40-60
Reset RPM: 50
