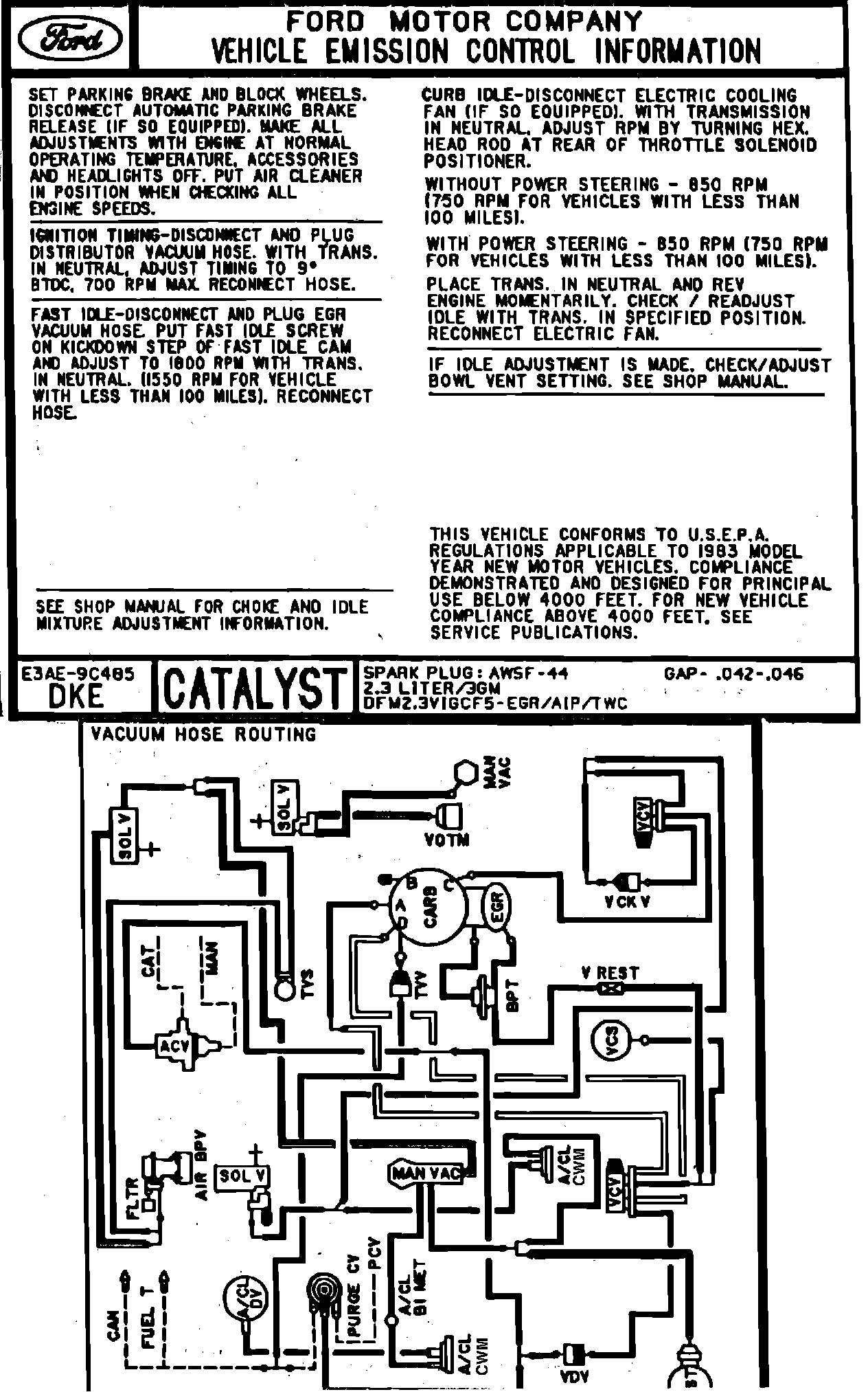

Calibration:3-05A-R02

MODEL YEAR: 1983 - ENGINE: 2.3L
CARBURETOR SPECIFICATIONS

Model: Carter YFA
Part Number: E3ZE-9510-U B (A/C or Non A/C) E3ZE-9510-TC (Non A/C)

CHOKE/FUEL ENRICHMENT SYSTEM
Pulldown Setting: .240"
Bi-Metal Identification: RER-3
Cam Index Setting: .140
Fast Idle Cam Identification: 8510
De-Choke: .22" Minimum
Come-Off Time: -
Choke Cap Index Plate Color: Yellow

FUEL INLET SYSTEM
Float Setting (Dry): .650"
DISTRIBUTOR SPECIFICATIONS Total Advance @ 2500 RPM Includes Initial Timing

Distributor Part No: E3ZE-12127-DA
Initial Timing (~BTDC): 9
Vac Advance Connected: 24-34
Vac Advance Disconnected: 7-11


PROPANE SPECIFICATIONS (Set in Neutral)

Gain RPM: 60-100
Reset RPM: 80
