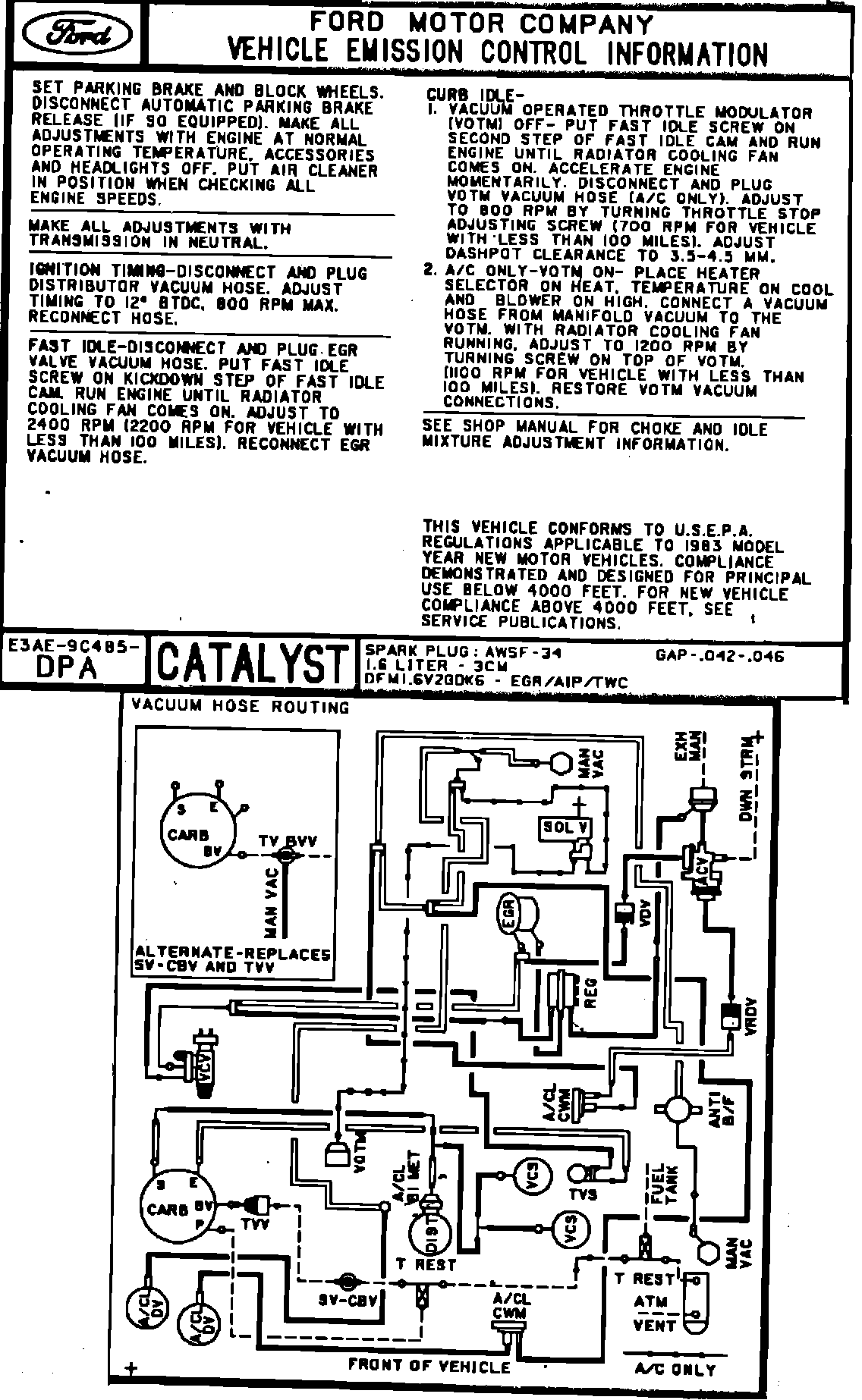

Calibration:3-03B-R00

MODEL YEAR: 1983 - ENGINE: 1.6L
CARBURETOR SPECIFICATIONS

Model: Motorcraft 740
Part Number: E3GE-9510-MA (A/C), E3GE-9510-UA (Non A/C)

CHOKE/FUEL ENRICHMENT SYSTEM

Pulldown Setting:
Bi-Metal Identification: 7.0 +/- .5 mm
Fast Idle Cam Setting: X-7
De-Choke: 2.5 +/- .5 mm
Come-Off Time: 3.5 mm Minimum
76-114 sec. @ 75~F, 383-544 sec. @ 0~F
Choke Cap Index Plate Color: Natural

FUEL INLET SYSTEM
Float Setting (Dry):

7.25-7.75 mm

MAIN METERING SYSTEM
Power Valve Timing: 3-6"
Main Jet (Primary): 1.15 mm
Main Jet (Secondary): 1.20 mm

DASHPOT CLEARANCE: 4.0 +/- .5 mm
DISTRIBUTOR SPECIFICATIONS Total Advance @ 2500 RPM IncLudes Initial Timing
Distributor Part No: E3EE-12127-TA
Initial Timing (~BTDC): 12
Vac Advance connected: 38-50
Vac Advance Disconnected: 17-23

PROPANE SPECIFICATIONS (Set in Neutral)

Gain RPM: 10-70
Reset RPM: 40
