Calibration:3-03A-R13

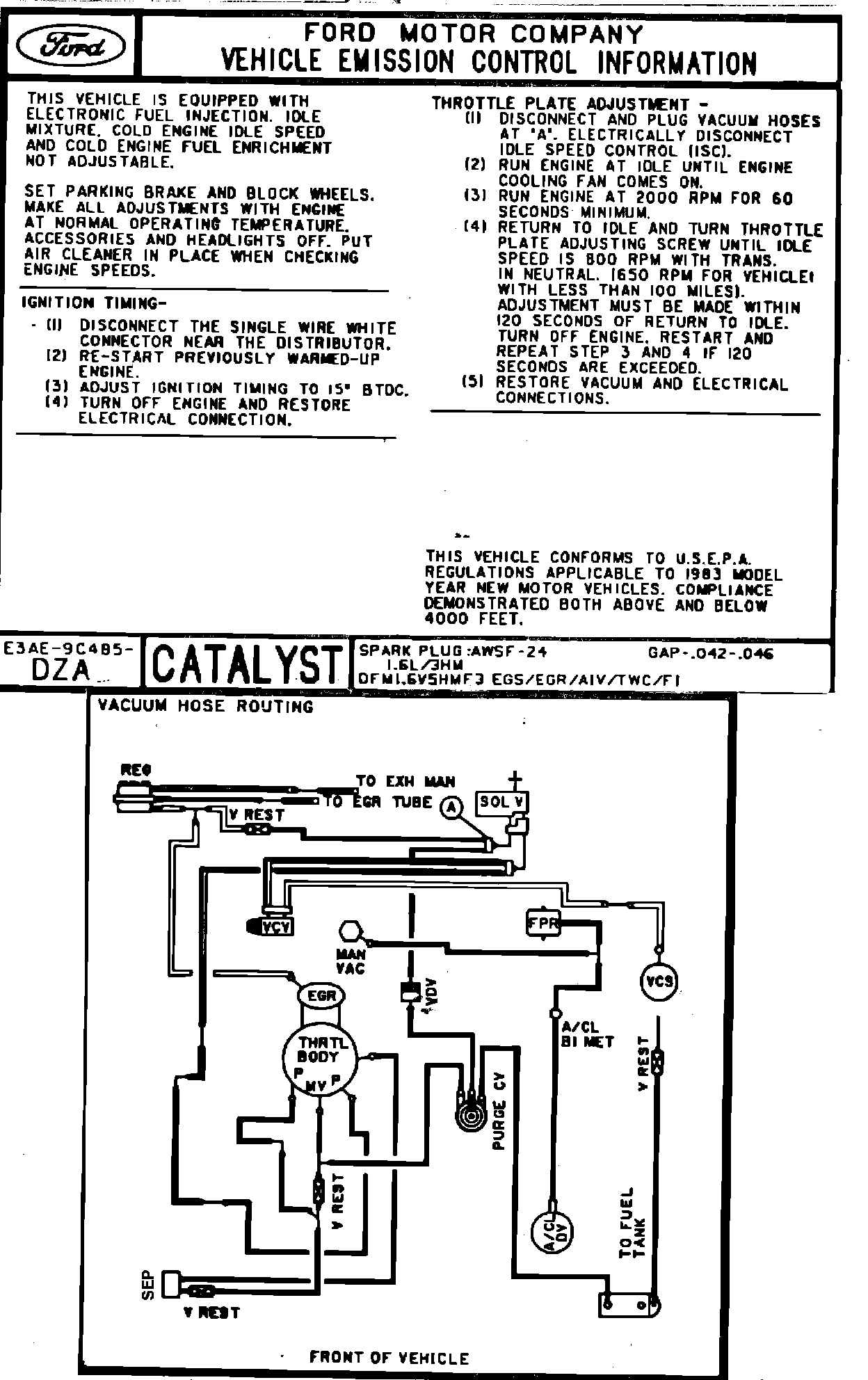

(Models Before May '83)

MODEL YEAR: 1983 - ENGINE: 1.6L
FUEL CHARGING MANIFOLD ASSEMBLY SPECIFICATIONS
Model: Ford EFI (Electronic Fuel Injection)
Part Number: E3EE-9H487-PA, E3EE-9H487-PB (alt.)

AIR BYPASS VALVE ASSEMBLY IDENTIFICATION: E3EE-9F715-AA

THROTTLE BODY ASSEMBLY IDENTIFICATION: E3EE-9E926-DB

VALVE ASSEMBLY-FUEL PRESSURE RELIEF IDENTIFICATION: E0AE-9H321-AB

FUEL PRESSURE REGULATOR ASSEMBLY IDENTIFICATION: E3EE-9C968-AA

FUEL INJECTOR ASSEMBLY IDENTIFICATION (4): E3EE-9F593-BA

FUEL SUPPLY MANIFOLD ASSEMBLY IDENTIFICATION: E3EE-9D280-GB

THROTTLE POSITION SENSOR IDENTIFICATION: E3EE-9B989-AA

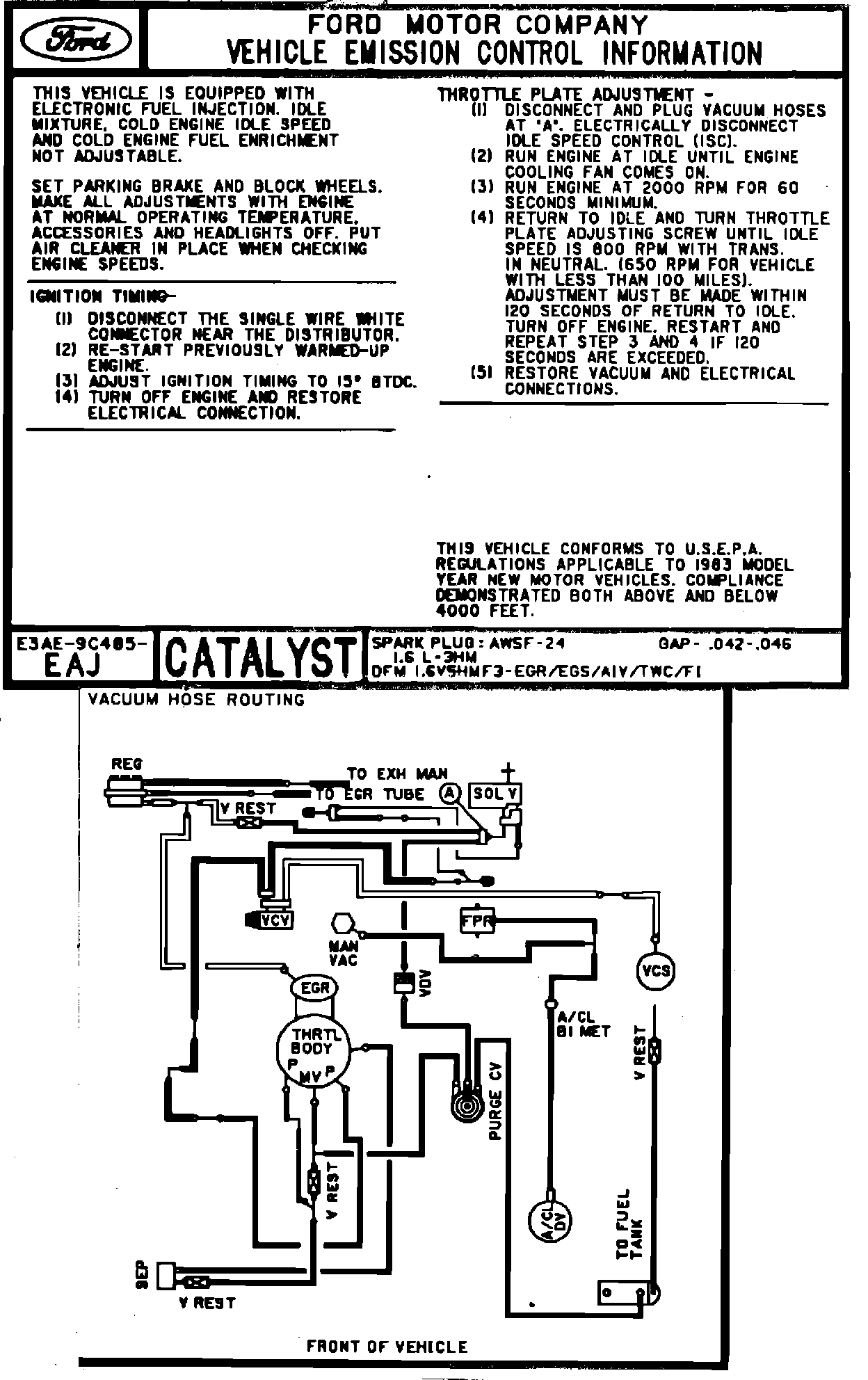

(Models After April '83)

MODEL YEAR: 1983 - ENGINE: 1.6L
FUEL CHARGING MANIFOLD ASSEMBLY SPECIFICATIONS

Model: Ford EFI (Electronic Fuel Injection)

Part Number: E3EE-9H487-PA, E3EE-9H487-PB (alt.)

AIR BYPASS VALVE ASSEMBLY IDENTIFICATION: E3EE-9F715-AA

THROTTLE BODY ASSEMBLY IDENTIFICATION: E3EE-9E926-DB

VALVE ASSEMBLY-FUEL PRESSURE RELIEF IDENTIFICATION: E0AE-9H321-AB

FUEL PRESSURE REGULATOR ASSEMBLY IDENTIFICATION: E3EE-9C968-AA

FUEL INJECTOR ASSEMBLY IDENTIFICATION (4): E3EE-9F593-BA

FUEL SUPPLY MANIFOLD ASSEMBLY IDENTIFICATION: E3EE-9D280-GB

THROTTLE POSITION SENSOR IDENTIFICATION: E3EE-9B989-AA
