Engine Mount: Service and Repair

Whenever self-locking mounting bolts and nuts are removed, they must be replaced with new self-locking bolts and nuts.
On some 1982 Granada, 1982-83 Cougar and Thunderbird and 1983 LTD and Marquis models, a silver colored flange nut which retains the engine mounts to No. 2 crossmember has replaced the black nut previously used. Reduce torque on this type nut to 50-65 ft. lbs.

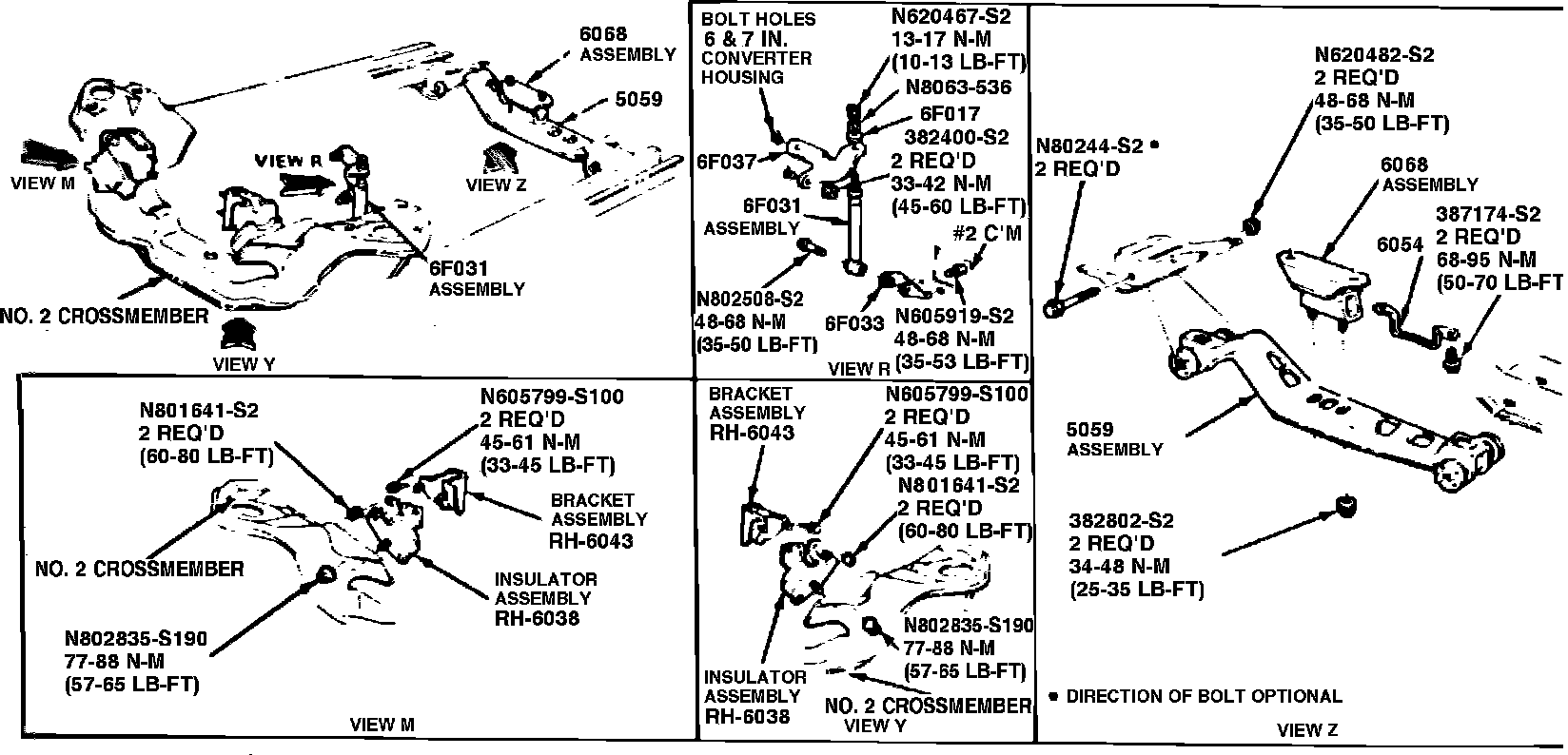

�,Fig. 6 Engine mounts. 1983 LTD & Marquis 6-200:

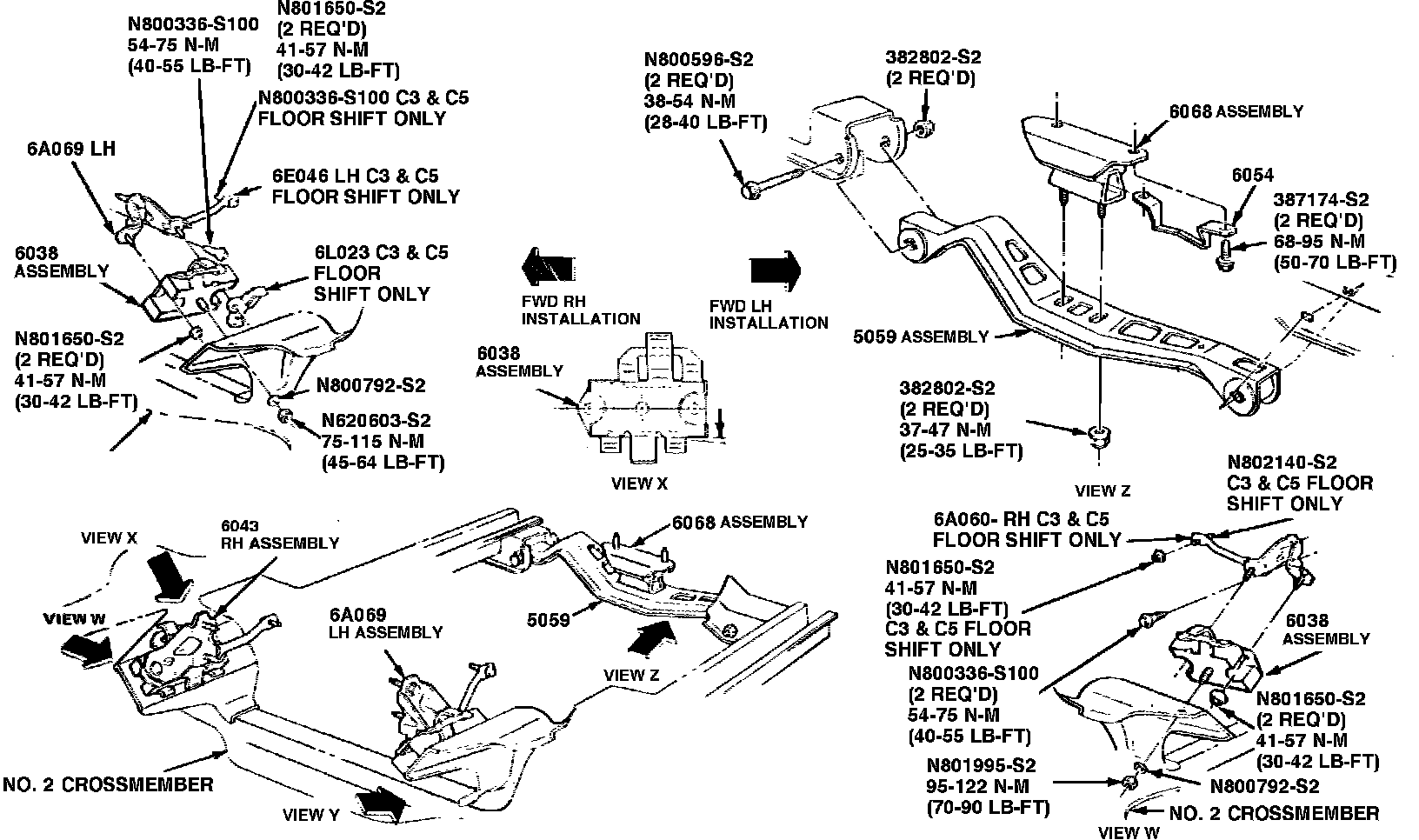

Fig. 7 Engine mounts. 1982-83 Fairmont & Zephyr, 1982 Cougar XR-7, Granada & Thunderbird 6-200:

1982 COUGAR, GRANADA & THUNDERBIRD 1982-83 FAIRMONT, ZEPHYR & 1983 LTD & MARQUIS 6-200

1. Remove fan shroud screws.
2. Support engine with suitable jack and wooden block.
3. On LTD and Marquis models, remove engine damper lower bolt and No. 2 crossmember bracket, Fig. 6.
4. On all models, remove nut and washer assemblies from insulators at No. 2 crossmember.
5. Raise engine with jack until insulator studs clear crossmember.
6. Disconnect bracket from engine and remove engine mount.
7. Reverse procedure to install. Torque fasteners according to Figs. 6 and 7.
