Manual Transmission/Transaxle

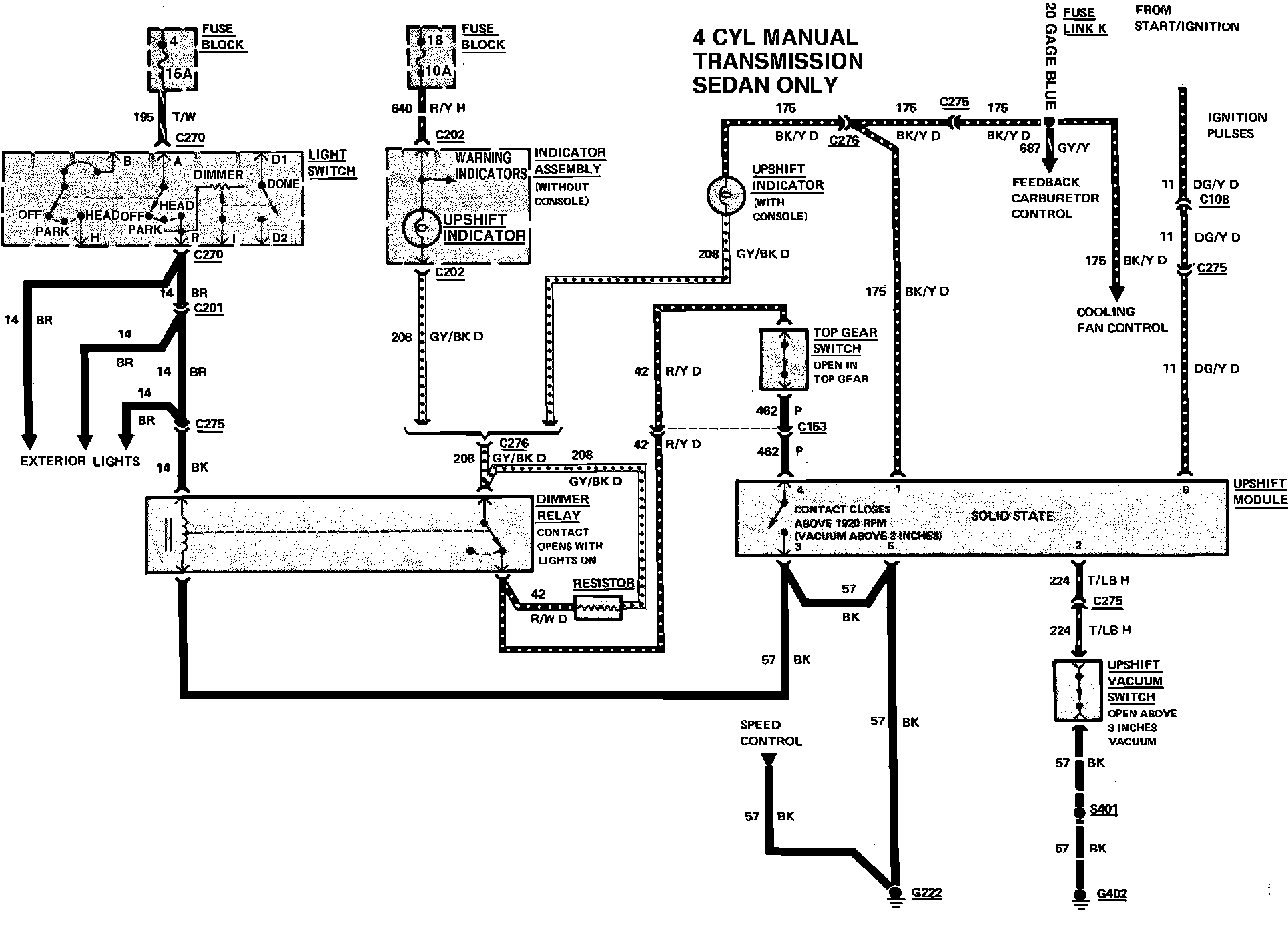

Fig. 38 Transmission Upshift Indicator Wiring Circuit. 1983 Fairmont & Zephyr:
