Instrument Panel Illumination

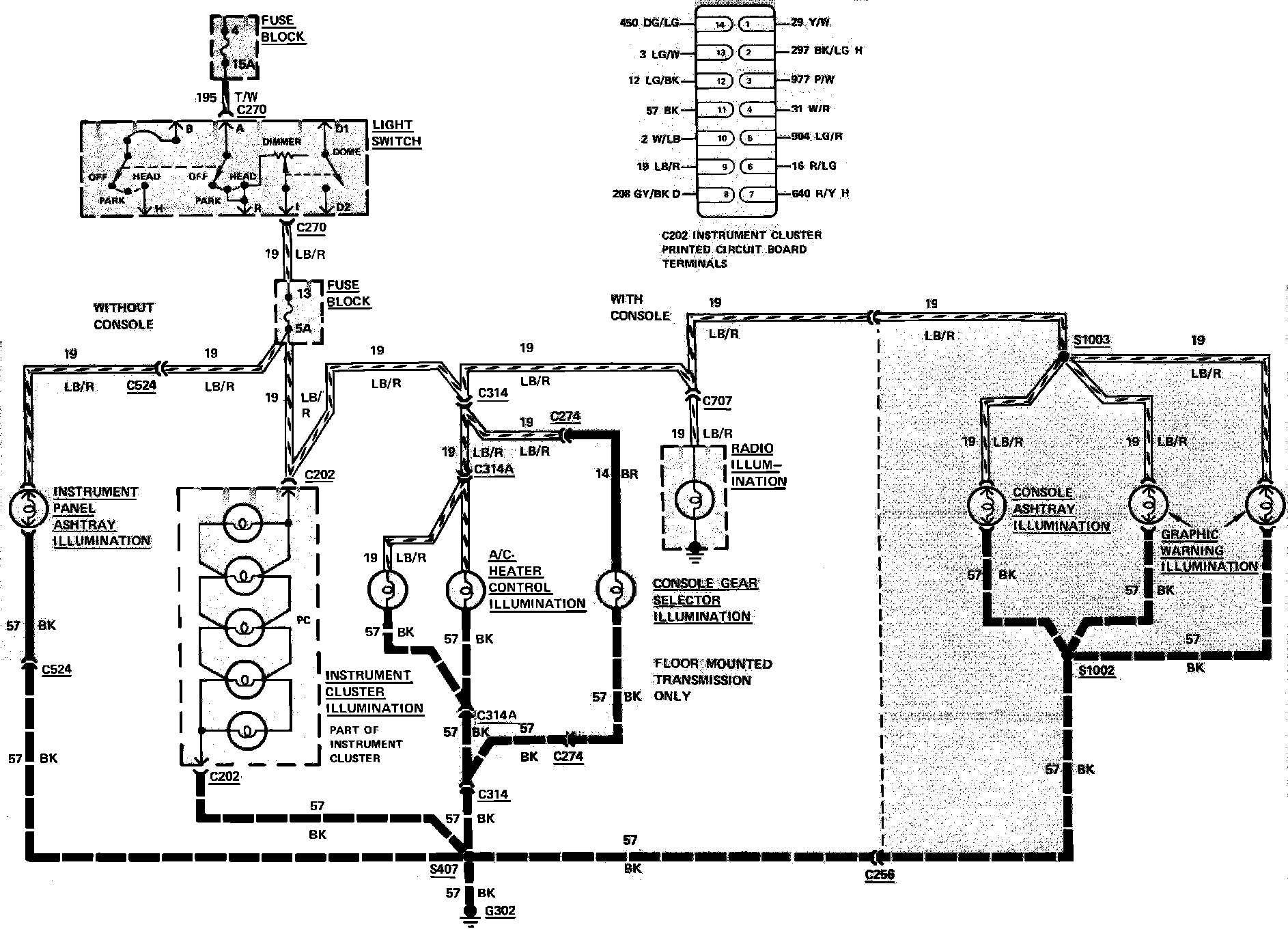

Fig. 23 Instrument Panel Illumination Wiring Circuit. 1983 Fairmont & Zephyr:
