Home >> Mercury >> 1983 >> Zephyr L6-200 3.3L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Stereo Radio Less Premium Sound

Stereo Radio Less Premium Sound

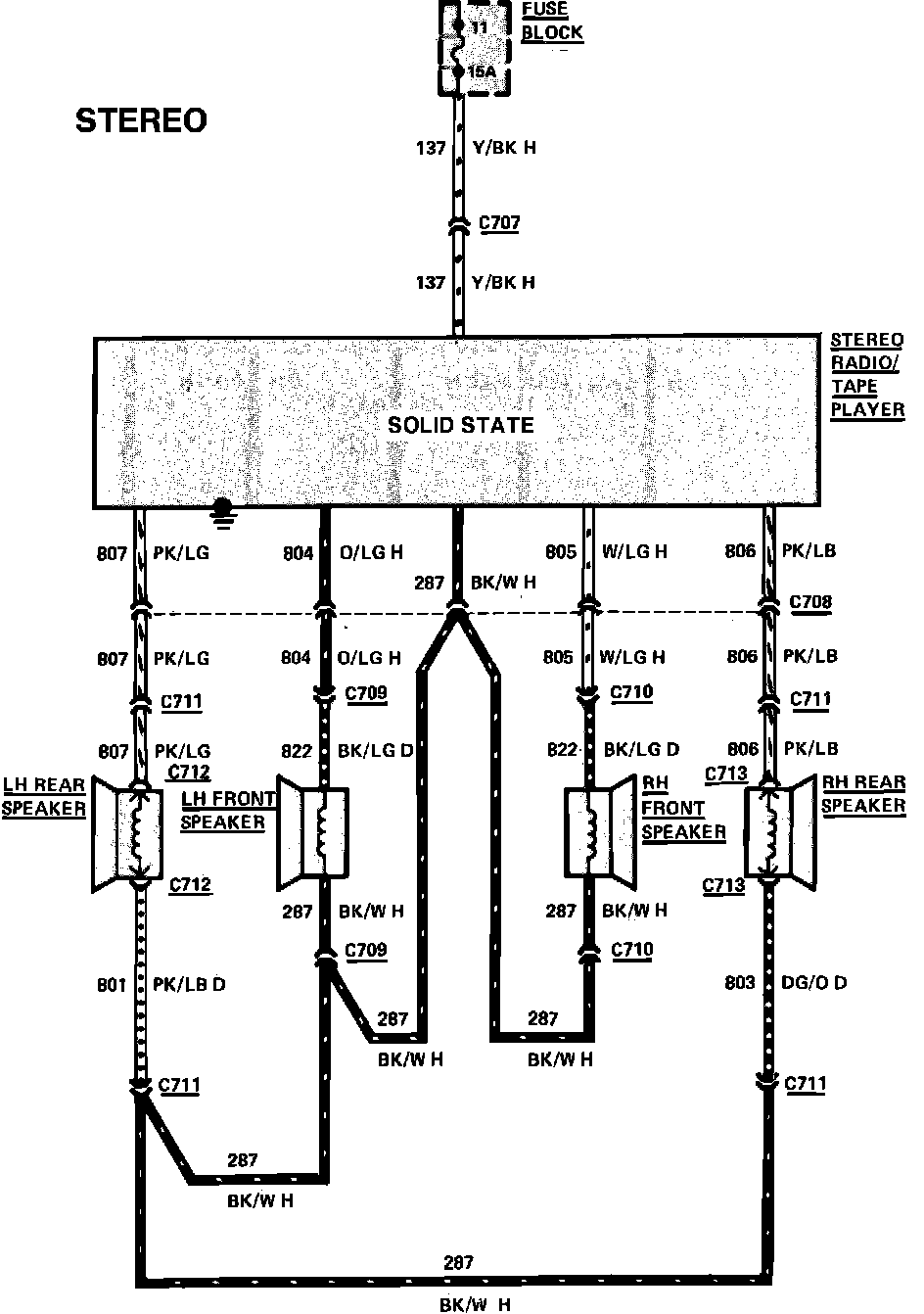

Fig. 33 Radio & Speaker Wiring Circuit. 1983 Fairmont & Zephyr With Stereo Radio Less Premium Sound:
