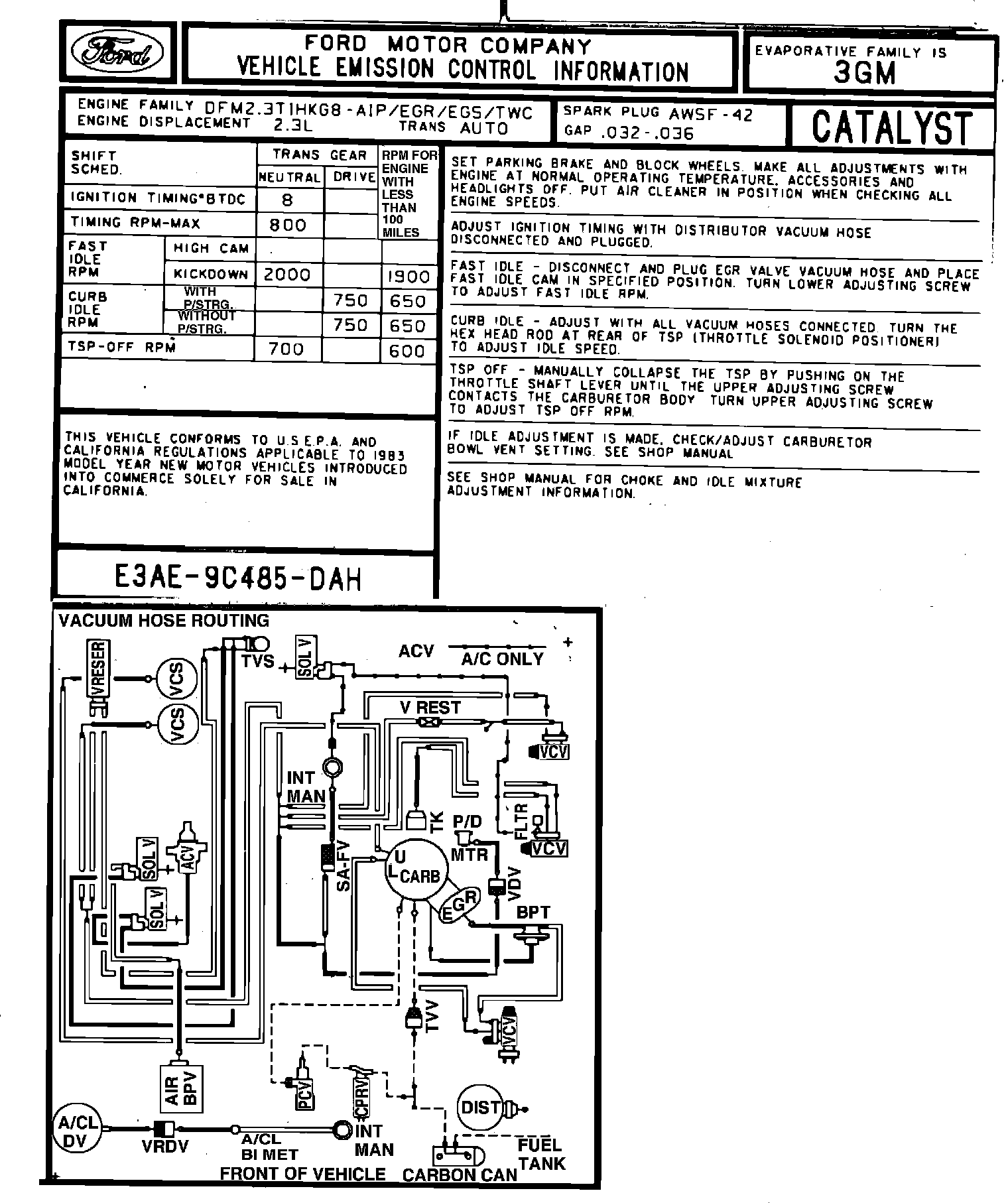

Calibration:3-50S-R00 Carter YFA E27E-9510-Ha

MODEL YEAR: 1983 ENGINE: 2.3L
CARBURETOR SPECIFICATIONS

Model: Carter YFA
Part Number: E27E-9510-HA

CHOKE/FUEL ENRICHMENT SYSTEM
Pulldown Setting: .320"
Bi-Metal Identification: REL
Cam Index Setting: .140
Fast Idle Cam Identification: -498
De-Choke: .27" Minimum
Choke Cap Index Plate Color: Black

FUEL INLET SYSTEM
Float Setting (Dry): .650"
DISTRIBUTOR SPECIFICATIONS Total Advance @ 2600 RPM Includes Initial Timing

Distributor Part No: E27E-12127-AA
Initial Timing (~BTDC): 8
Vac Advance Connected: 36-47
Vac Advance Disconnected: 15-20

PROPANE SPECIFICATIONS (Set in Neutral)

Gain RPM: 20-30
Reset RPM: 30
