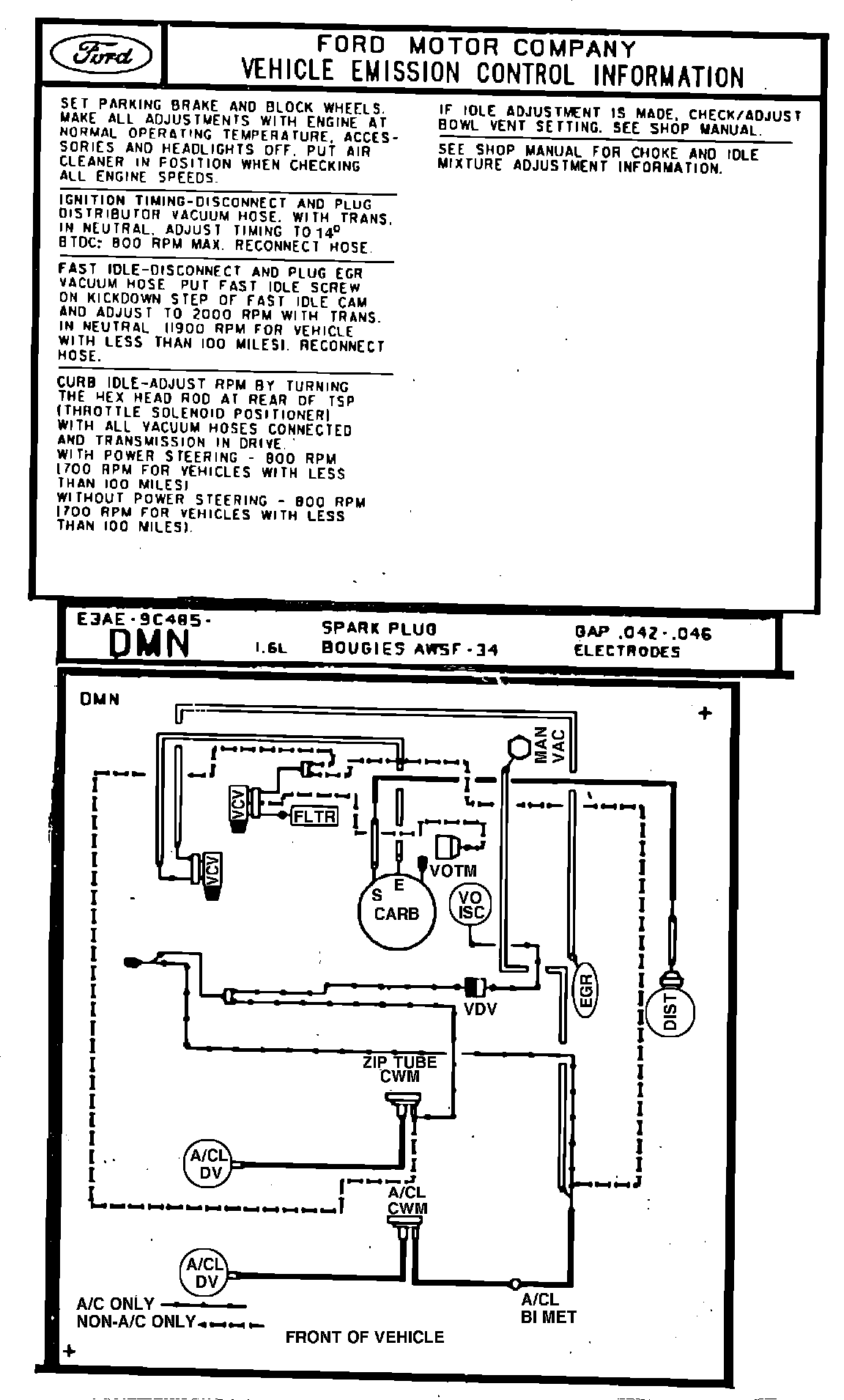

Calibration:3-04H-R00 Motorcraft 740 E3GE-9510-LA (A/C)

MODEL YEAR: 1983 (A/C) ENGINE: 1.6L
CARBURETOR SPECIFICATIONS
Model: Motorcraft 740
Part Number: E3GE-9510-LA (A/C),

CHOKE/FUEL ENRICHMENT SYSTEM

Pulldown setting: 7.5 +/- .5 mm
Bi-Metal Identification: X-2
Fast Idle Cam setting: 2.0 +/- .5 mm
De-Choke: 3.5 mm Minimum
Come-Off Time: 76-114 sec. @ 75~F,
383-544 sec. @ 0~F
Choke Cap Index Plate Color: Natural

FUEL INLET SYSTEM
Float setting (Dry):

7.25-7.75 mm

MAIN METERING SYSTEM
Power Valve Timing: 3-6"
Main Jet (Primary): 1.15 mm
Main Jet (Secondary): 1.10 mm

DASHPOT CLEARANCE: 4.0 +/- .5 mm
DISTRIBUTOR SPECIFICATIONS Total Advance @ 2500 RPM Includes Initial Timing

Distributor Part No: E3EE-12127-VA
Initial Timing (~BTDC): 14
Vac Advance Connected: 35-45
Vac Advance Disconnected: 18-22

PROPANE SPECIFICATIONS (Set in Neutral)

Gain RPM: 20-70
Reset RPM: 40
