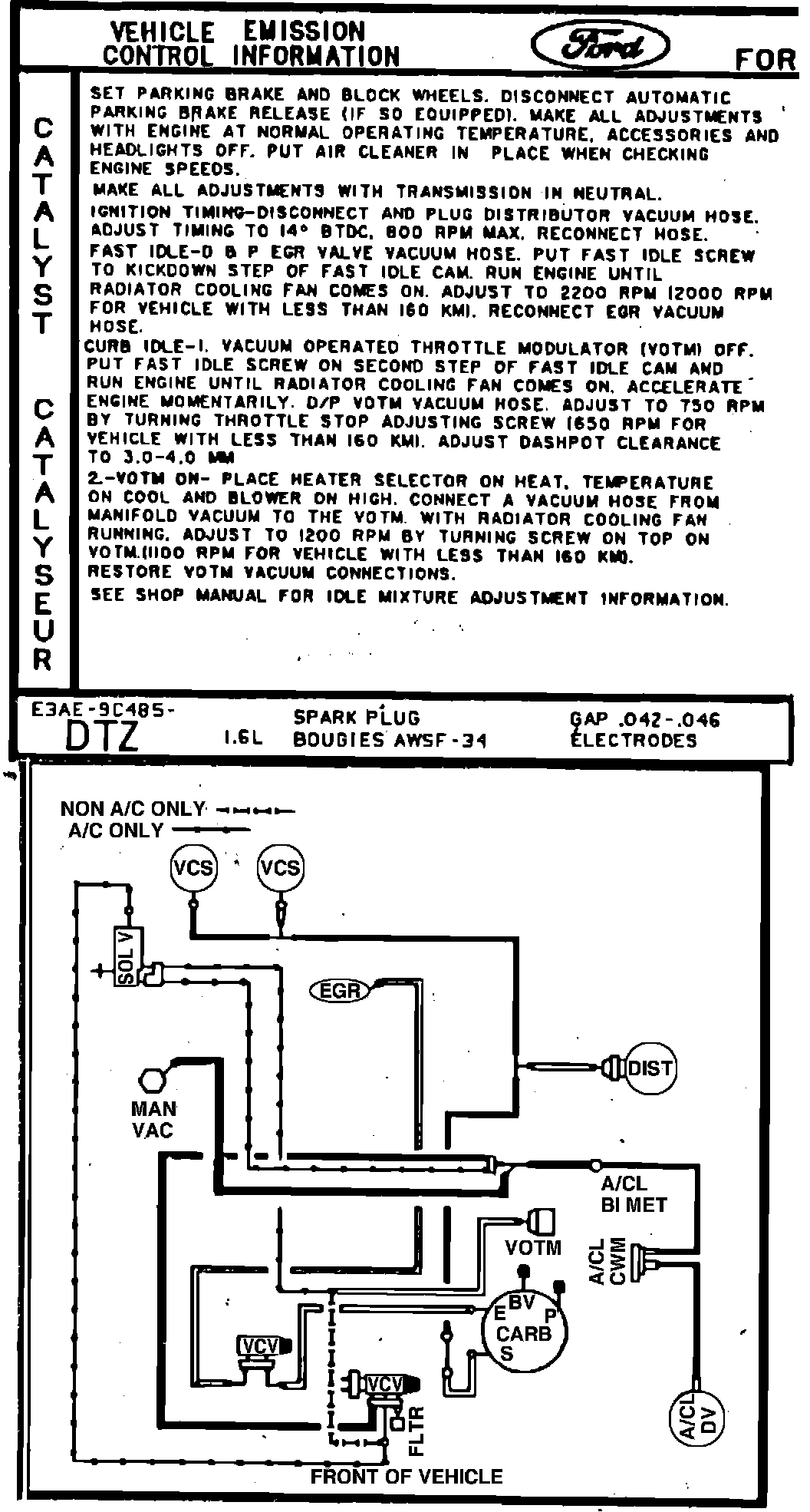

Calibration:3-03G-R00 Motorcraft 740 E3EE-9510-GA (A/C) E3EE-9510-Fa (Non A/C)

MODEL YEAR: 1983 ENGINE: 1.6L
CARBURETOR SPECIFICATIONS

Model: Motorcraft 740
Part Number: E3EE-9510-GA (A/C), E3EE-9510-FA (Non A/C)

CHOKE/FUEL ENRICHMENT SYSTEM
Pulldown Setting: 6.5 +/- .5 mm
Bi-Metal Identification: X-12
Fast Idle Cam Setting: 2.0 +/- .5 mm
De-Choke: 3.5 mm Minimum
Come-Off Time: 76-114 sec. @ 75~F,
400-600 sec. @ 0~F
Choke Cap Index Plate Color: Natural

FUEL INLET SYSTEM
Float Setting (Dry): 7.25-7.75 mm

MAIN METERING SYSTEM
Power Valve Timing: 3-6"
Main Jet (Primary): 1.05 mm
Main Jet (Secondary): 1.00 mm

DASHPOT CLEARANCE: 3.5 +/- .5 mm
DISTRIBUTOR SPECIFICATIONS Total Advance @ 2500 RPM Includes Initial Timing

Distributor Part No: E3EE-12127-KA
Initial Timing (~BTDC): 14
Vac Advance Connected: 40-51
Vac Advance Disconnected: 19-24

PROPANE SPECIFICATIONS (Set in Neutral)

Gain RPM: 20-200
Reset RPM: 80
