EEC-IV System Component Location

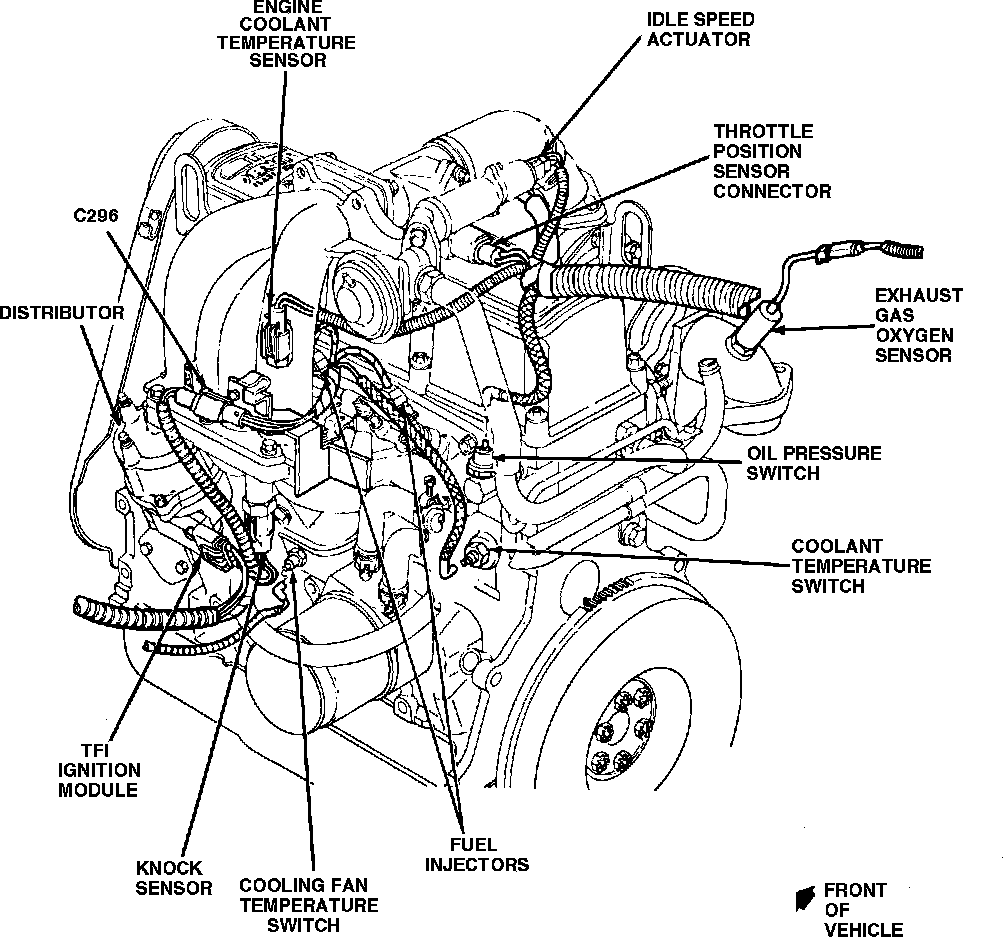

Fig. 11 EEC-IV system component location. 1983 4-140 turbo. EFI engine:
