Home >> Mercury >> 1983 >> Zephyr L4-140 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> 7.0 Thru 7.6 - Fuel Always Rich >> 7.3, 7.4 & 7.4A

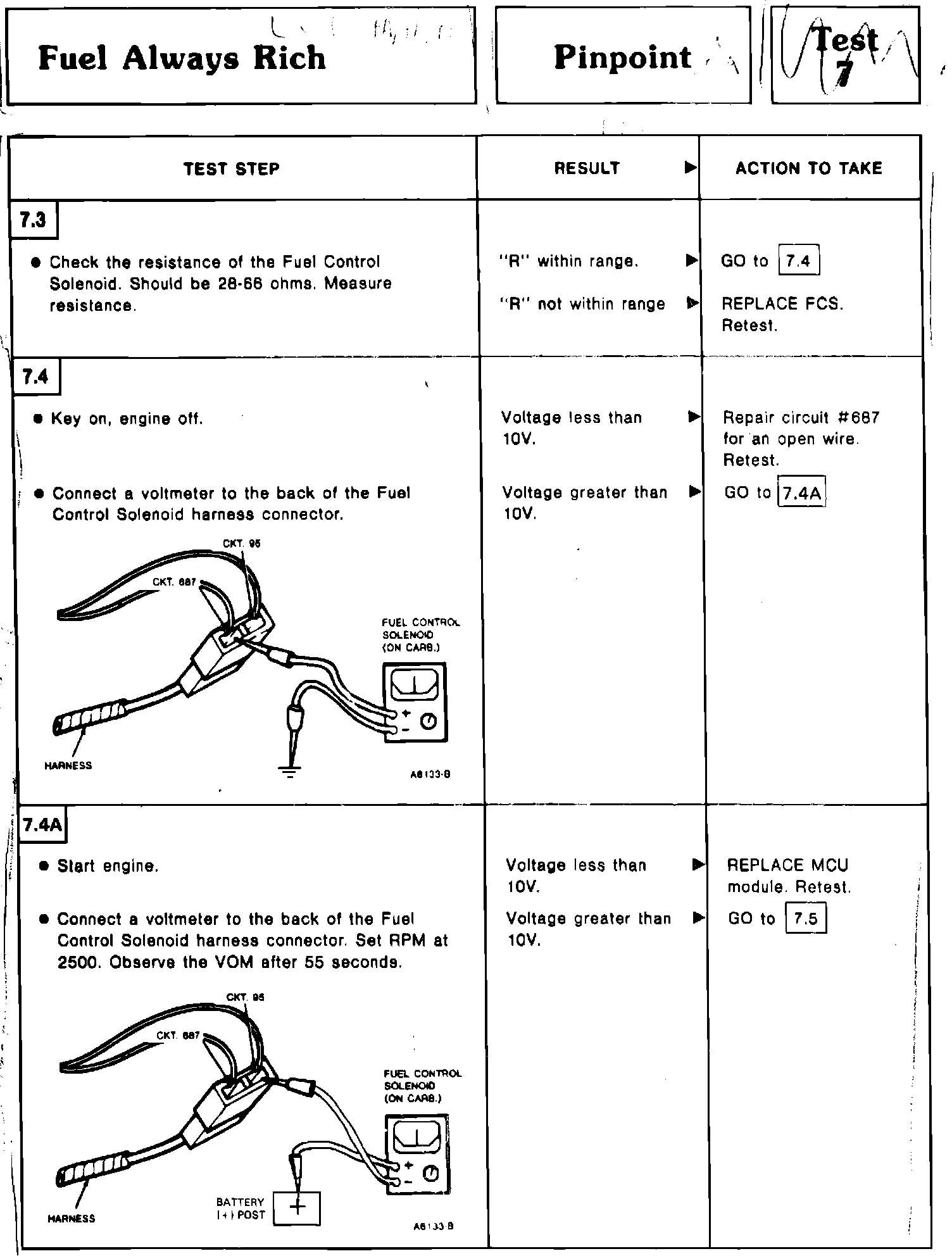

7.3, 7.4 & 7.4A





*** UPDATED BY TSB #83-19-6
