16.0 Thru 16.4 - Canister Purge Solenoid
>>

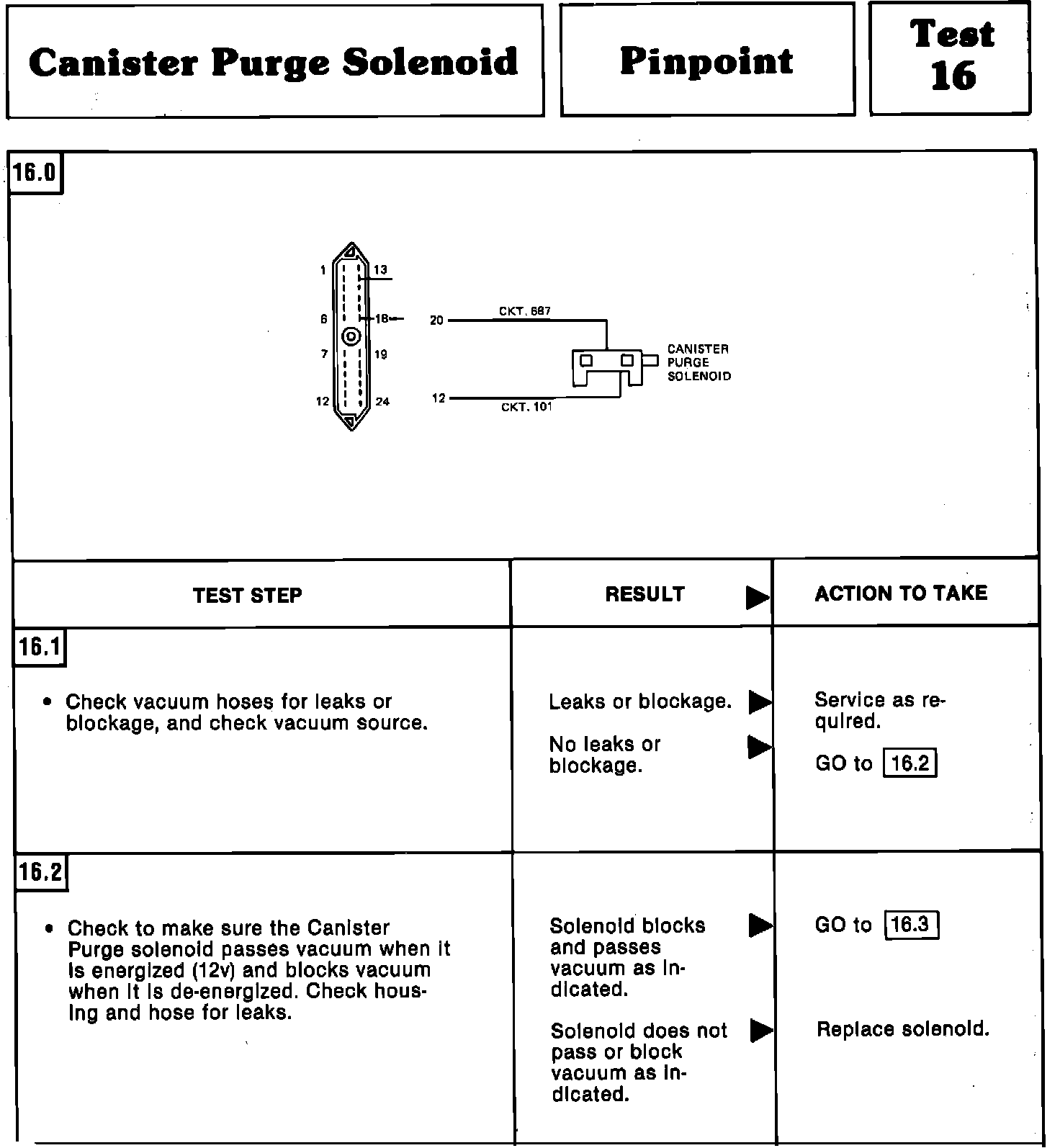

16.0 Wiring Diagram, 16.1 & 16.2
16.0 Wiring Diagram, 16.1 & 16.2
