Electronic Climate Control

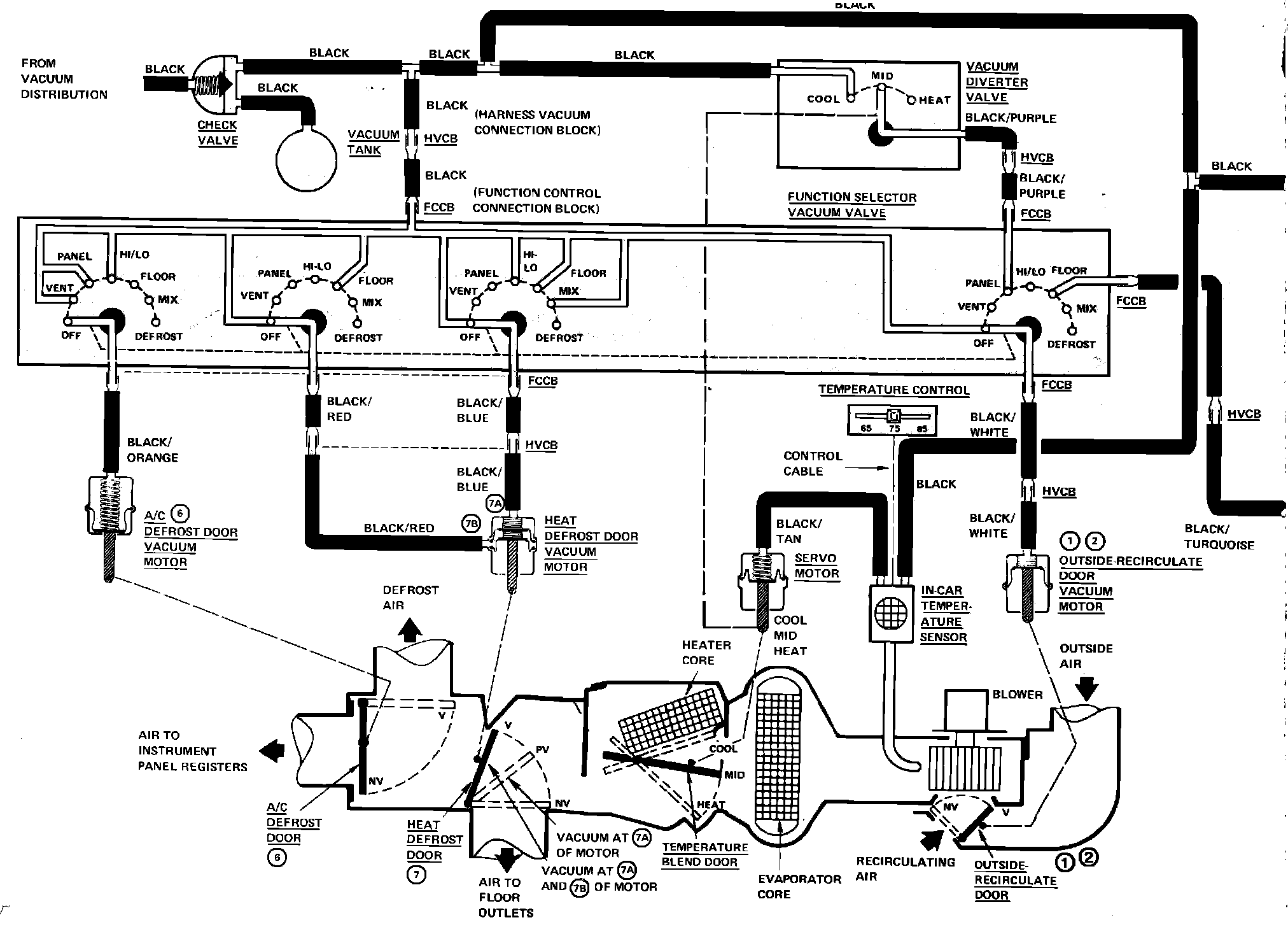

Fig. 4 Air Conditioning & Heater Vacuum Circuit. 1983-84 LTD & Marquis With Automatic Temperature Control:
