With Conventional Stereo Radio

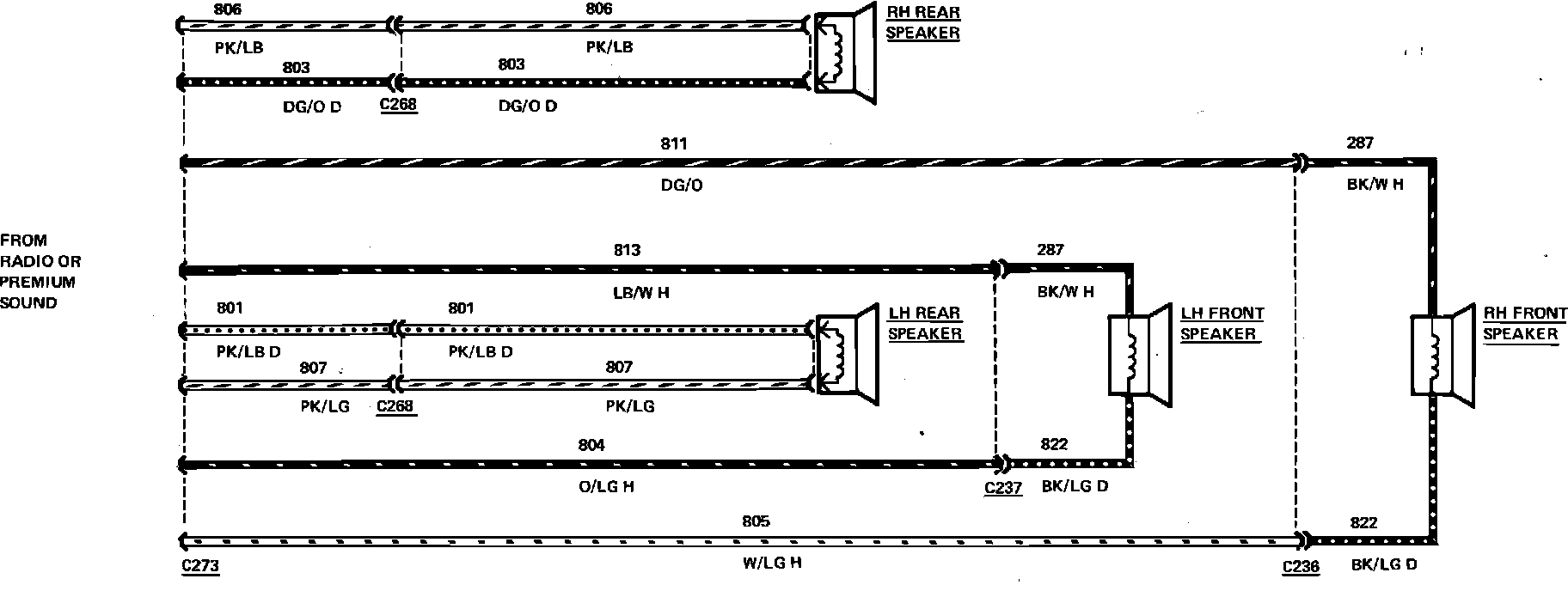

Fig. 71 Radio & Speaker Wiring Circuit (Part 1 of 2). 1983 LTD & Marquis with Conventional Stereo Radio with Premium Sound:

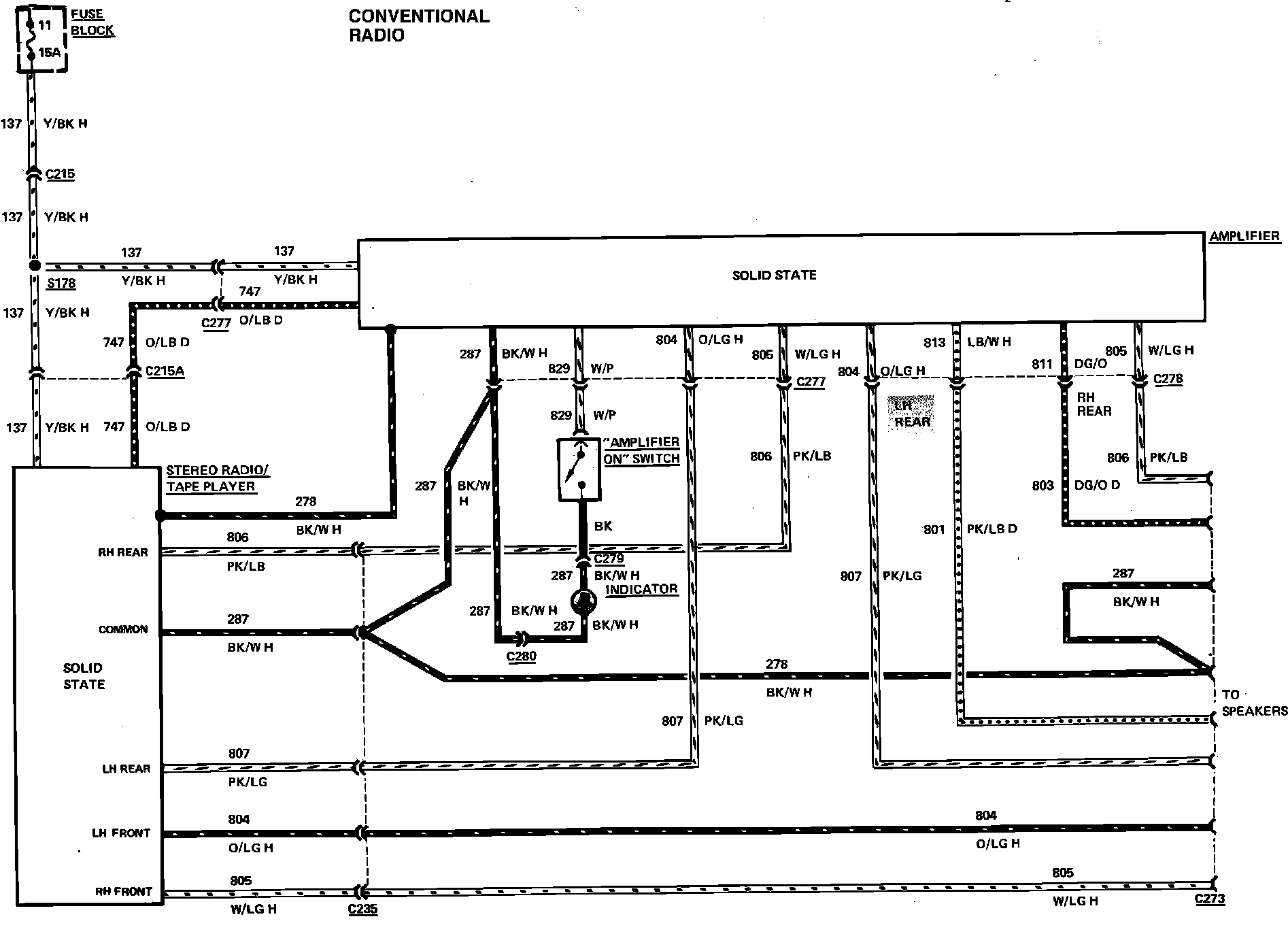

Fig. 71 Radio & Speaker Wiring Circuit (Part 2 of 2). 1983 LTD & Marquis with Conventional Stereo Radio with Premium Sound:
