With Electronic Instrument Cluster

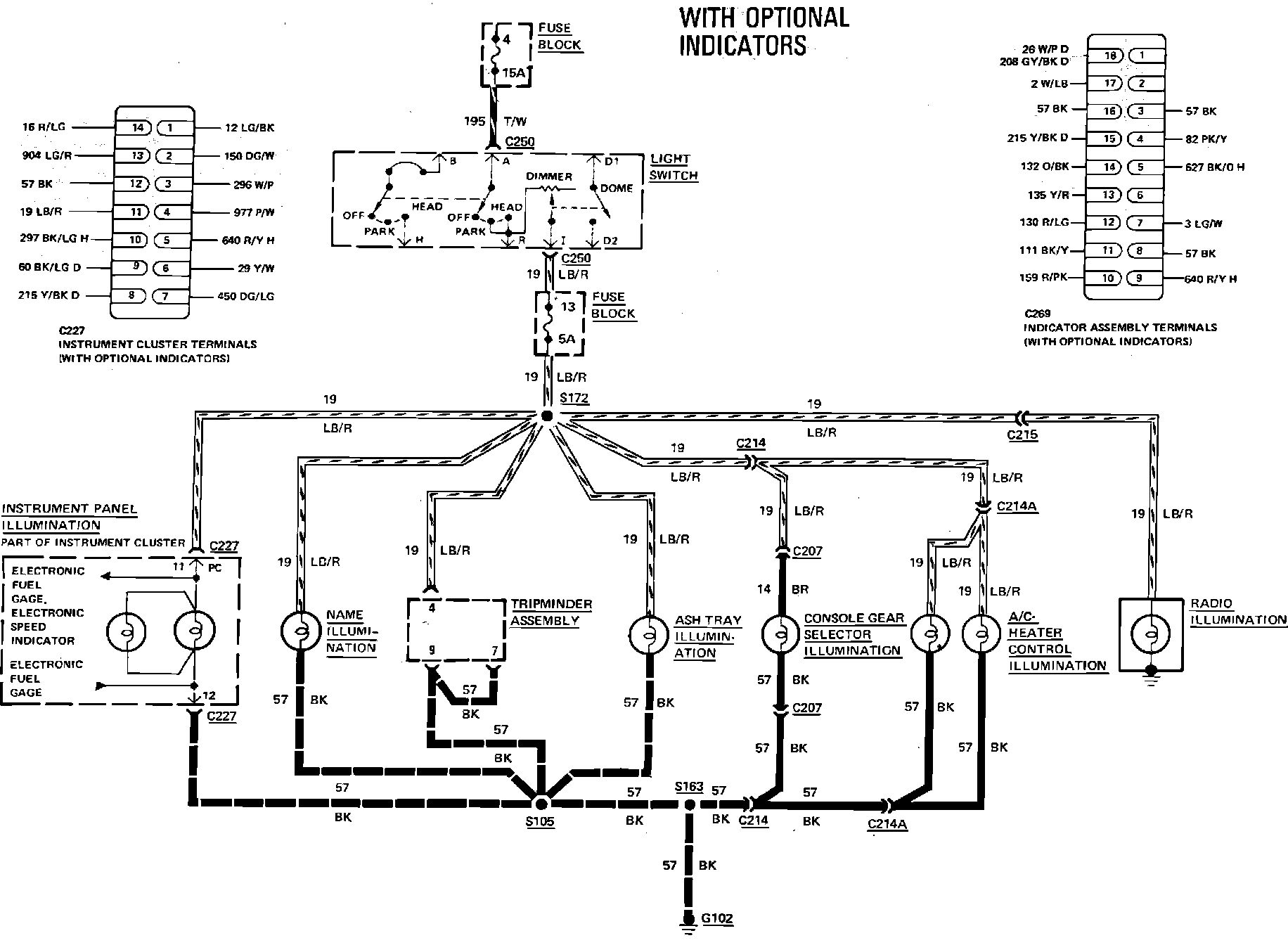

Fig. 43 Instrument Panel Illumination Wiring Circuit. 1983-84 LTD & Marquis with Electronic Cluster:
