Marquis V6-232 3.8L VIN 3 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Instrument Panel Illumination
>>
Instrument Illumination (Analog Cluster) Wiring Circuit
Instrument Illumination (Analog Cluster) Wiring Circuit

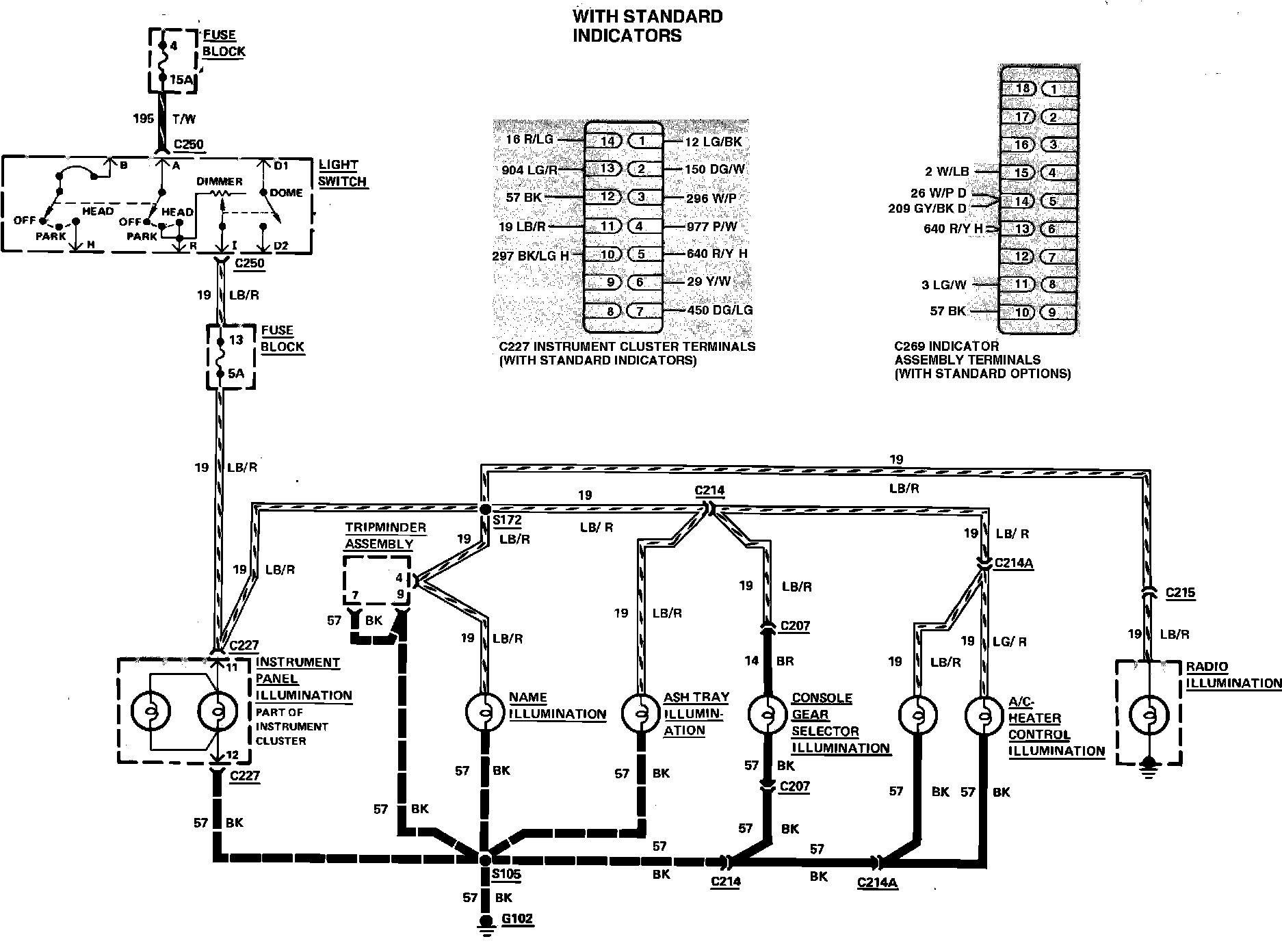

Fig. 42 Instrument Panel Illumination Wiring Circuit. 1983-84 LTD & Marquis less Electronic Cluster:
