Without Automatic Temperature Control (ATC)

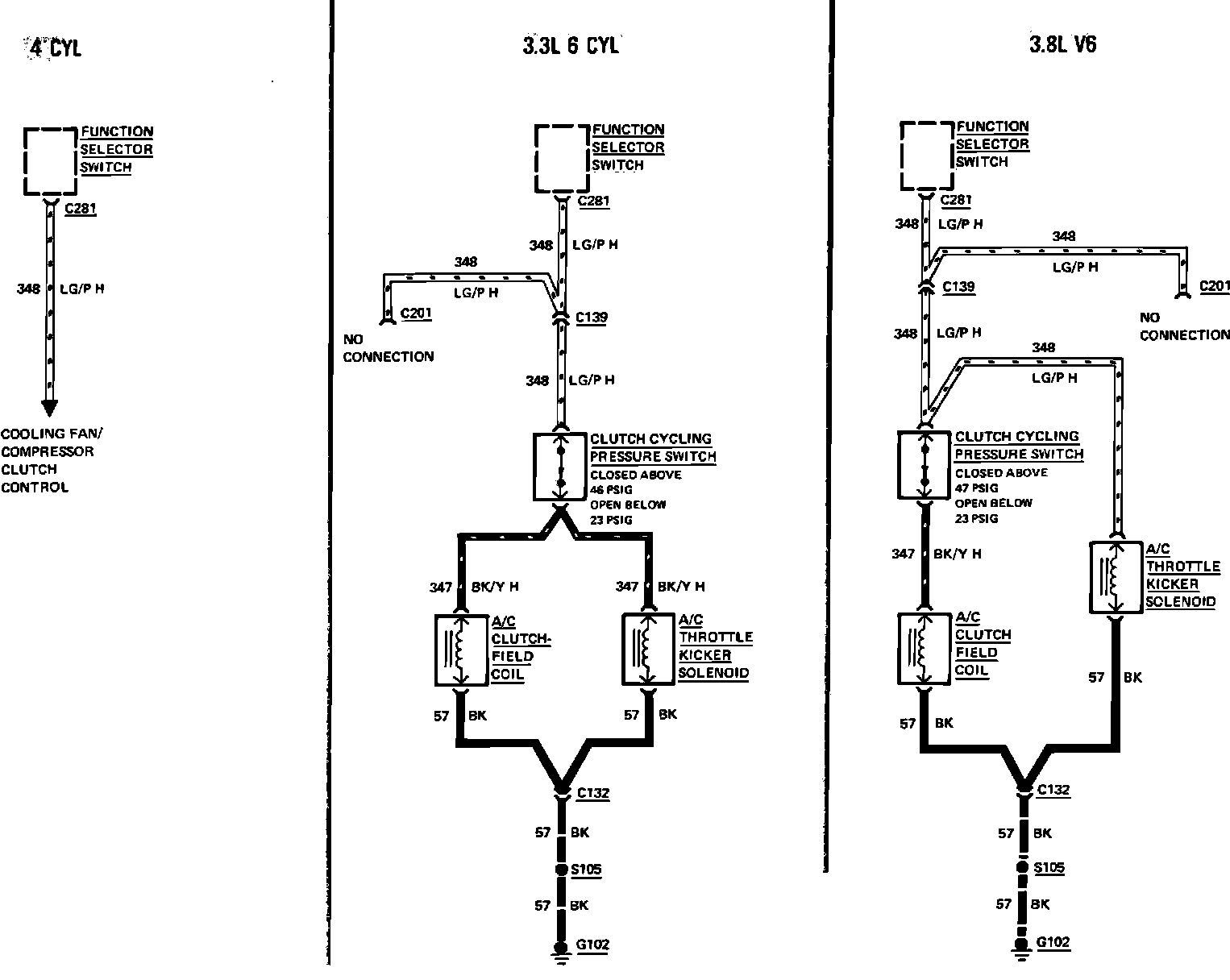

Fig. 6 Air Conditioning Compressor Clutch & Cooling Fan Wiring Circuit (Part 1 of 2). 1983 LTD & Marquis:

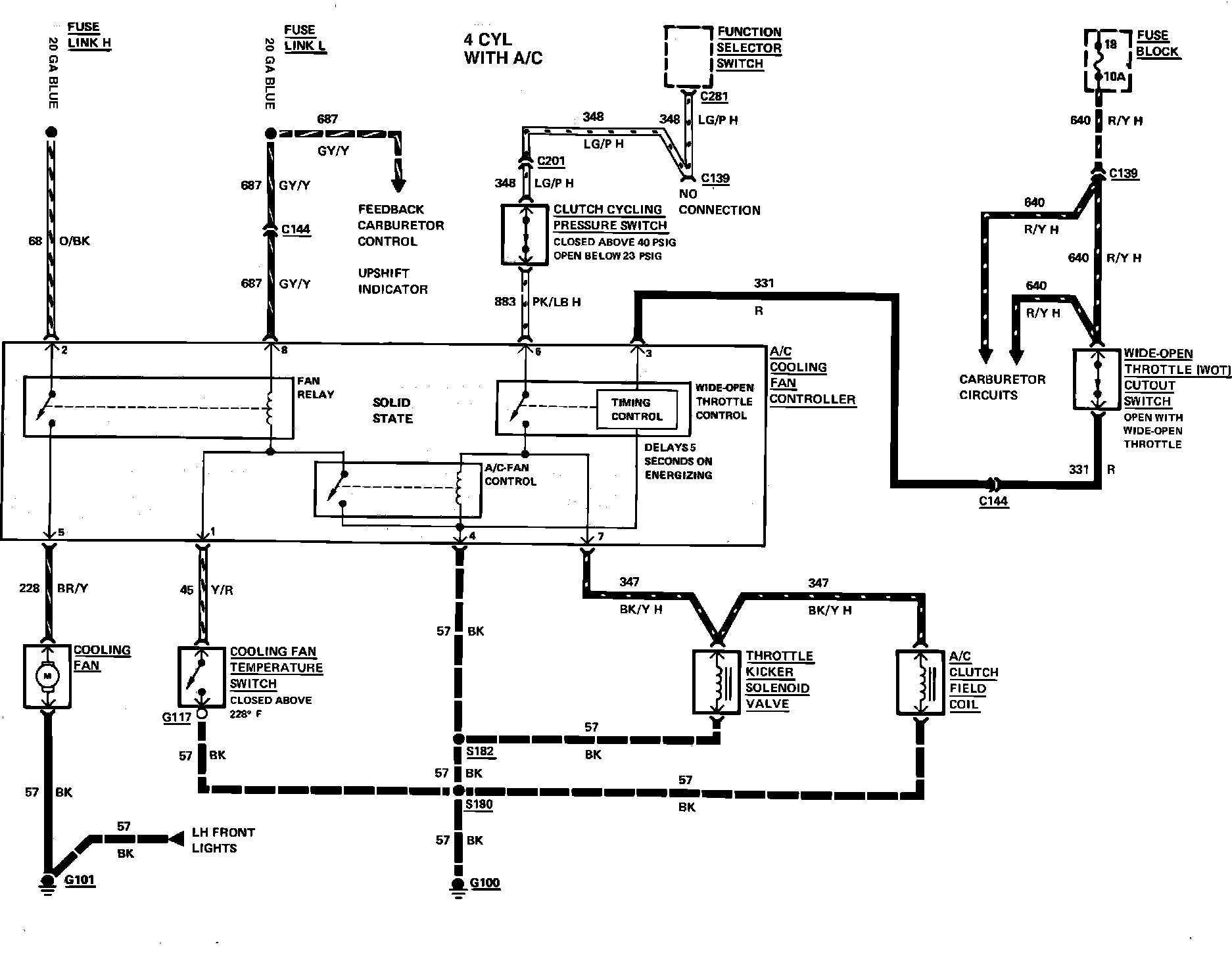

Fig. 6 Air Conditioning Compressor Clutch & Cooling Fan Wiring Circuit (Part 2 of 2). 1983 LTD & Marquis:
