Charging System
Charging System

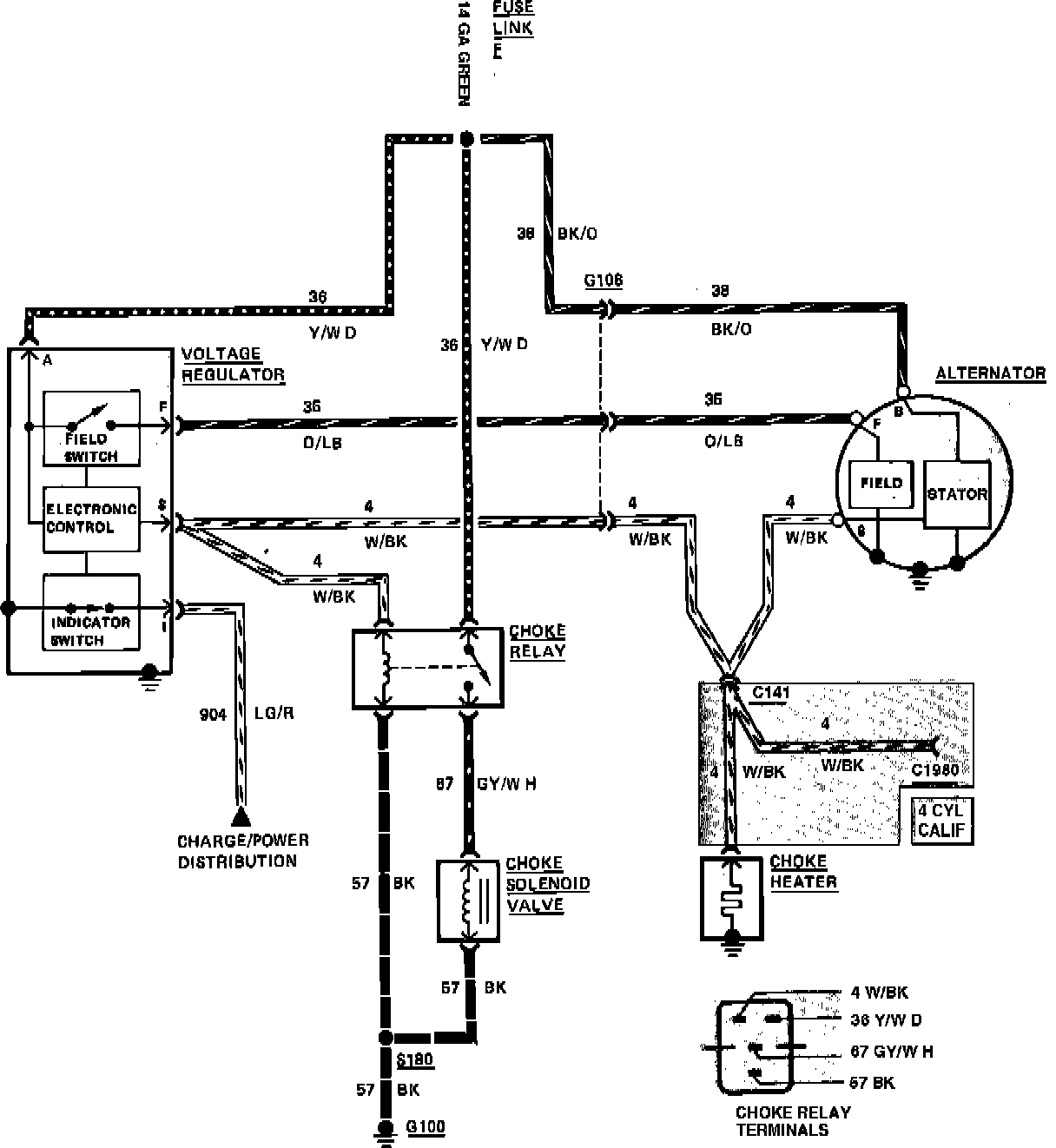

Fig. 18 Charging System & Restart Choke Control Wiring Circuit. 1983 LTD & Marquis with 4 Cyl. Engine:
