Home >> Mercury >> 1983 >> Marquis L4-140 2.3L VIN A 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Fuel Delivery and Air Induction >> System Diagram >> Carburetor Wiring Circuit >> Federal Emission & Automatic Transmission

Federal Emission & Automatic Transmission

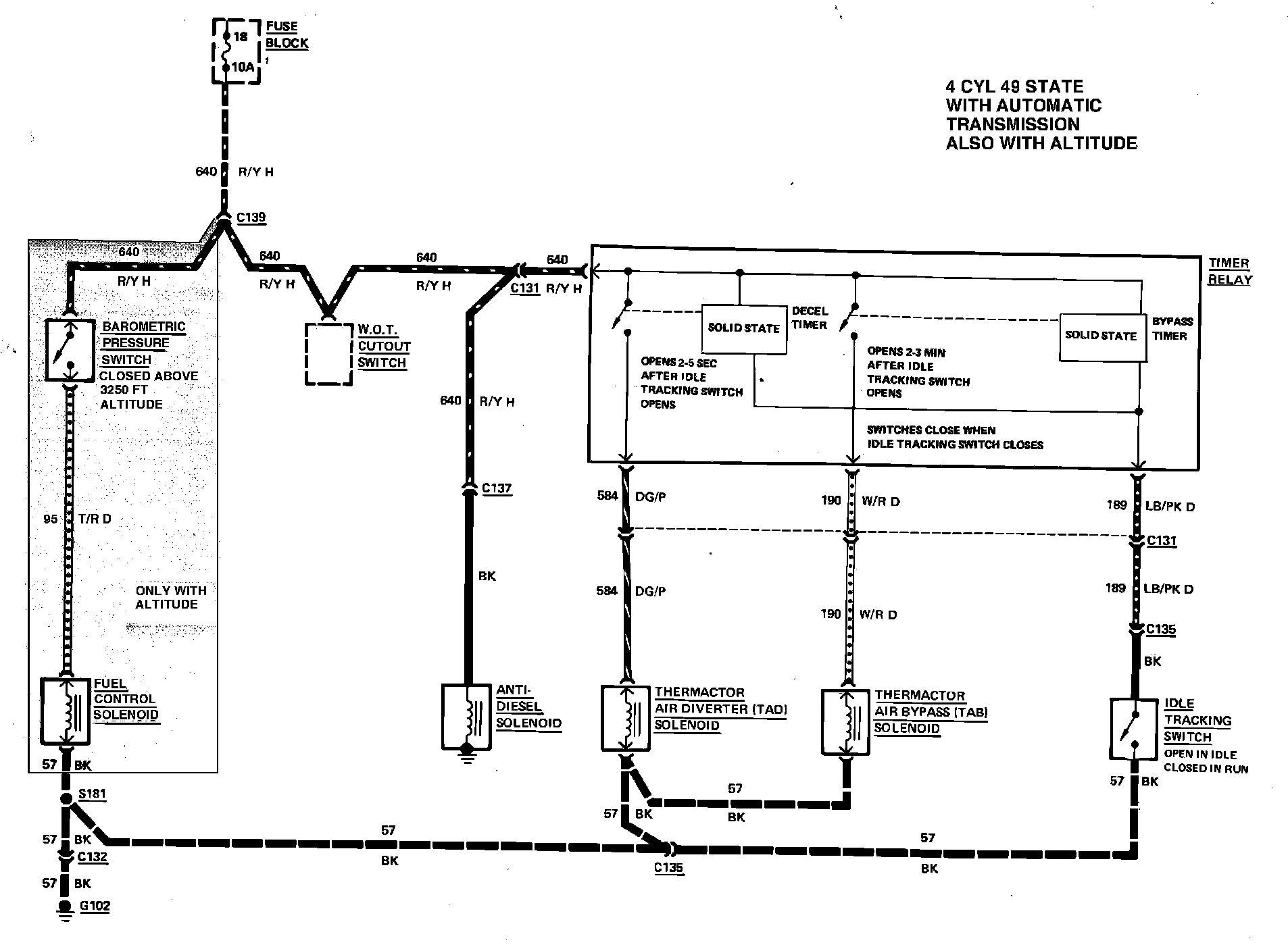

Fig. 16 Carburetor Wiring Circuit. 1983 LTD & Marquis with 4 Cyl. Engine, Federal Emissions & Automatic Transmission:
