Door/Trunk Ajar Indicator/Lamp

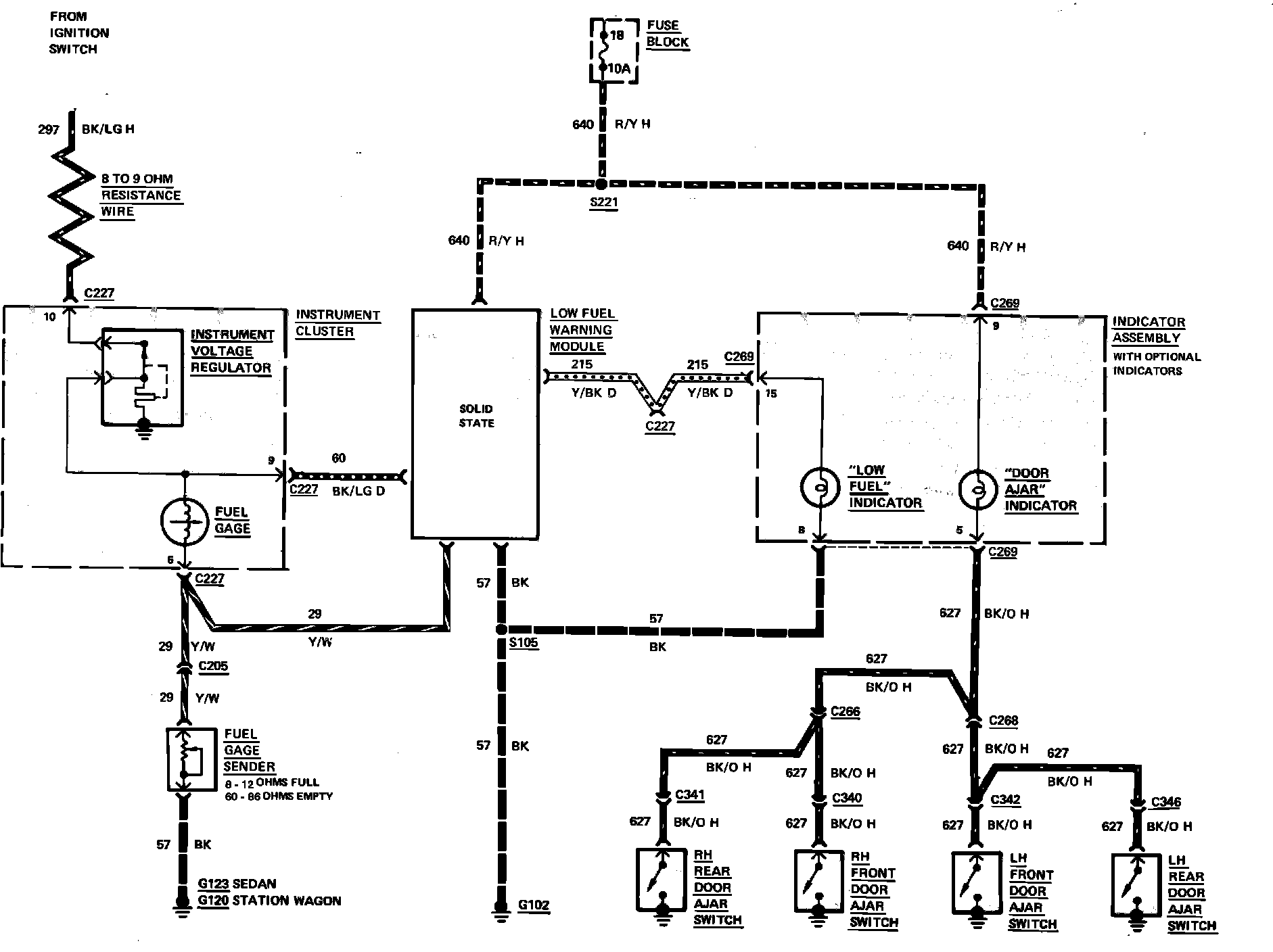

Fig. 27 Door Ajar Indicator, Fuel Gauge & Low Fuel Warning Wiring Circuit. 1983 LTD & Marquis:
