System Diagram

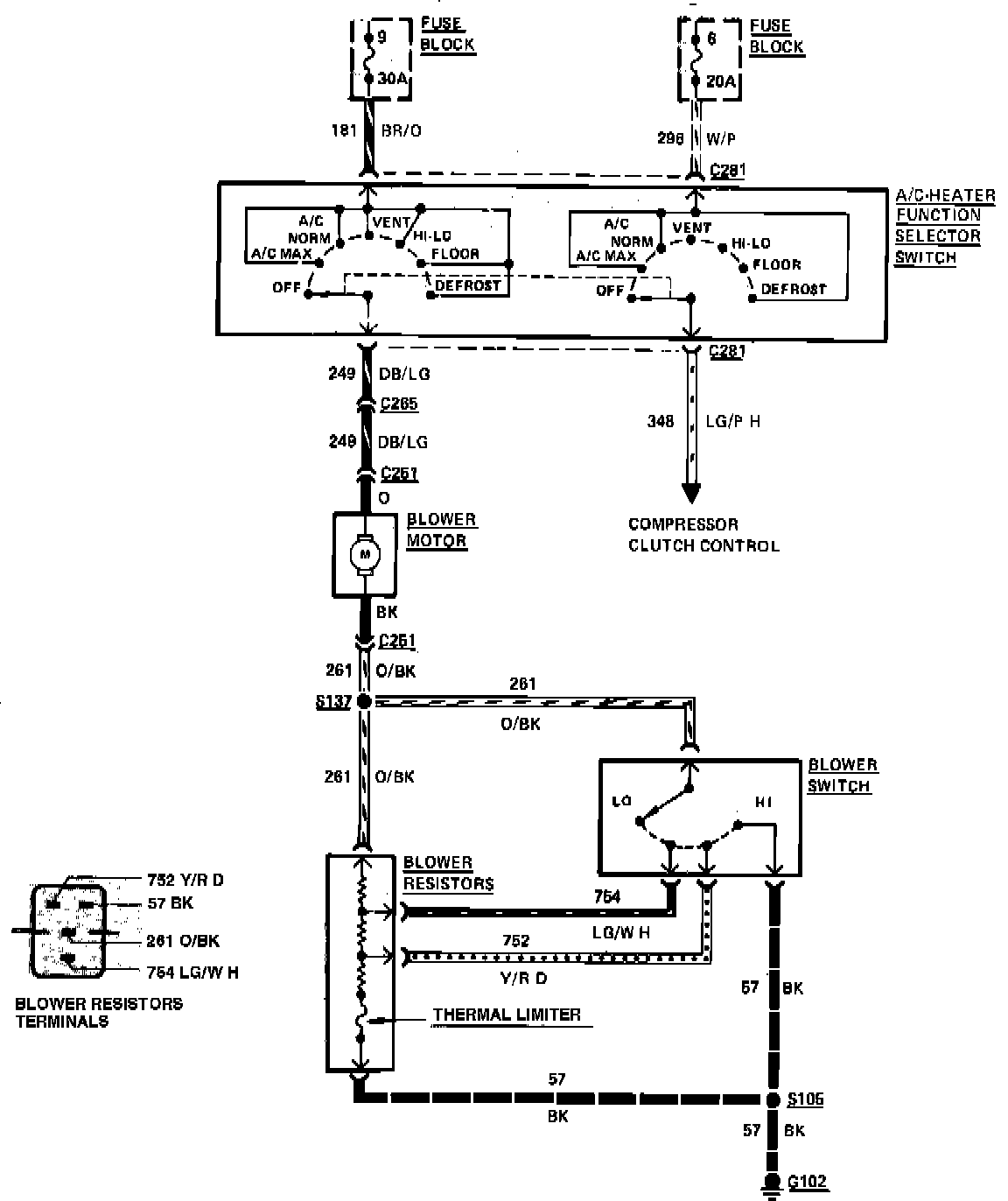

Fig. 8 Air Conditioning & Heater Wiring Circuit. 1983 LTD & Marquis less Automatic Temperature Control:
