Mercury
>>
1983
>>
Marquis L4-140 2.3L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
System Diagram
>>
With Automatic Temperature Control (ATC)
With Automatic Temperature Control (ATC)

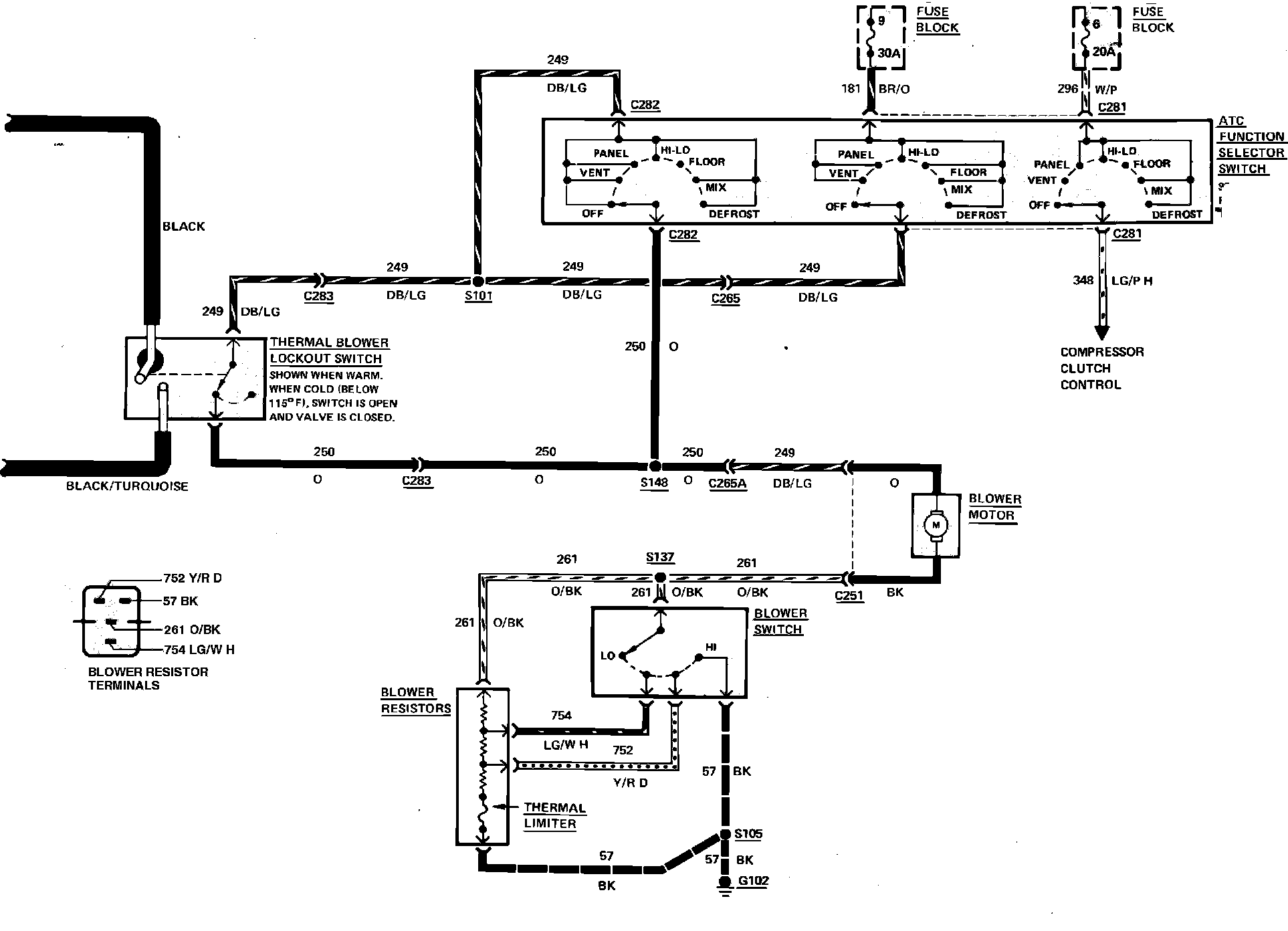

Fig. 9 Air Conditioning & Heater Wiring Circuit. 1983 LTD & Marquis with Automatic Temperature Control:
