Speed Control Vacuum and Wiring Circuit
Speed Control Vacuum and Wiring Circuit

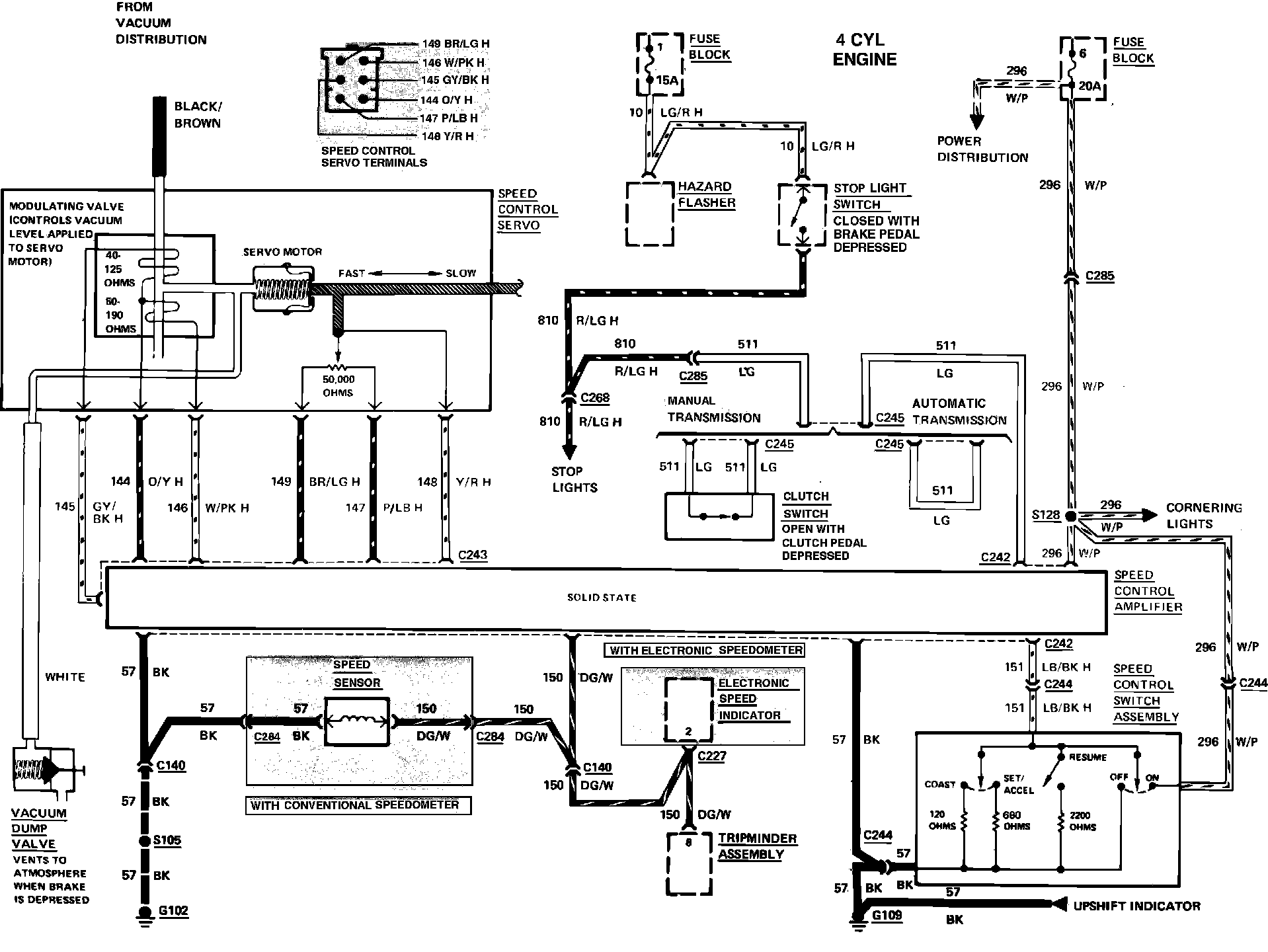

Fig. 78 Speed Control Wiring Circuit. 1983 LTD & Marquis with 4 Cyl. Engine:
