With Fuel Economy Package

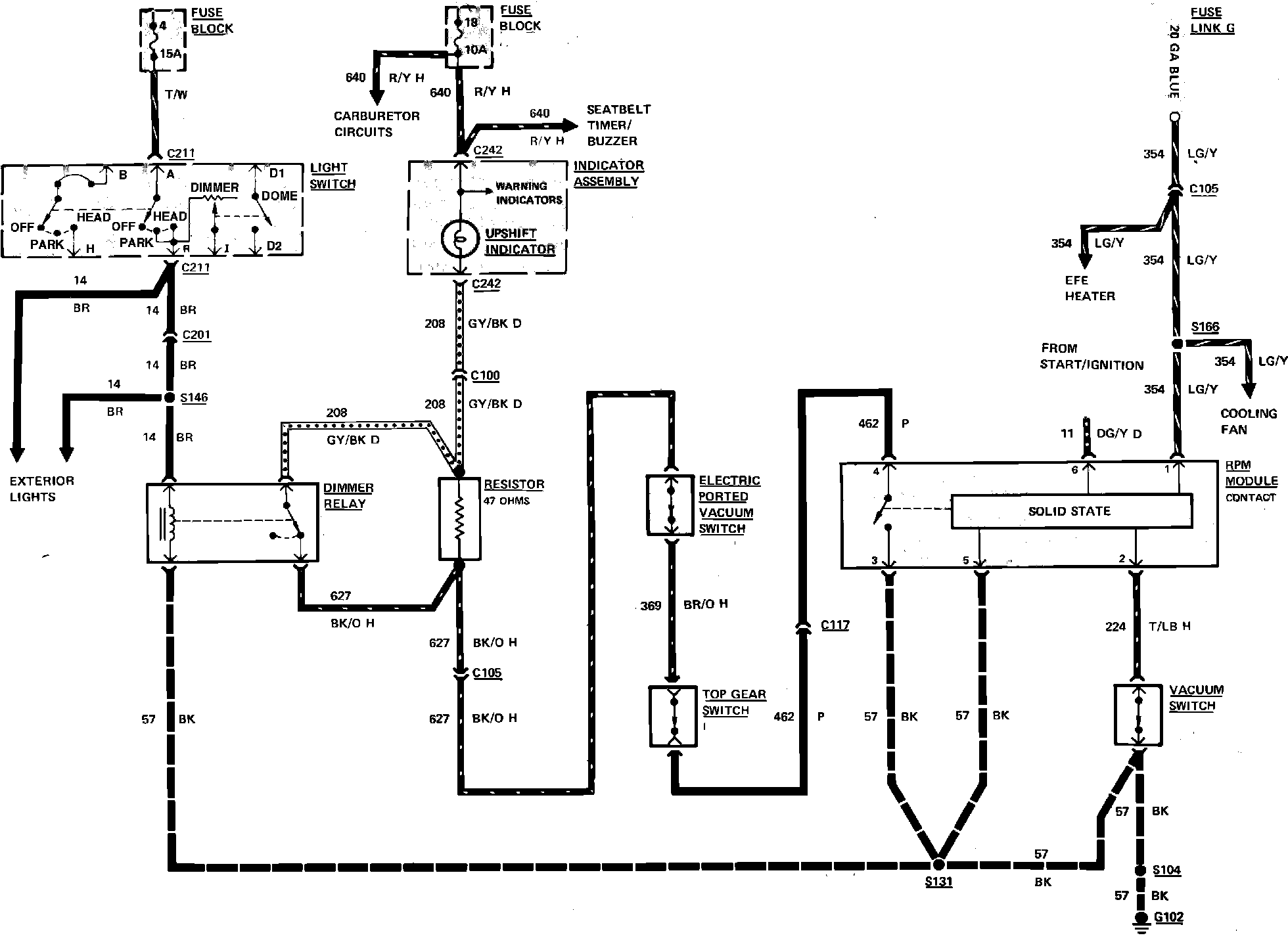

Fig. 91 Shift indicator wiring circuit. 1983 Escort, EXP, Lynx & LN7 with fuel economy package:
