Escort GT, EXP, Lynx RS & LN7

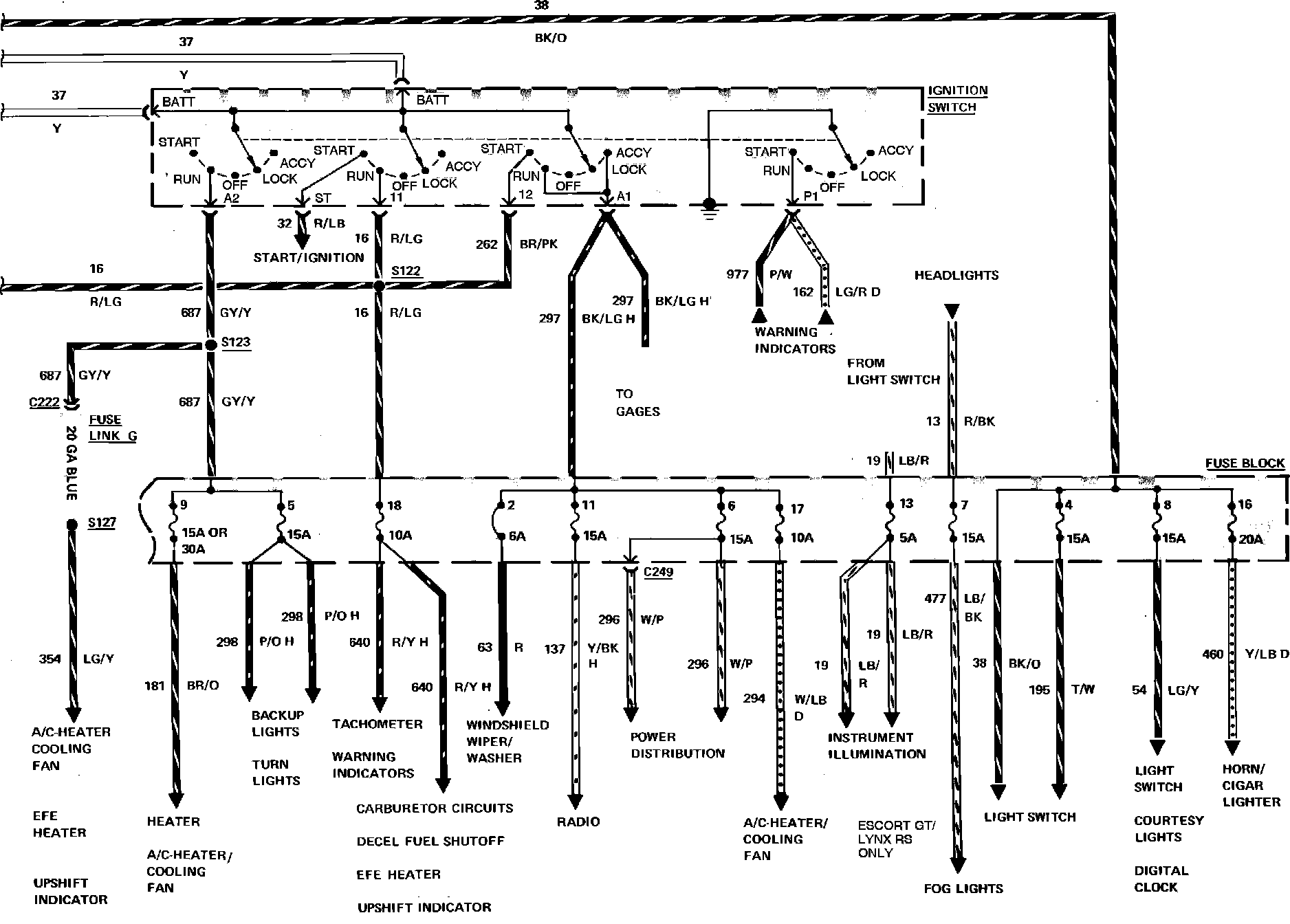

Fig. 20 Charging system & power distribution wiring circuit (Part 1 of 2). 1983 Escort GT, EXP & Lynx RS & LN7:

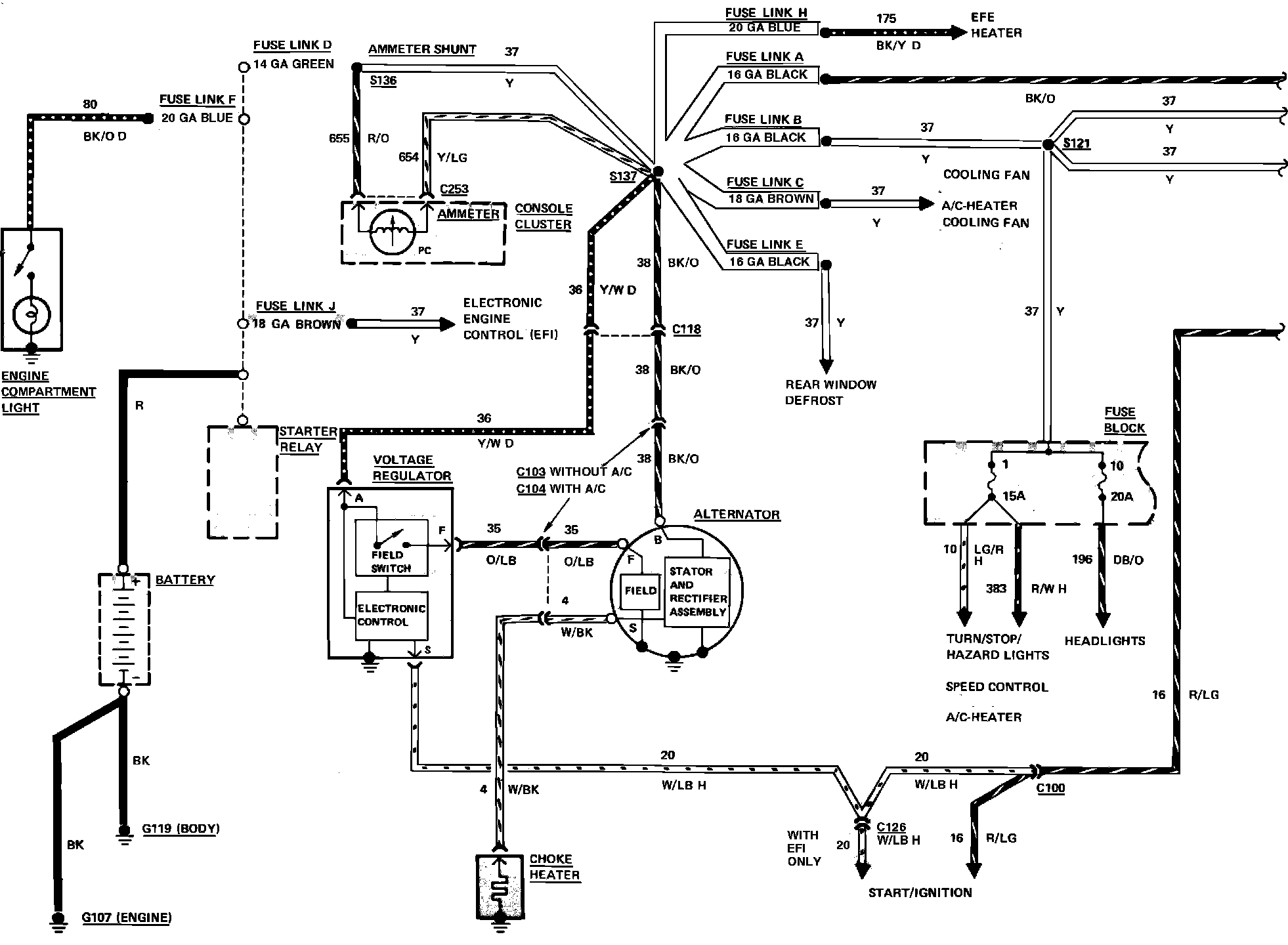

Fig. 20 Charging system & power distribution wiring circuit (Part 2 of 2). 1983 Escort GT, EXP & Lynx RS & LN7:
