Mercury
>>
1983
>>
LN7 L4-98 1.6L VIN 5 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Early Fuel Evaporation ( EFE )
>>
Diagrams
>>
Electrical Diagrams
>>
With Manual Transaxle and Air Conditioning
With Manual Transaxle and Air Conditioning

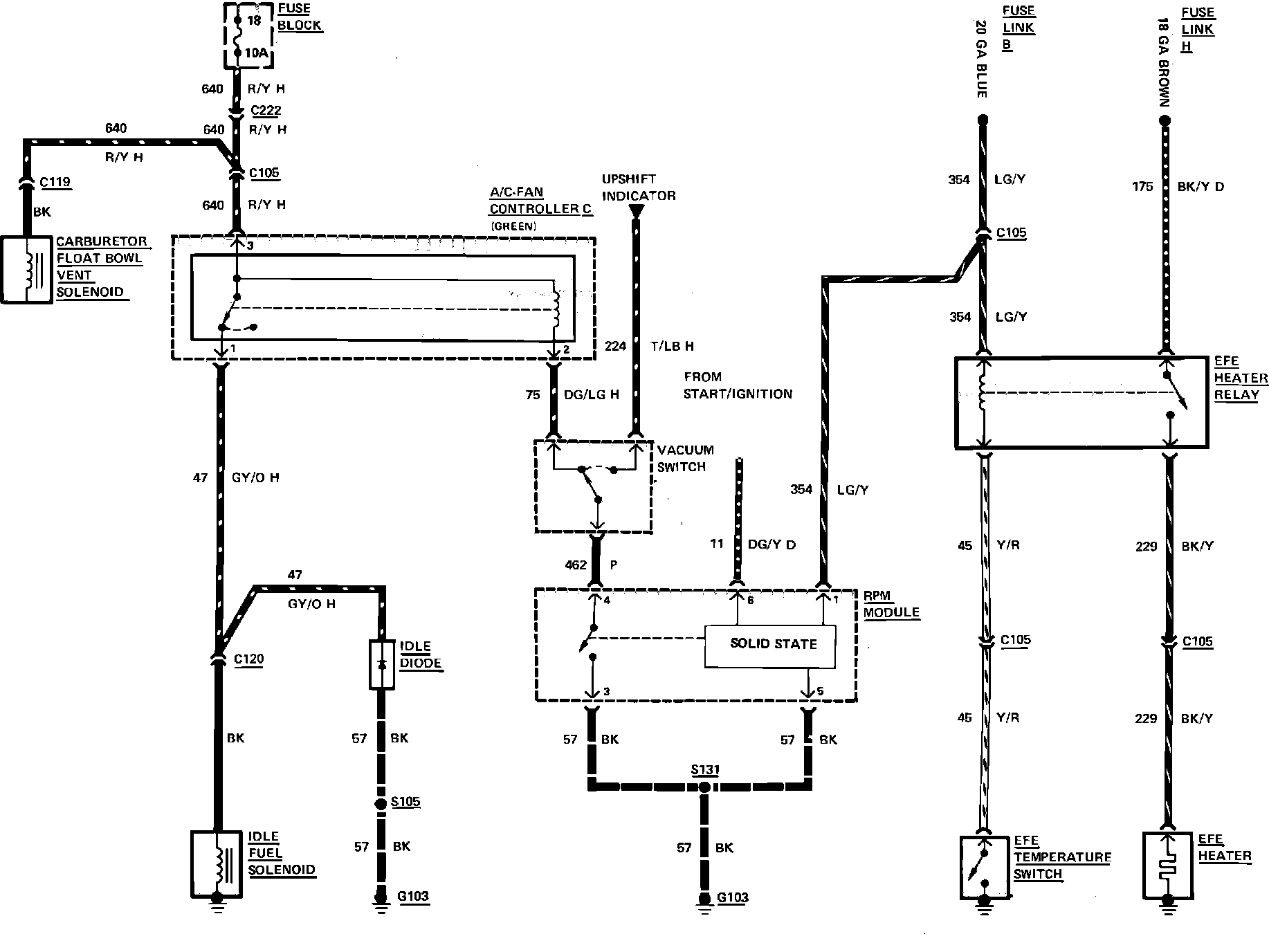

Fig. 35 Early fuel evaportionh & fuel shut-off wiring circuit. 1983 Escort, EXP, Lynx & LN7 with manual transaxle & air conditioning less fuel economy package:
