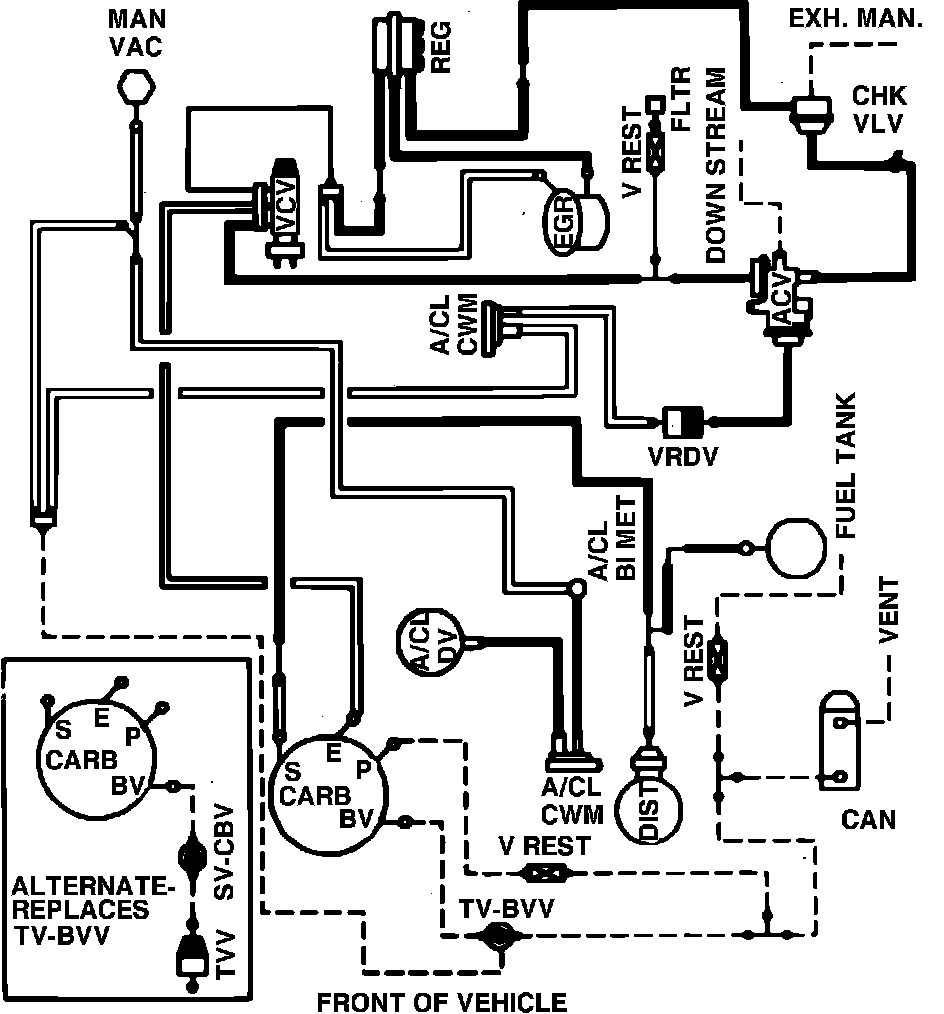

Fig. 7 Calib. Code 3-03D-R01 Federal, Exc. High Alt, EXP & LN7
Fig. 7 Calib. Code 3-03D-R01 Federal, Exc. High Alt, EXP & LN7
Vacuum hose routing:
