FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1983
>>
LN7 L4-98 1.6L VIN 5 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>

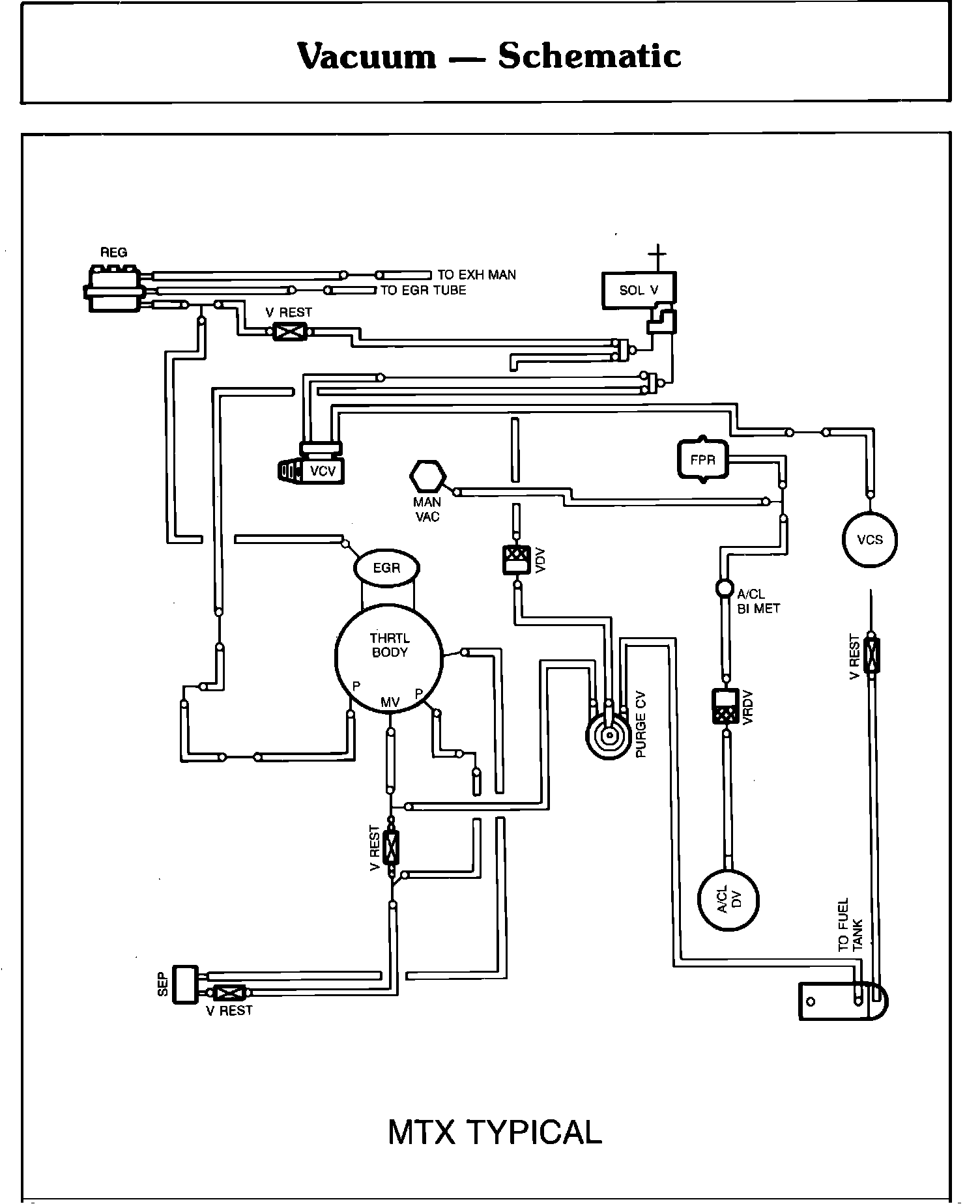

EEC-IV Vacuum Hose Routing
>>
EFI Engine, Manual
EFI Engine, Manual
EEC-IV Manual Transmission:
