Home >> Mercury >> 1983 >> LN7 L4-98 1.6L VIN 5 FI >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> EEC-IV Vacuum Hose Routing >> EFI Engine, Automatic

EFI Engine, Automatic

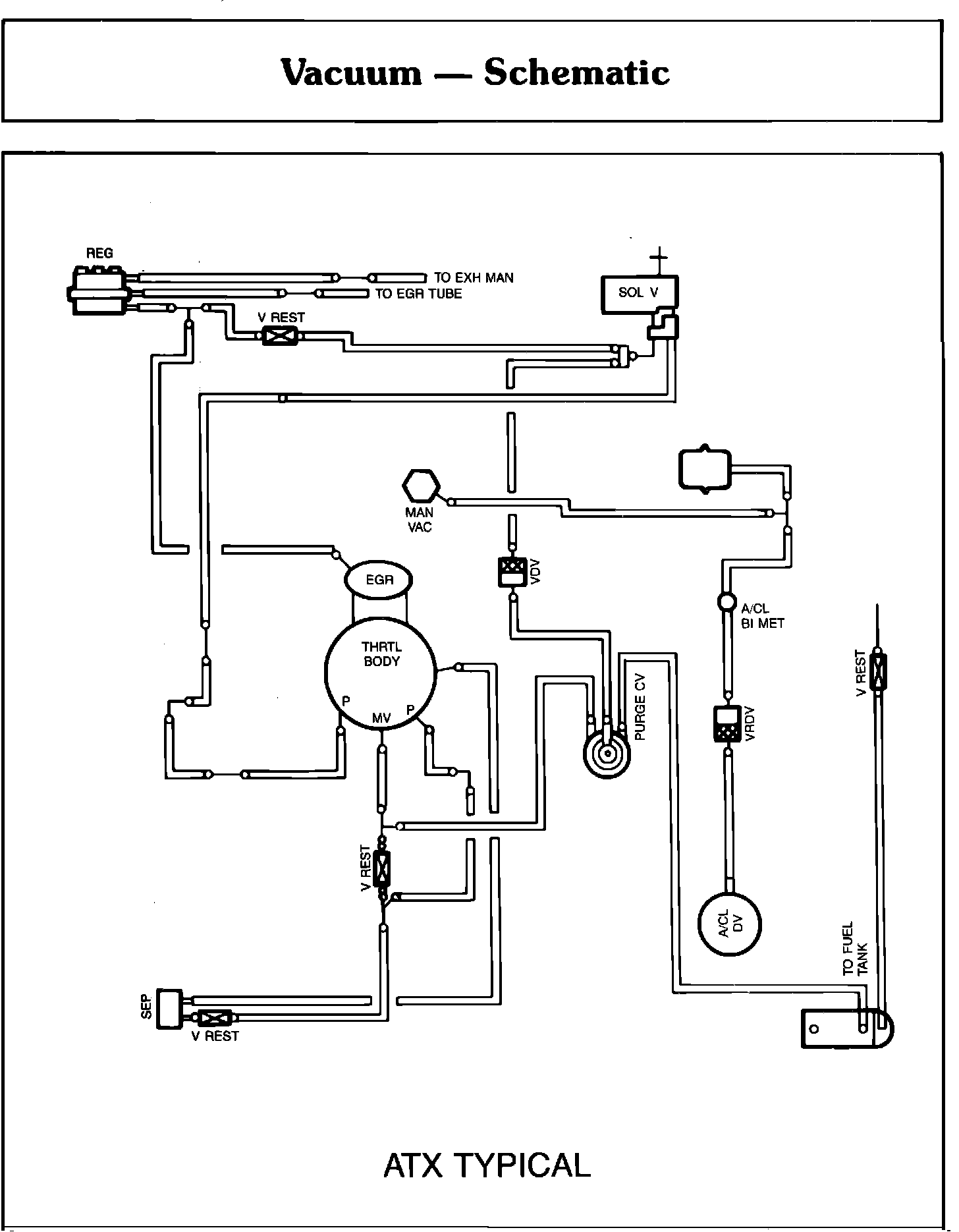

EEC-IV Automatic:
