Dynamic Response (Goose) Code Description

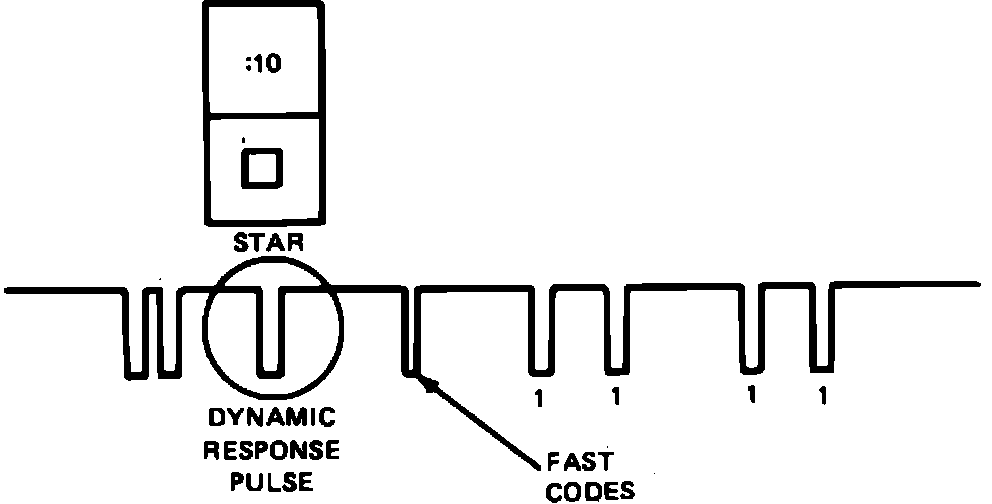

Fig. 31 Self-test code output format. Dynamic response check:

The dynamic response check verifies the movement of the TP, VAF and MAP sensors during the brief wide open throttle application performed during the engine running test. The signal for the test is a single pulse (on voltmeter) or code 10 on the STAR tester, Fig. 31.
