Air Conditioning/Heater

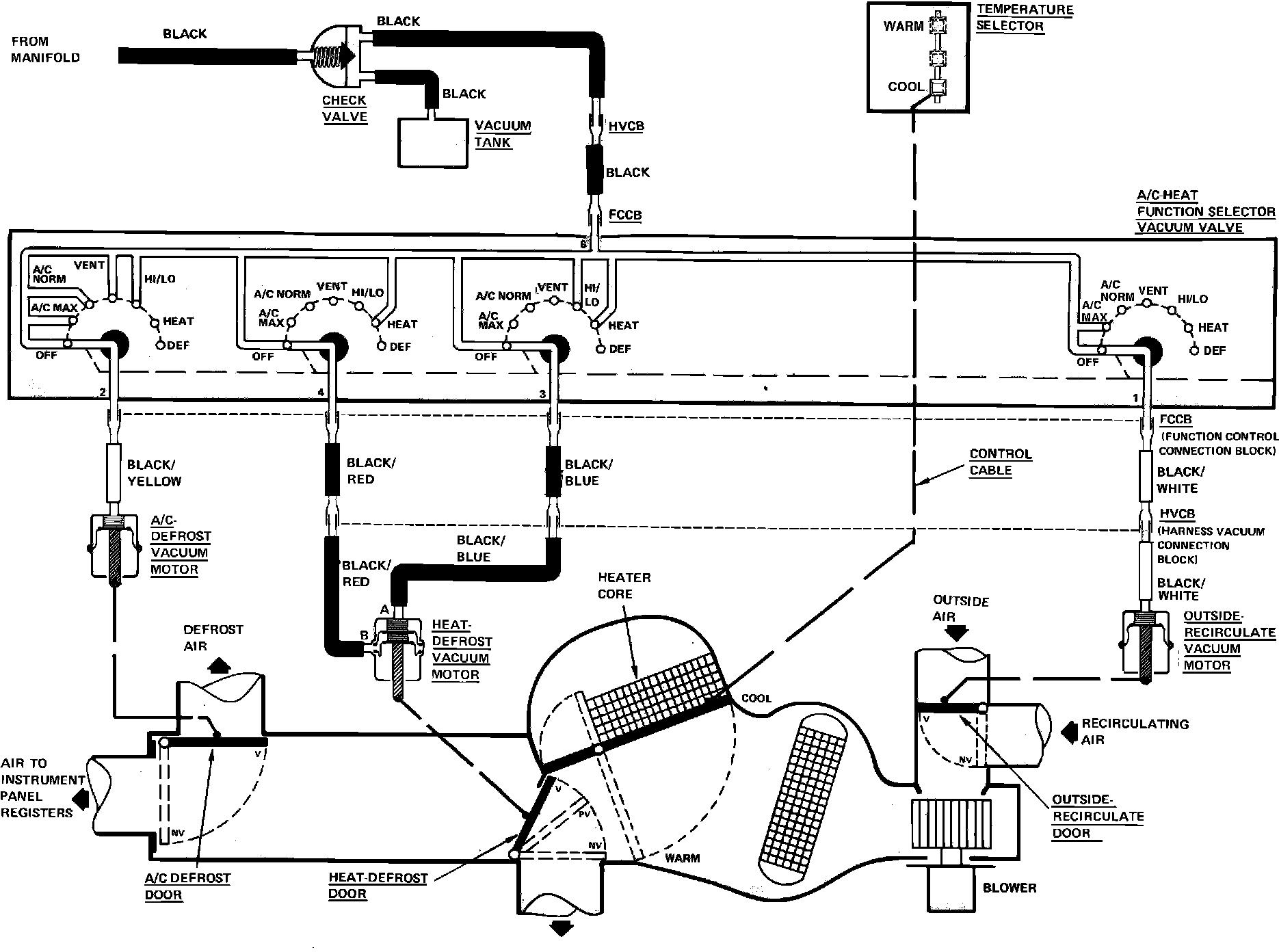

Fig. 5 Air conditioning & heater vacuum circuit. 1983 Escort, EXP, Lynx & LN7:
