Home >> Mercury >> 1983 >> LN7 L4-98 1.6L VIN 5 FI >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Emission Control Systems >> Fig. 10 Calib. Code 3-04Y-R0 High Alt.

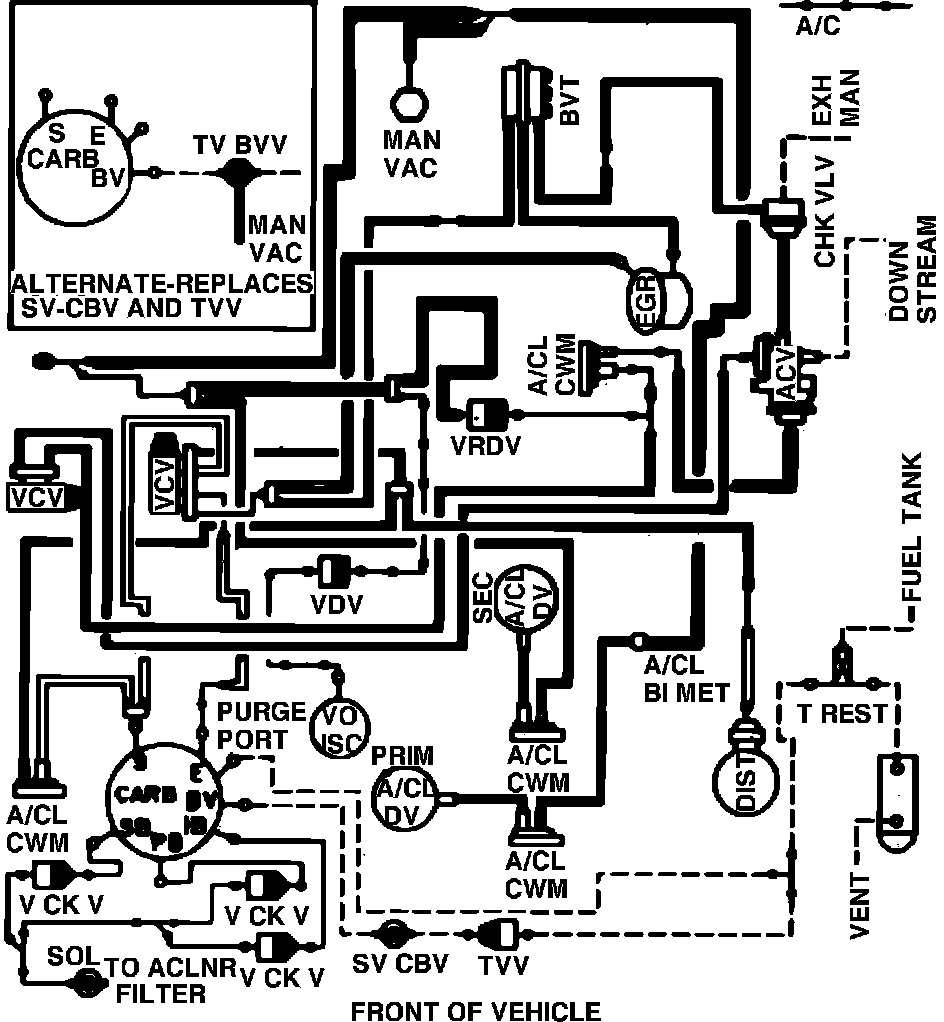

Fig. 10 Calib. Code 3-04Y-R0 High Alt.

Vacuum hose routing:
