Graphic Display Warning Indicator Wiring Diagram

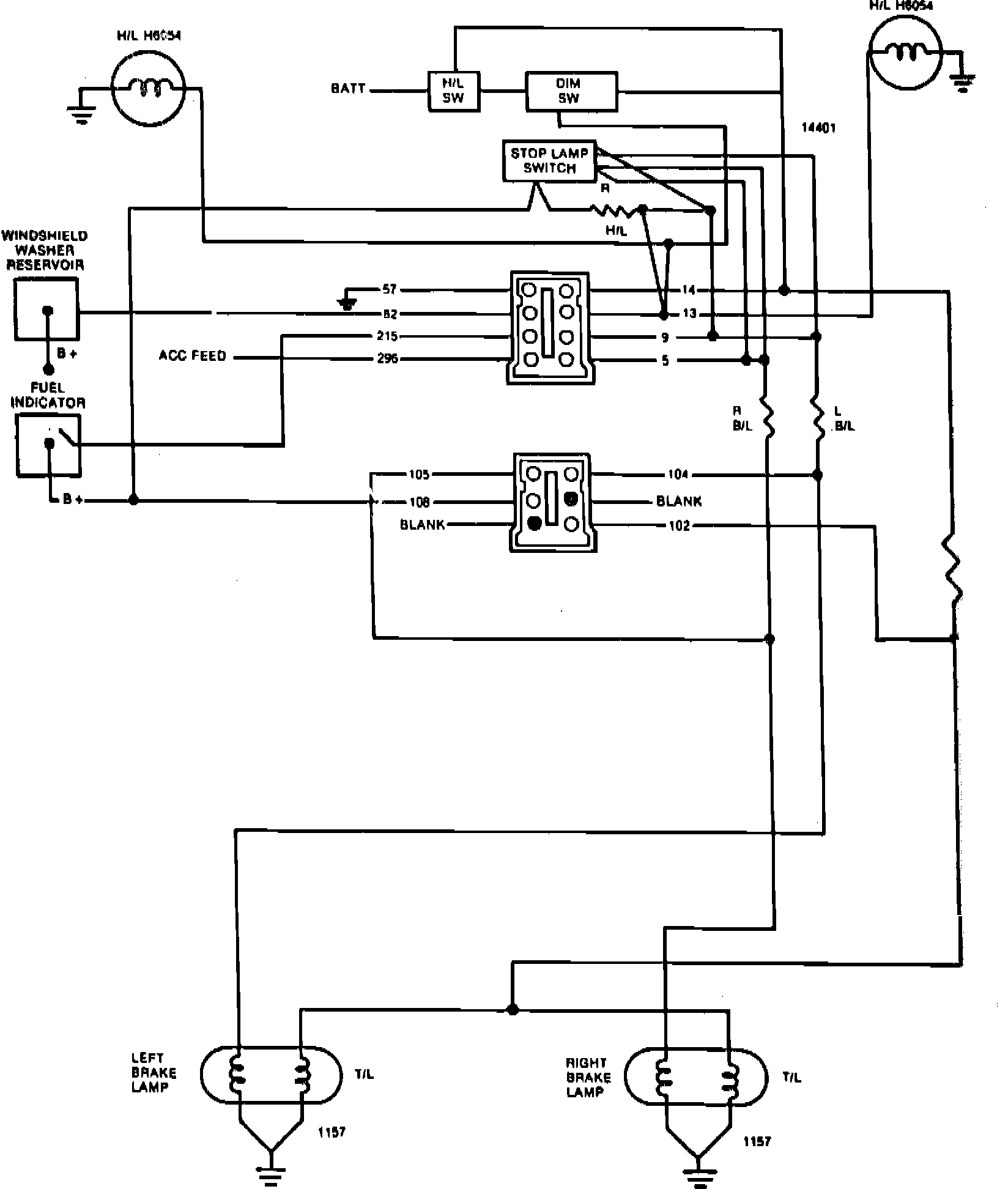

Fig. 4 Graphic display warning indicator wiring diagram. 1982---83 Escort & Lynx base model:

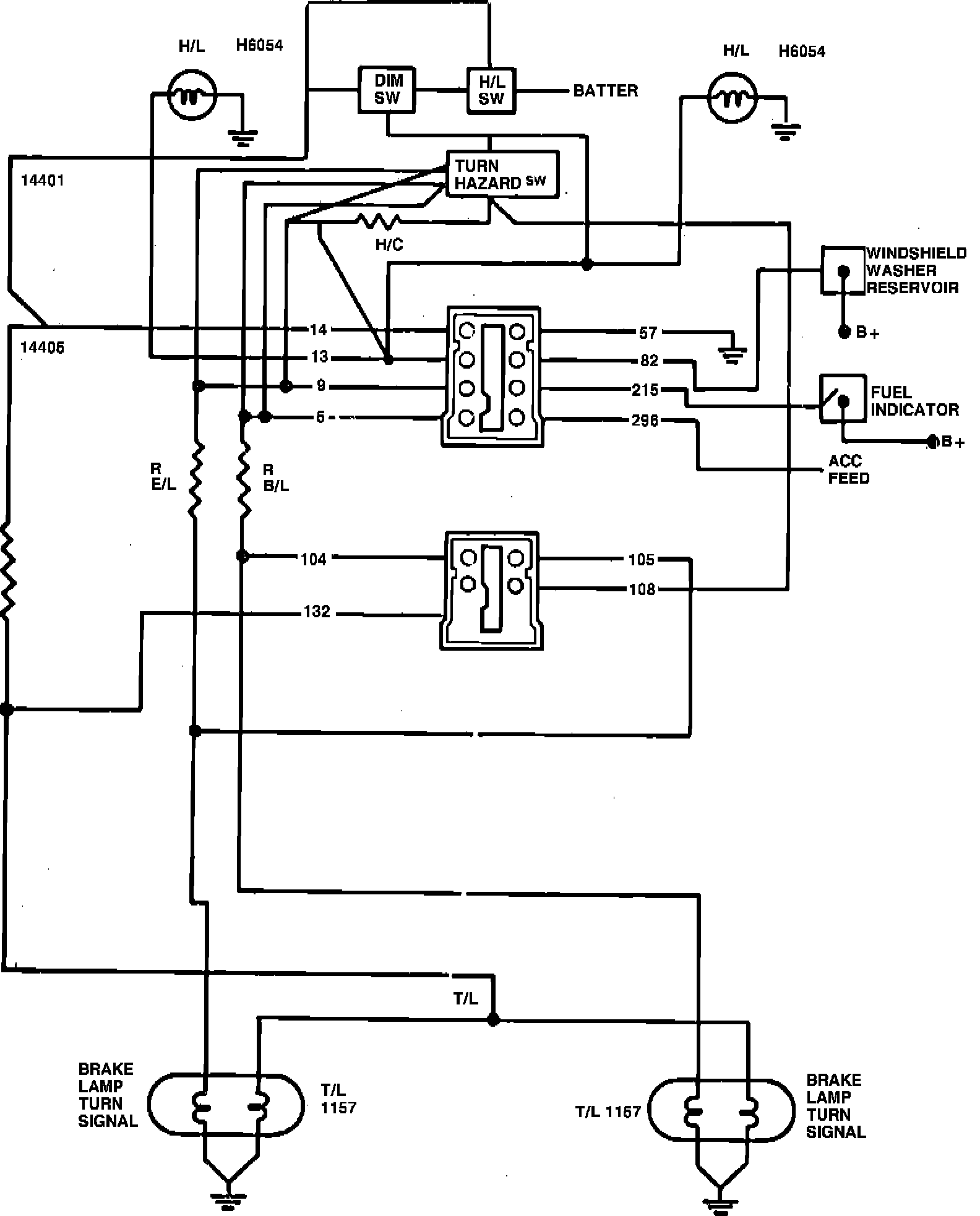

Fig. 3 Graphic display warning indicator wiring diagram. 1982---87 Ford & Mercury Exc. Escort & Lynx (Mustang/Capri & Fairmont/Zephyr sedan shown, typical of other models):

Fig. 5 Graphic display warning indicator wiring diagram. 1982---83 Escort & Lynx exc. base model:
